Description
Surface resistance tester is an instrument which tests the surface resistance of the object. Attach two parallel electrodes of the instrument to the surface of the object to measure the resistance value of the object surface, and judge that the measured object is conductive, static dissipative, insulative. At the same time, the instrument can also measure the surface resistance value of irregular objects, which is suitable for various anti-static fields.
Specifications
Specification | |
Model | 385+ |
Resistance range | 103-1010Ω |
Resistance accuracy | ± one order of magnitude |
Temperature range | 0~50℃ (32~122°F) |
Temperature measuring accuracy | ±2℃/±3.6℉ |
Working condition | ~ 40℃ (32 ~ 104℉) / 0~70% |
Features | |

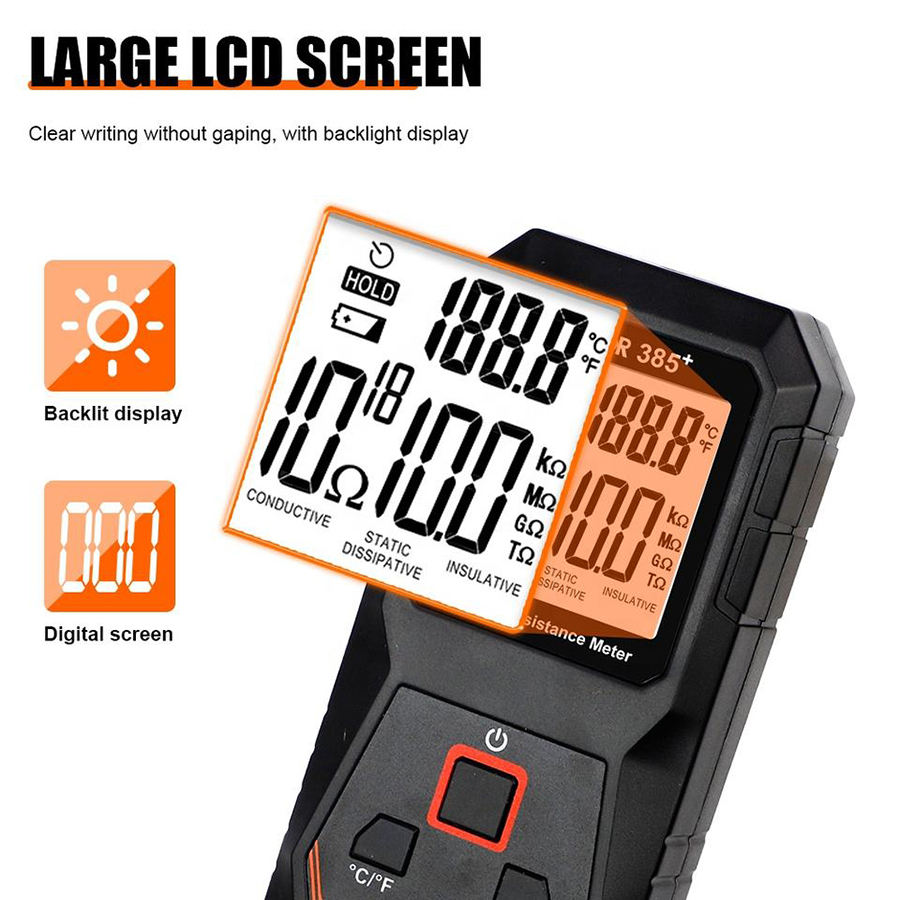

Backlight | √ |
Data hold | √ |
Temperature unit | ℃/℉ convertible |
Auto power off | √ |
Low battery indication | √ |
Auto identfy the measured subject | CONDUCTIVE (103-105Ω ) / STATIC DISSIPATIVE (106-1011Ω) / INSULATIVE(≧1012Ω) |
General Information | |
Power supply | 9V (6F22) Battery |
Product color | Black+Orange |
Product weight | 180g |
Product size | 131*65*35mm |
Standard accessories | pouch,manual,battery,testing line |
