Description

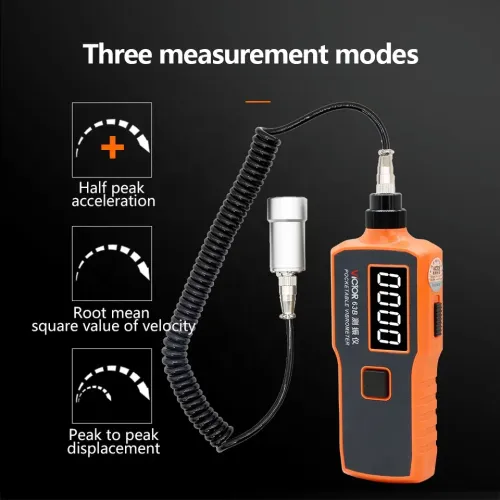

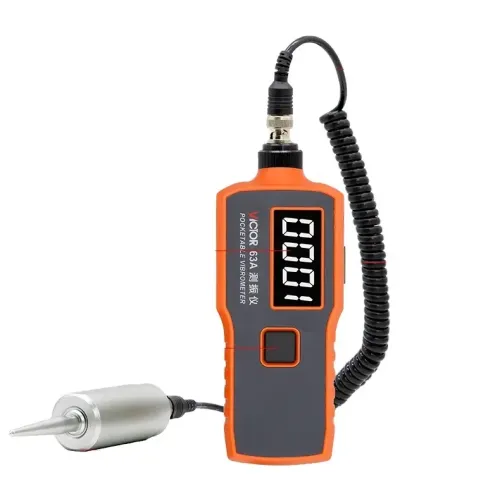

Vibration meter is a kind of integrated, pocketsize instrument for vibration measurement of rotating machinery. With the capability to measure the displacement, velocity and acceleration of the objects easily, the meter can be applied in industry departments such as electric power, petroleum, chemical engineering and metallurgy to meet different demands.
Specifications
|
Specifications |
|||
|
Model |
63 |
63A |
63B |
|
Probe Type |
Built-in probe |
Separate pointy probe |
Separate magnetic probe |
|
Range |
|||
|
Vibration displacement(P-P) |
0~1999μm |
0~1000μm |
0~1999μm |
|
Vibration speed (RMS) |
0~199.9mm/s |
0~71mm/s |
0~199.9mm/s |
|
Vibration acceleration(O-P) |
0~199.9mm/s2 |
— |
0~199.9mm/s2 |
|
Frequency |
|||
|
Vibration displacement(P-P) |
10~200Hz |
12~200Hz |
10~200Hz |
|
Vibration speed (RMS) |
10~500Hz |
12~500Hz |
10~500Hz |
|
Vibration acceleration(O-P) |
10~1000Hz |
— |
10~1000Hz |
|
Accuracy |
±10% |
||
|
Features |
|||
|
Model |
63 |
63A |
63B |
|
Low battery indication |
√ |
√ |
√ |
|
Data hold |
√ |
√ |
√ |
|
Value wave display |
√ |
√ |
√ |
|
Operation condition |
0~40℃/≤80% |
0~40℃/≤80% |
0~40℃/≤80% |
|
General Information |
|||
|
Model |
63 | 63A | 63B |
|
Power supply |
9V 6F22 |
||
|
Product weight |
185×68×30mm |
||
|
Product size |
160g |
||
|
Standard accessories |
Manual, battery, lanyard |
||
