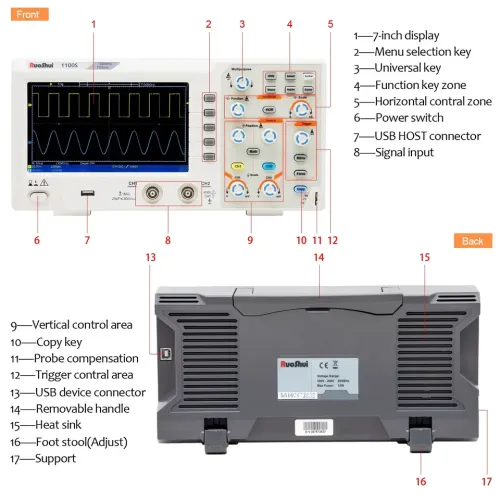

Specifications |
||
|
Model |
1050S |
1100S |
|
Bandwidth |
50MHz |
100MHz |
|
Channel |
2 |
2 |
|
Acquisition |
||
|
Mode |
Normal, Peak detect, Averaging |
|
|
Sampling Rate (real time) |
500 MS/s |
1 GS/s |
|
Input |
||
|
Input coupling |
DC, AC, Ground |
|
|
Input impedance |
1 MΩ±2%, in parallel with 20 pF±5 pF |
|
|
Input coupling |
1X,10X,100X,1000X |
|
|
Max. input voltage |
400V (DC+AC, PK - PK) |
|
|
Channel –channel isolation |
50Hz: 100: 1 / 10MHz: 40: 1 |
|
|
Time delay between channel(typical) |
150ps |
|
|
Bandwidth limit |
Not support |
20 MHz, full bandwidth |
|
Horizontal System |
||
|
Sampling rate range |
0.5 S/s～500 MS/s |
0.5 S/s～1 GS/s |
|
Interpolation |
(Sinx)/x |
|
|
Max record length |
10K |
|
|
Scanning speed (S/div) |
2 ns/div – 1000 s/div, step by 1 – 2 - 5 |
|
|
Sampling rate / relay time accuracy |
±100 ppm |
|
|
Interval(△T) accuracy (DC -100MHz) |
Single: ± (1 interval time+100 ppm×reading+0.6 ns); Average>16: ± (1 interval time +100 ppm×reading+0.4 ns) |
|
|
Vertical system |
||
|
Vertical Resolution (A/D) |
8 bits (2 channels simultaneously) |
|
|
Sensitivity |
5 mV/div～5 V/div |
|
|
Displacement |
±2 V (5 mV/div – 100 mV/div) ±50 V (200 mV/div – 5 V/div) |
|
|
Analog bandwidth |
50MHz |
100MHz |
|
Single bandwidth |
Full bandwidth |
|
|
Low Frequency |
≥10 Hz (at input, AC coupling, -3 dB) |
|
|
Rise time (at input, Typical) |
≤ 7.0 ns |
≤ 3.5 ns |
|
DC gain accuracy |
±3% |
|
|
DC accuracy (average) |
Delta Volts between any two averages of ≥16 waveforms acquired with the same scope setup and ambient conditions (△V): ± (3% reading + 0.05 div) |
|
|
Waveform inverted ON/OFF |
||
|
Measurement |
||
|
Cursor |
△V, △T, △T&△V between cursors, auto cursor |
|
|
Automatic |
Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +Pulse Width, -Pulse Width, +Duty Cycle, -Duty Cycle, Delay A→B , Delay A→B , Cycle RMS, Cursor RMS, Screen Duty, Phase, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count, Area, and Cycle Area. |
|
|
Waveform Math |
＋, －, *, / ,FFT |
|
|
Waveform storage |
16 waveforms |
|
|
Lissajous figure |
Bandwidth: Full bandwidth / Phase difference: ±3 degrees |
|
|
Trigger |
||
|
Trigger level range |
Internal: ±5 div from the screen center |
|
|
Trigger level accuracy (typical) |
Internal: ±0.3 div |
|
|
Trigger displacement |
According to Record length and time base |
|
|
Trigger holdoff range |
100 ns – 10 s |
|
|
50% level setting (typical) |
Input signal frequency ≥ 50 Hz |
|
|
Edge trigger |
slope: Rising, Falling |
|
|
Video Trigger |
Modulation: Support standard NTSC, PAL and SECAM broadcast systems |
|
|
Communication |
USB 2.0 (USB storage） |
|
|
Counter |
Support |
|
|
Display |
7" Colored TFT screen, 800x480 pixels |
|
|
General Information |
||
|
Model |
1050S |
1100S |
|
Power supply |
100 - 240 VACRMS, 50/60 Hz, CAT Ⅱ |
|
|
Product Dimension |
301mm× 152mm×70mm |
|
|
Product weight |
1.1 kg |
|
|
Product color |
White + orange |
|
|
Standard accessories |
Power Cord, Software CD, User Manual, USB cable, Probe, probe adjust. Pouch (Optional) |
|
