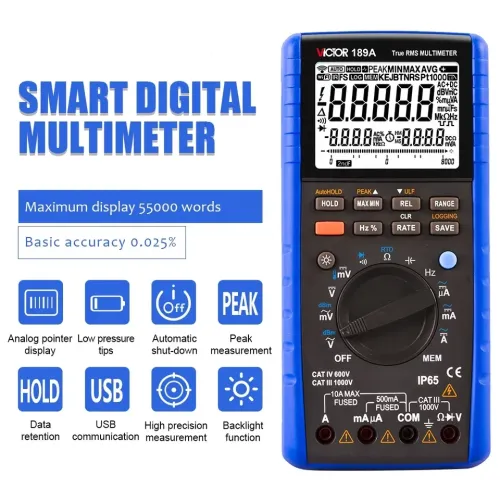

In addition,this instrument has the following features.
* Measurement display: max. 55,000, with a basic accuracy of0.025%.
* Dual-color plastic module enclosure: comply with Class IP65 requirements for dustproof and waterproof protection, so this instrument can be used in a harsh environment.
* Conform to the 600V CAT.IV and 1000V CAT.III safety standards of the Safety Requirements for Electrical Equipment for Measurement, Control and Laboratory Use (IEC 61010-1).
* Protection of current measurement: 10A/1000V & 0.5A/1000V fast-acting fuse.
* Infrared USB communication.
* Range options: manual and automatic.
* Functions for measurement data: DIS_HOLD and AUTO_HOLD.
* PEAK function: 1ms peak sample capture. This instrument is able to capture spike pulses.
* Measurement (dB) of reference impedance: 1-2400Ω.
* Relative value measurement: (REL_%).
* Maximum,Mim imun and average measurement (MAX/MIN/AVG).
* Display rate: 20 times per second (fast) and 5 times per second (slow); simulation bar refresh rate: 20 times per second (fast).
* AC true RMS measurement: 20Hz to 50kHz.
* Low-pass filter: improve the measurement of composite waveforms typically produced by inverters and variable frequency motors.
* Thermocouple measurement: K indexing, with built-in temperature sensor and automatic cold junction compensation; temperature unit: ℃ or ℉.
* ON/OFF measurement: utter a sound when the measured value is less than 50Ω.

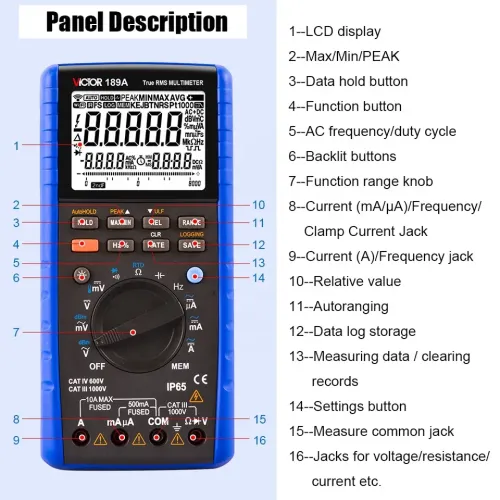

* Large-screen multi-data display: showing the measured values and relevant measurement information at the same time.
* Two easy-to-operate data recording functions: operation recording and manual recording, conducive to the query of recorded data; internal memory: independently store 2,000 (groups of) measurement values.
* Automatic backlight OFF and automatic power OFF.
* Large-screen LCD display with white LED backlight.
* Panel calibration technology: allow calibration without opening the enclosure.

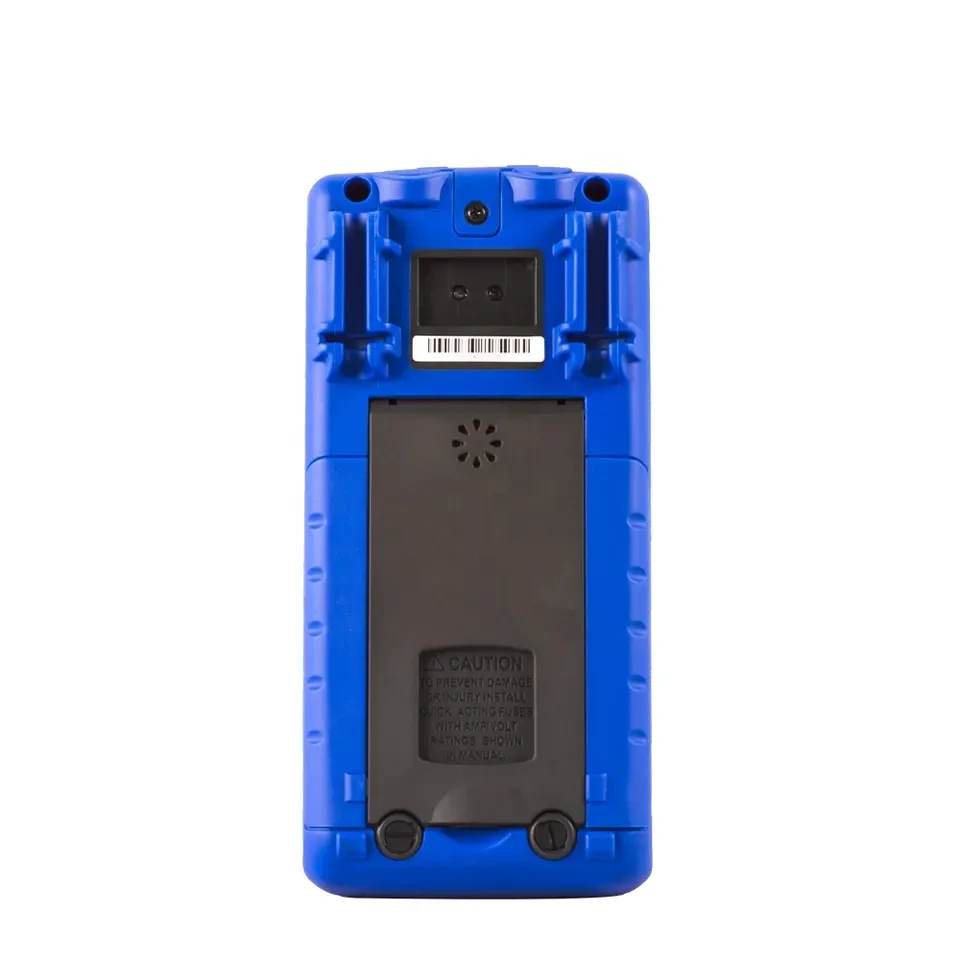

* Battery option: alkaline battery and Ni-Hi battery. The battery compartment door is conducive to the replacement of thebattery and fuse.
* Powerful and user-friendly HMI: for easy access to the stored data, as well as storage, processing and management of data; display form of acquired data: graphic, table, etc.
|
Specification |
||||
|
Model |
Range |
189A |
||
|
DC V |
50mV/500mV/2200mV/5V/50V/500V/1000V |
±（0.03%+5） |
||
|
AC V |
50mV/500mV/5V/50V/500V/1000V |
±（0.7%+30） |
||
|
DC+AC Voltage |
2V/20V/200V/1000V |
±（0.7%+30） |
||
|
DC A |
500uA/5000uA/50mA/500mA/5A/20A |
±（0.15%+10） |
||
|
DC clamp |
50A/500A/2000A |
±（0.5%+30） |
||
|
AC A |
500uA/5000uA/50mA/500mA/5A/20A |
±（0.8%+30） |
||
|
AC clamp |
50A/500A/2000A |
±（0.7%+30） |
||
|
DC+AC current |
200uA/2000uA20mA/200mA/2A/20A/200A/2000A |
±（0.7%+30） |
||
|
Resistance |
500Ω/5kΩ/50kΩ/500kΩ/5MΩ/50MΩ/100MΩ/500MΩ |
±（0.08%+5） |
||
|
Capacitance |
9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF |
±（1%+5） |
||
|
Frequency |
9.9999Hz/99.999Hz/999.99Hz/9.9999KHz/999.99KHz/9.9999Mhz/ |
±（0.02%+4） |
||
|
Thermocouple |
R 0°C~1767°C / 32°F~3212°F |
±（0.5%+1） |
||
|
S 0°C~1767°C / 32°F~3212°F |
±（0.5%+1） |
|||
|
K -200.0°C~1372.0°C / -328.0°F~2501.6°F |
±（0.5%+1） |
|||
|
E -200.0°C~720.0°C / -328.0°F~1328.0°F |
±（0.5%+1） |
|||
|
J -200.0°C~950.0°C / -328.0°F~1742.0°F |
±（0.5%+1） |
|||
|
T -250.0°C~400.0°C / -418.0°F~752.0°F |
±（0.5%+1） |
|||
|
N -200.0°C~1300.0°C / -328.0°F~2372.0°F |
±（0.5%+1） |
|||
|
B 600°C~1820°C / 1112°F~3308°F |
±（0.5%+1） |
|||
|
RTD |
Pt100 -200.0°C~800.0°C / -328.0°F～1472.0°F |
±（0.5%+0.5） |
||
|
Pt1000 -200.0°C～630.0°C / -328.0°F～1166.0°F |
±（0.5%+0.5） |
|||
|
Pulse width |
199.99ms / 1999.9ms |
±（0.2%+3） |
||
|
Duty cycle |
0.1%～99.9% |
±（0.3%） |
||
|
Features |
||
|
Model |
189A |
|
|
True RMS |
√ |
|
|
Diode and continuity test |
√ |
|
|
Data hold, auto hold, peak hold |
√ |
|
|
dBm measurement |
√ |
|
|
Low pass filter |
√ |
|
|
MAX/MIN/AVG |
√ |
|
|
Relative Value Measurement |
√ |
|
|
AC+DC measurement |
√ |
|
|
8 Thermocouple temperature |
√ |
|
|
The reference junction compensation |
√ |
|
|
Built-in real-time clock |
√ |
|
|
SCPI |
√ |
|
|
Auto power-off |
√ | |
|
LCD with backlight |
√ | |
|
Panel calibration |
√ | |
|
Duty cycle & Pulse width |
√ | |
|
The measurement rate |
Fast/Slow/Smooth |
|
|
Data recording |
Up to 1000 groups |
|
|
Max Display |
55000 |
|
|
Analog Bar graph |
The fastest rate: 20 times / sec |
|
|
Operation Way |
Auto / Manual Range |
|
|
Bandwidth |
50kHz |
|
|
Input impedance |
10MΩ |
|
|
USB interface |
Data analyze on software |
|
|
General Information |
|||
|
Model |
189A |
||
|
Power supply |
AAA,1.5V*4 |
||
|
Product weight |
500g |
||
|
Product size |
205mm×95mm×42mm |
||
|
Standard accessories |
Temperature probe, pouch, test leads, battery, manual, USB cable, software CD, calibration report |
||
