Name: Transformation Ratio Tester
Brand: VICTOR & RuoShui
SKU: 9100A 9100B 9100C 9100D
Availability: InStock
Rating: 5 (1 reviews)

Home > Electronic Power Testers > Transformation Ratio Test...

Description Specifications Video DOWNLOAD Review

Description

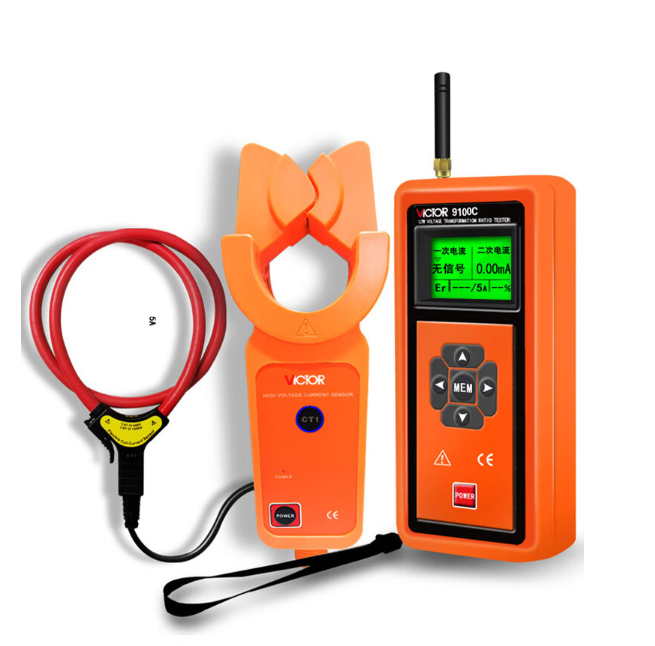

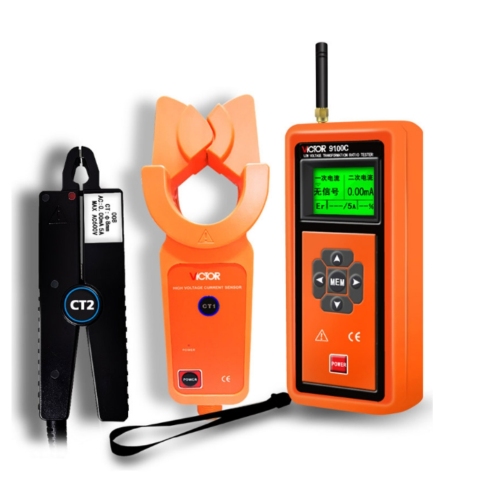

This series Low Voltage Current Transducer Transformation Ratio Tester can be widely used in the power system of 380/220V, can be convenient and fast realize online field test for current transformer of the metering device, and the measurement of current and leakage current value of the 380/220V power system, realize the transformer ratio, angle error, phase and polarity can be accurately tested without power cut. It provides a safe, accurate, and convenient new design electric power instrument for the electric power inspector. Its application will certainly bring significant economic and social benefits to power enterprises in electricity management.

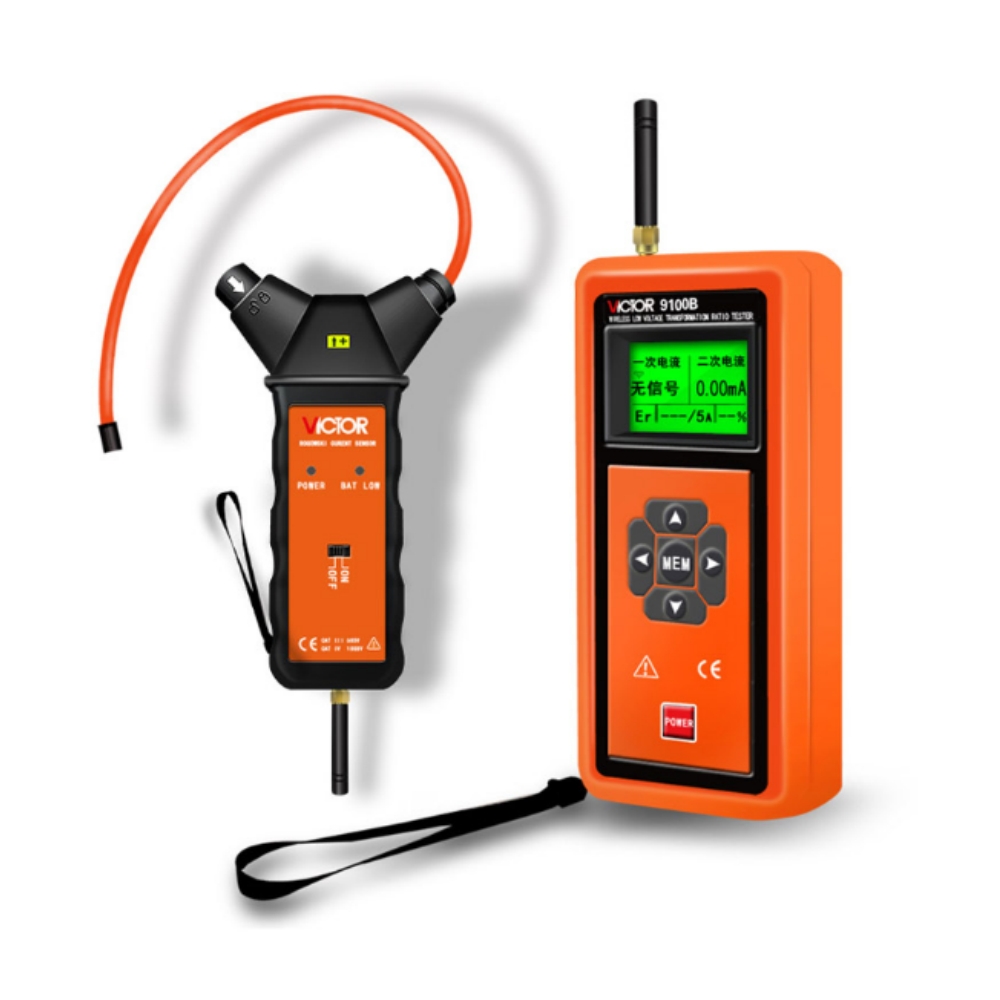

Among this Low Voltage Wireless Current Transducer Transformation Ratio Tester, primary current clamp adopt wireless transmit type, the transmission distance 100 meters, more convenient for usage.

Specifications

Specification
Model	9100A	9100B	9100C	9100D
Function	Primary circuit current Secondary circuit current Transformation ratio Angle error Polarity test Phase test (For Low voltage current transducer, transformer)	Primary circuit current Secondary circuit current Transformation ratio Polarity test *Phase test (For Low voltage current transducer, transformer)	Primary circuit current Secondary circuit current Transformation ratio Polarity test *Phase test (For High & Low voltage current transducer, transformer)	Primary circuit current Secondary circuit current Transformation ratio Angle error Polarity test Phase test (For High & Low voltage current transducer, transformer)
Clamp connection	Primary clamp, with wire Secondary clamp, 2M wire	Primary clamp, wireless Secondary clamp, 2M wire	Primary clamp, wireless Secondary clamp, 2M wire	Primary clamp, wireless Flexible clamp, with wire Secondary clamp, 2M wire
Primary current	0.0A～3000A resolution:0.1A accuracy:±1%	0.0A～3000A resolution:0.1A accuracy:±1%	0.0A～800A resolution:0.1A accuracy:±0.5%	0.0A～800A resolution:0.1A accuracy:±0.5%
Primary flexible current	---	---	---	0.0A～3000A resolution:0.1A accuracy:±1%
Secondary current	0.00mA～5A resolution:0.01mA accuracy:±0.5%	0.00mA～5A resolution:0.01mA accuracy:±0.5%	0.00mA～5A resolution:0.01mA accuracy:±0.5%	0.00mA～5A resolution:0.01mA accuracy:±0.5%
Transformation ratio	1～500 resolution:0.1	1～500 resolution:0.1	1～500 resolution:0.1	1～500 resolution:0.1
Angle error	0～360° resolution：1° accuracy：±3°	---	---	0～360° resolution：1° accuracy：±3°
Sampling speed	3 times/s	3 times/s	3 times/s	3 times/s

Features
Model	9100A	9100B	9100C	9100D
Data storage	3000 groups	3000 groups	3000 groups	3000 groups
Date hold	√	√	√	√
Overflow indication	√	√	√	√
Auto power off	√	√	√	√
LCD size	44*27mm	44*27mm	44*27mm	44*27mm
Backlight	√	√	√	√
Low battery indication	√	√	√	√
Interface	---	---	USB	USB

General Information
Model	9100A	9100B	9100C	9100D
Power supply (Main unit)	1.5V AAA*4	1.5V AAA*4	1.5V AAA*4	1.5V AAA*4
Power supply (Current clamp)	---	9V 6F22 *1	1.5V AAA*4	1.5V AAA*4
Product size (primary current clamp)	200mm×245mm×13mm φ200mm	200mm×370mm×40mm φ200mm	76mm×255mm×31mm φ48mm	76mm×255mm×31mm φ48mm
Product size (flexible current clamp)	---	---	---	200mm×245mm×13mm φ200mm
Product size(secondary current clamp)	137mm×40mm×19.5mm φ8mm	137mm×40mm×19.5mm φ8mm	137mm×40mm×19.5mm φ8mm	137mm×40mm×19.5mm φ8mm
Product weight	1000g	1000g	5kg	5kg
Insulation rod size	---	---	φ32mm,1m/pc x5pcs	φ32mm,1m/pc x5pcs

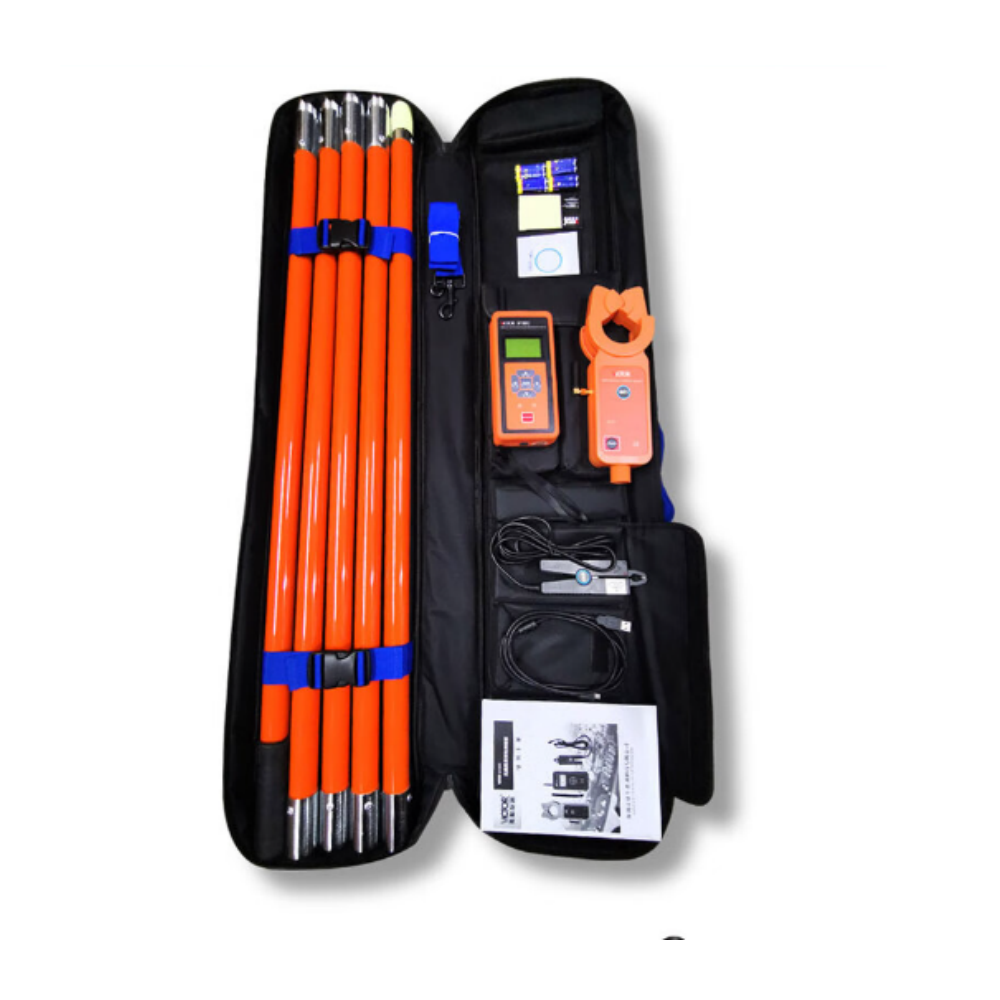

Standard accessories	Main unit x1,Clamp x 2,Batteries x 4,Manual x 1,Pouch x 1	Main unit x1,Clamp x 2,Battery x 4.Manual x 1,Pouch x 1	Main unit x1,Clamp x 2,Insulation rod (1m) x 5,Battery x 8,Manual x 1,Pouch x 1,USB cable x 1,Software CD x1	Main unit x1,Clamp x 3,Insulation rod (1m) x 5,Battery x 8,Manual x 1,Pouch x 1,USB cable x 1,Software CD x1
