Specifications |
||
|
Model |
328A |
328B |
|

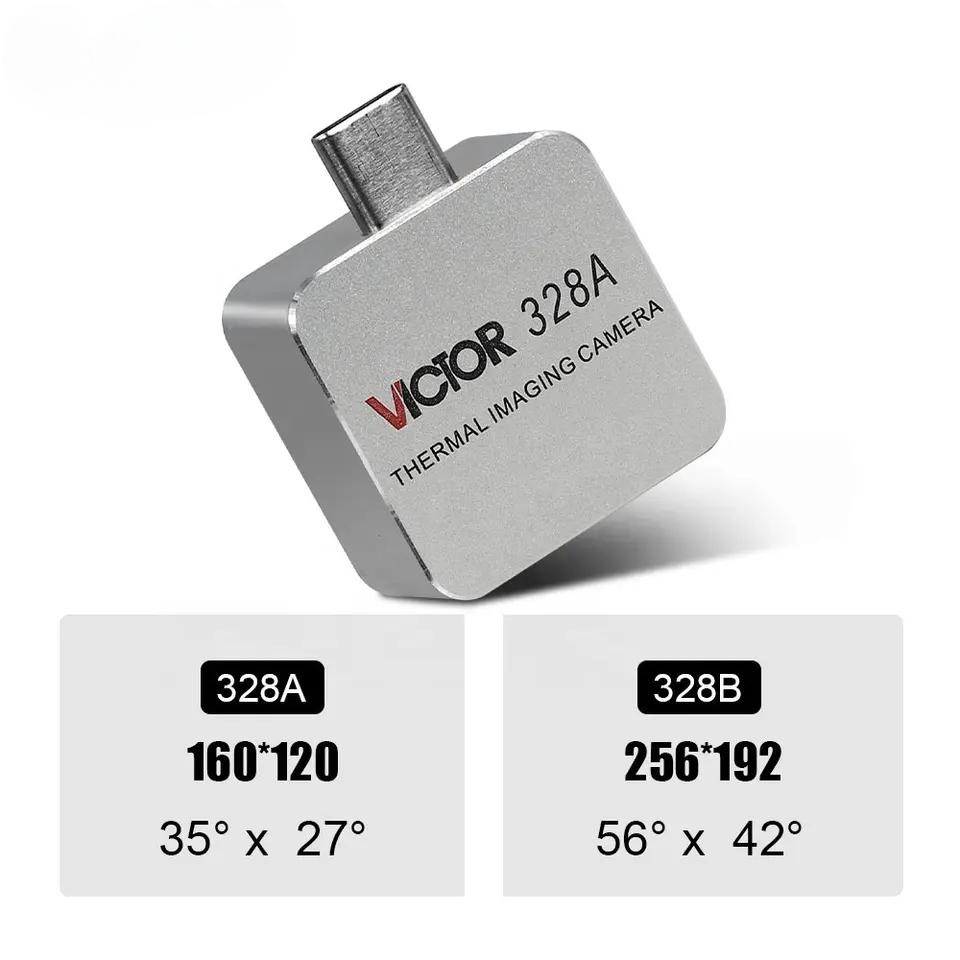

Resolution |
160x120 |
256x192 |
|
FOV |
35°X27° |
56° x 42° |
|
Temperature range |
-15℃～600℃ |
|
|
Accuracy |
± 2 ° C or ± 2% |
|
|
Wavelength |
8-14μm |
|
|
Frame rate |
25Hz |
|
|
NETD |
＜50mK @25℃ |
|
|
Lens |
3.2mm |
|
|
Features |
|
|
Model |
328A 328B |
|
Temperature mode |
Highest, lowest, central point and area temperature |
|
Color palette |
Iron, white hot, black hot, rainbow, red hot, cold blue |
|
Temperature unit |
Celsius (°C), Fahrenheit (°F), Kelvin (K) |
|
User-defined temperature range display |
√ |
|
Sound recording |
Selectable |
|
Photos and videos recording |
√ |
|
With APP for data analysis and control |
√ |
|
Settable alarm |
√ |
|
Language |
English |
|
Working temperature |
-10°C - 75°C |
|
Storage temperature |
-45°C - 85°C |
|
IP rating |
IP54 |
|
General Information |
|
|
Model |
328A 328B |
|
Power supply |
USB-type C |
|
Product color |
Black + silver |
|

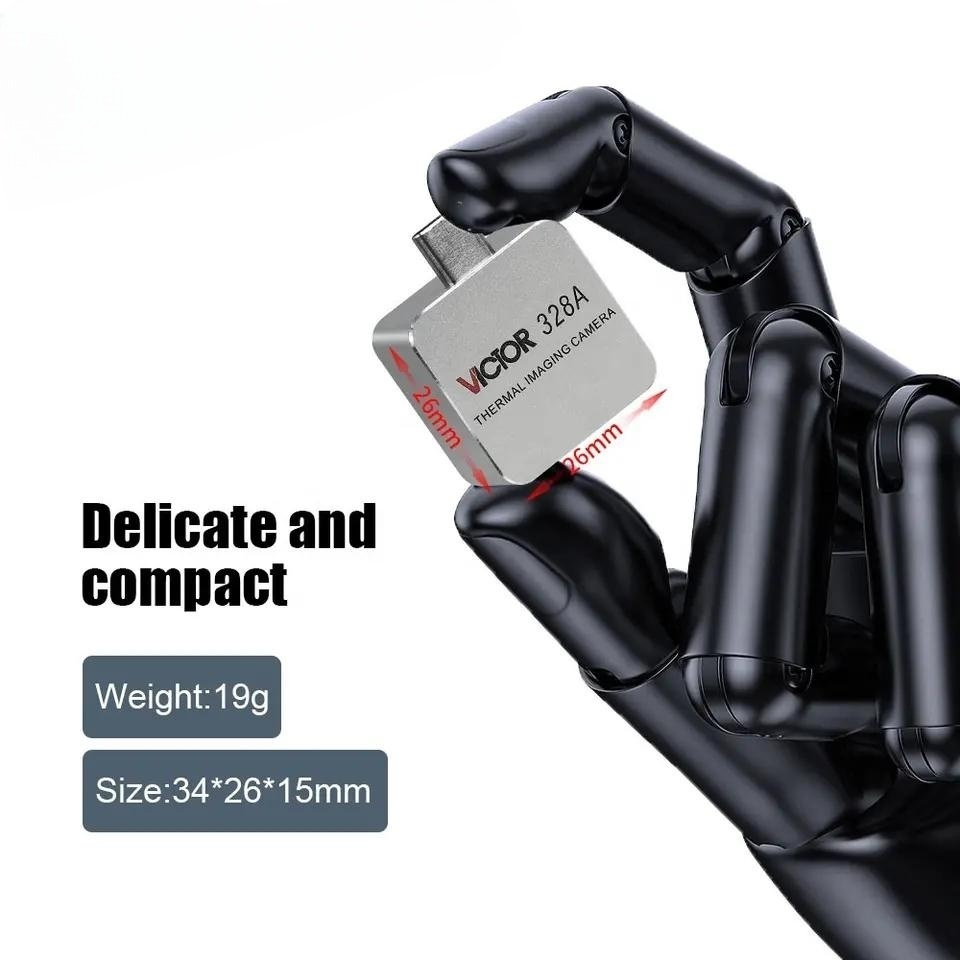

Product size |
34mm x 26.5mm x 15mm |
|
Product weight |
19g |
|

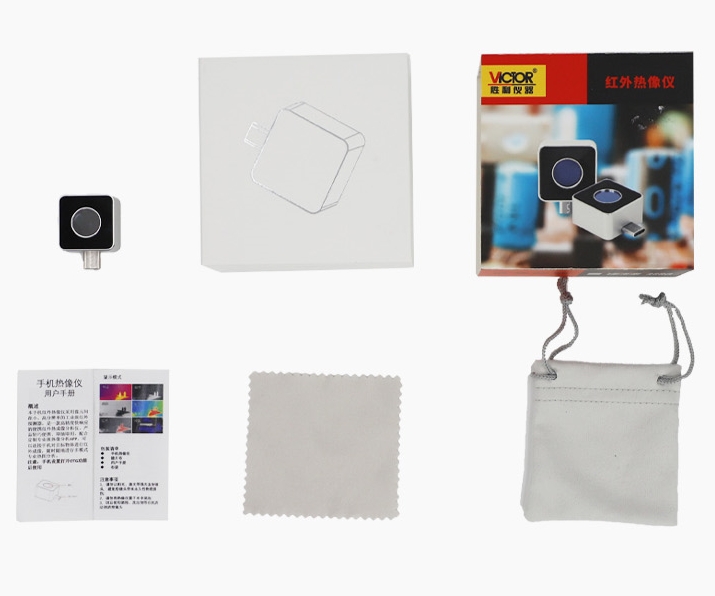

Standard accessories |
Manual, cleaning cloth, pouch |
328A 328B User's Manual
