Specifications |
||
|
Function |
824 |
824L |
|
Range |
30~130 dBA，30~130dBC |
|
|
Manual ranges |
30-80dB, 50-100dB, 60-110dB, 80-130dB |
|
|
Resolution |
0.1dB |
|
|
Accuracy |
±1.5dB (94dB @1KHz) |
|
|
Sampling rate |
2times/s |
|
|
Frequency response |
31.5Hz ~8.5KHz |
|
|
Frequency weighting |
A&C |
|
|
Time weighing |
Fast / Slow |
|
|
Microphone |
1/2-inch polarization capacitance microphone |
|
|
Working condition |
0-40℃,10-80%RH |
|
|
Storage condition |
-10~60℃, 10-70%RH |
|
|
Features |
824 |
824L |
|
Max value |
√ |
√ |
|
Over range indication |
√ |
√ |
|
Low battery indication |
√ |
√ |
|
Bar graph display |
√ |
√ |
|
AC/DC output |
√ |
√ |
|
With tripod mounting |
√ |
√ |
|
Blue tooth interface |
--- |
√ |
|
View data on APP |
--- |
√ |
|
Display |
5 digits with backlight |
5 digits with backlight |
|
General Information |
||
|
Model |
824 |
824L |
|
Power Supply |
9V,6F22 or DC 6V 100mA adapter |
|
|
Product Color |
Black + Orange |
|
|
Product Size |
256×70×35mm |
|
|
Product Weight |
210g |
|
|

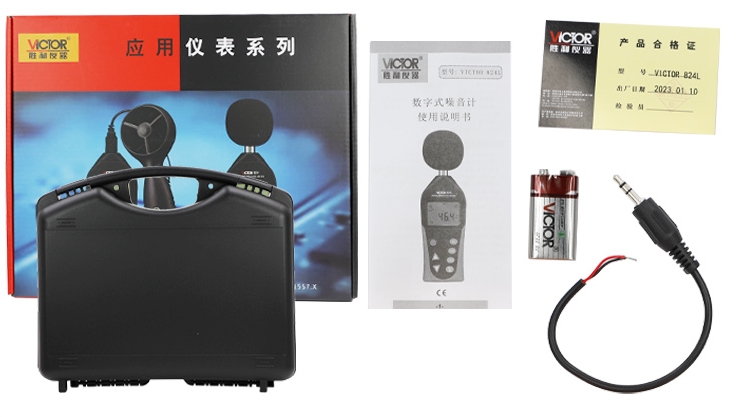

Standard Accessories |
Manual, battery, tool case, DC output cable |
|
824 User's Manual
