Specifications |
||
|
Model |
469C |
469D |
|
Rated voltage |
AC250V |
AC250V |
|
Accuracy |
±10% |
±10% |
|
Frequency range |
50/60Hz |
50/60Hz |
|
Over voltage protection |
AC/DC300V |
AC/DC300V |
|
Power consumption |
3mA |
3mA |
|
Leakage protection current |
30mA |
30mA |
|

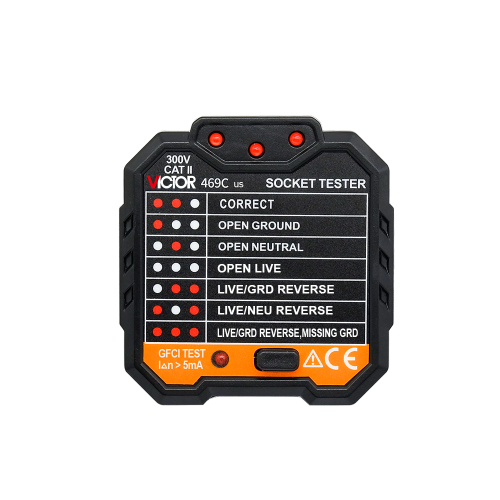

Indication way |
LEDs |
LED+LCD display voltage value |
|
Open ground |
√ |
√ |
|
Open neutral |
√ |
√ |
|
Open live |
√ |
√ |
|
Live/ground rever se |
√ |
√ |
|
Live/neutral rever se |
√ |
√ |
|
Live/ground rever se, missing ground |
√ |
√ |
|
Correct wiring |
√ |
√ |
|
General Information |
||
|
Model |
469C |
469D |
|
Working voltage |
220V |
220V |
|
Product size |
65x62x42mm |
65x62x42mm |
|
Product weight |
50g |
50g |
|
Standard accessories |
Manual |
Manual |
