Description

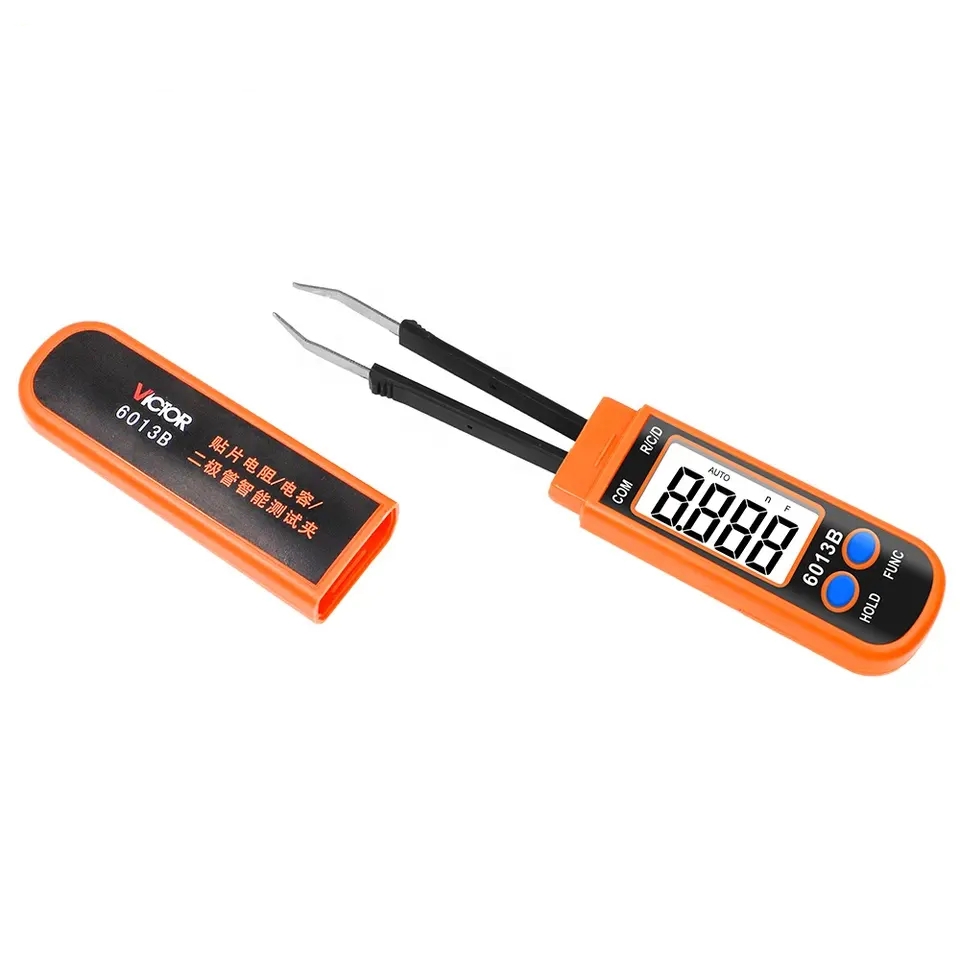

This is a deft hand-hold SMD instrument, which can automatically identify resistor, capacitor and diode and measure accurately.Design of the instrument is consistent with IEC1010-I CAT II safety standards, and conformed to safety rules of the EuropeanCommunity.
Appearance design of the instrument is nice-looking, provided with solid structure, convenient use and accurate measurement. Users are expected to read the instruction manual carefully before use.
Appearance design of the instrument is nice-looking, provided with solid structure, convenient use and accurate measurement. Users are expected to read the instruction manual carefully before use.
Specifications
Specifications |
|||
Function |
Range |
Resolution |
Accuracy |
Resistance |
300Ω/3KΩ/30KΩ/300KΩ |
± (1.0%+5) |
0.1Ω |
3MΩ/30MΩ |
± (2.0%+5) |
||
Capacitance |
3nF/30nF/300nF/3μF/30μF/300μF |
± (3.0%+5) |
0.1nF |
3mF/30mF |
± (5.0%+5) |
||
Diode |
Open circuit voltage: 2.8V, testing current:1mA |

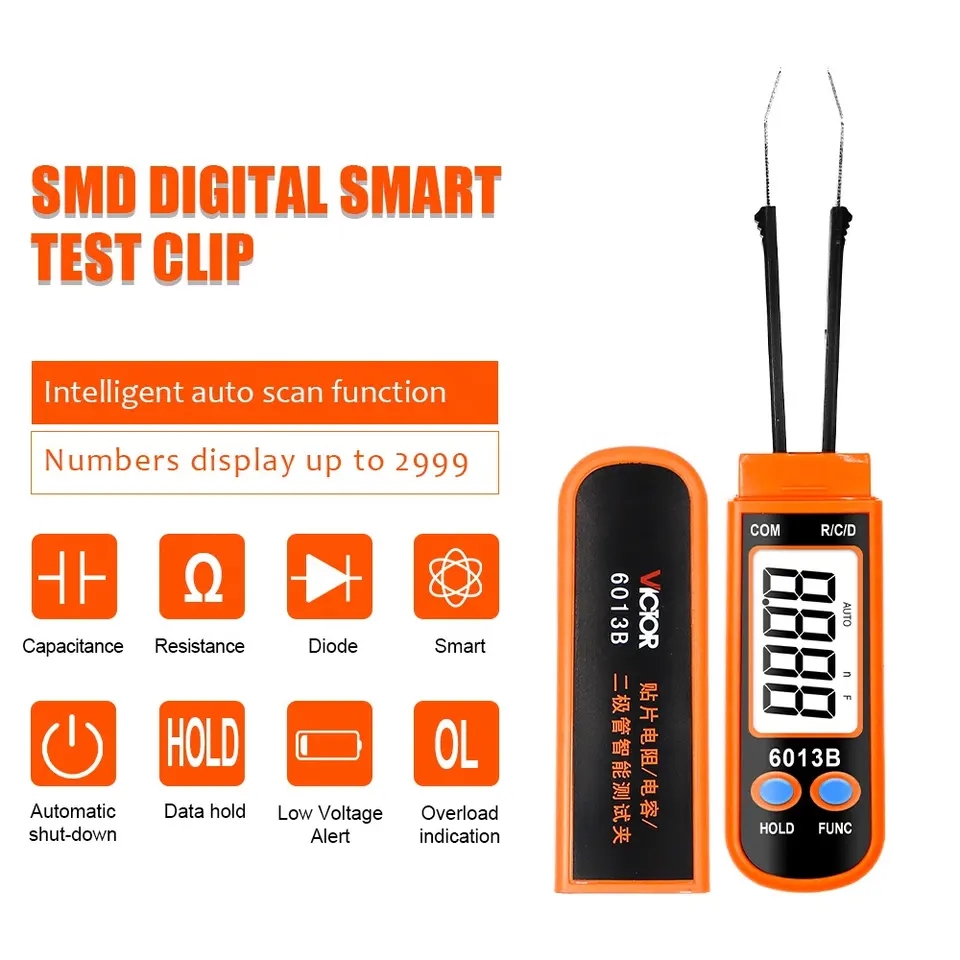

Features |
||
Model |
6013B |
|
Low battery indication |
√ |
|
Auto power off |
√ |
|
Automatic resistor/capacitor/diode scanning |
√ |
|
Data Hold |
√ |
|
Manual select test mode |
√ |
|
Max. display |
2999 |
|
Sampling rate |
3 times/s |
|
Over range indication |
LCD “0L” |
General Information |
|
Model |
6013B |
Power Supply |
3V, CR2032 |
Product color |
Black + orange |
Product weight |
175×34×18.5mm |
Product size |
68g |

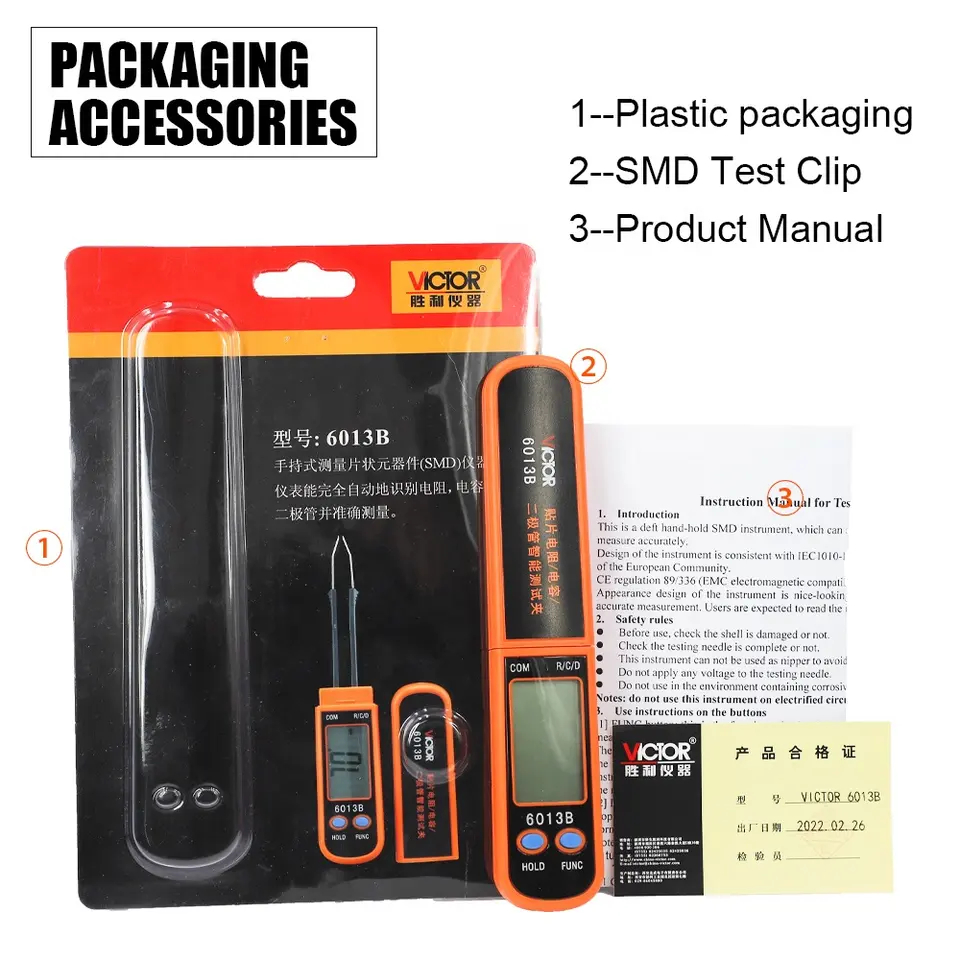

Standard accessories |
battery, manual |
