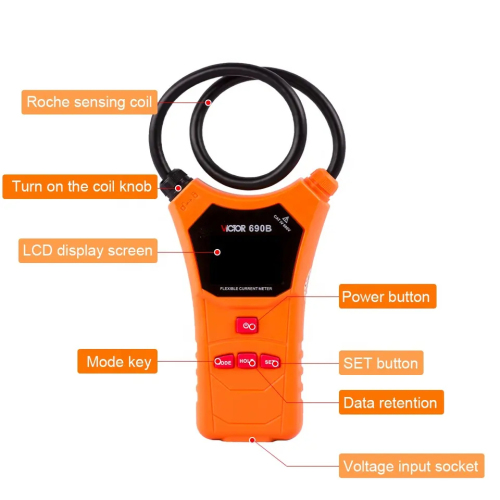

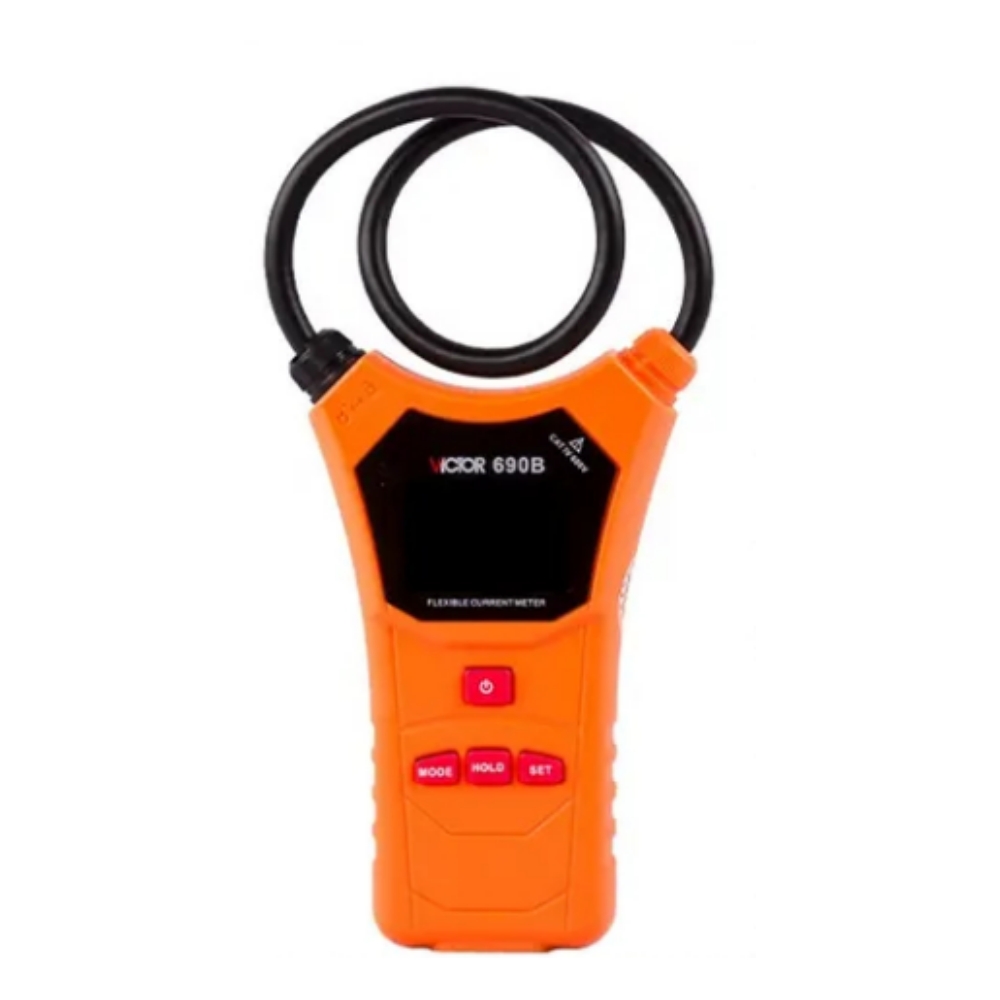

Name: Rogowski Coil Flexible Current Meter
Brand: VICTOR & RuoShui
SKU: 690A 690B
Availability: InStock
Rating: 5 (1 reviews)

Home > Electrical Measurement Instruments > Leakage Current Clamp Met...

Description Specifications Video DOWNLOAD Review

Description

The flexible current clamp meter is designed and manufactured for field test AC high current and leakage current. It has the characteristics of high precision, good linearity and anti-interference ability. It can replace conventional clamp meter and large diameter clamp meter to measure high current leakage current. Widely used in electric power, communications, meteorology, railways, oil fields, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields. It is especially suitable for current testing in industrial environments where the signal is severely distorted, such as dense line, transformer wall-to-wall core current test, thick wire cable test, relay protection, Silicon-controlled rectifier, variable frequency speed regulation, semiconductor switch, power electronic conversion equipment, arc welding, etc.

Flexible current sensor, which is called Rogowski Current Coil, using advanced Rockwell coil

technology, it is a ring coil that is evenly wound on non-ferromagnetic materials. It has no hysteresis effect, no magnetic saturation, high linearity and strong anti-interference ability. The output signal is the current-to-time differential. By integrating the output voltage signal, the input current can be truly restored. The measured current range can be from milliampere to tens of thousands of amps. The flexible current clamp coil part has no exposed metal conductor, non-contact measurement, safe and fast; its small size, light weight, beautiful appearance, soft and flexible, suitable for narrow environment and the place of dense lines; high accuracy, reliability, responsive bandwidth, the user can customize the length of the coil according to the needs.

The meter has alarm value setting and alarm indication function, and has functions of reading, saving historical data, etc. The instrument also has functions such as data retention and data storage. It is easy to use and is an indispensable tool for electrical safety testing.

Specifications

Specifications
Model	690A	609B
Function	AC current test Leakage current test	AC current test, Leakage current test Voltage test
Measuring range	0A～10000A	0A～10000A
Resolution	0.1A	1mA
Accuracy	±2%+5	±2%+5
Voltage range	---	AC750V / DC1000V
Voltage accuracy	---	AC:±1.5%±3 / DC: ±1.5%±
Voltage resolution	---	0.1V
Sampling speed	2times/S	2times/S
Insulation resistance	More than 100M（1kV）	More than 100M（1kV）

Features
Model	690A	609B
Data storage	500 groups	500 groups
Data hold	√	√
Overflow indication	√	√
Auto power off	√	√
Backlight	√	√
Low battery indication	√	√
Clamp size	φ150mm	φ150mm
Coil length	470mm	470mm
Coil diameter	φ8mm	φ8mm
LCD size	45x28mm	45x28mm
Working condition	(-10～40)℃, < 80%Rh	(-10～40)℃, < 80%Rh
Storage condition	(-10～60)℃,< 70%Rh	(-10～60)℃,< 70%Rh

General Information
Model	690A / 690B
Power supply	1.5V AAA x 3
Product size	151mmx100mmx35mm
Product weight	220g
Standard accessories	Battery, manual, test leads (for 690B)
