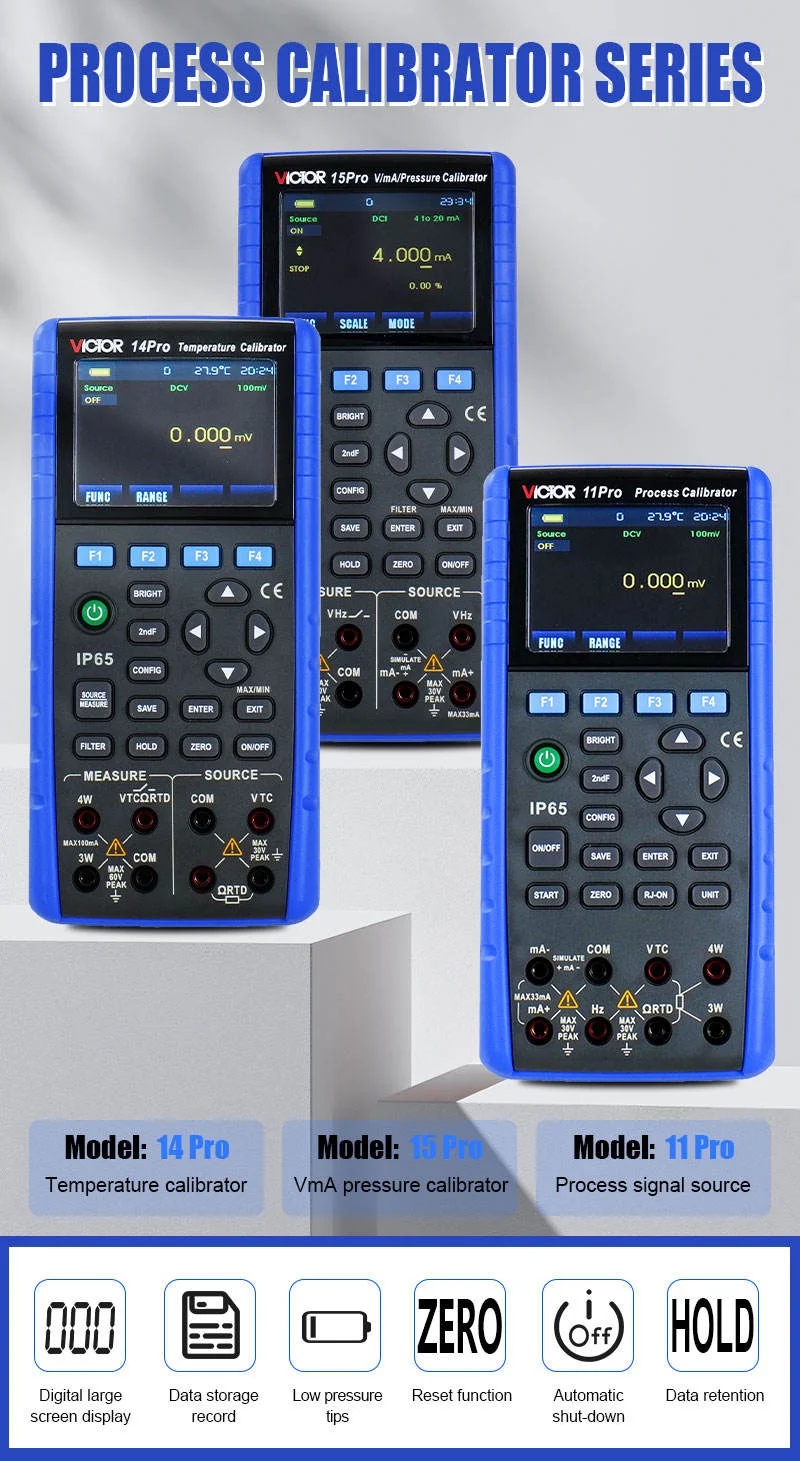

Process Calibrators Series

Model-Specific Core Capabilities

• VICOR 15 Pro – mA / V / Pressure Calibrator
  Ideal for loop calibration, valve positioning, and pressure transmitter testing.

• VICOR 14 Pro – Temperature Calibrator
  Designed for RTD, thermocouple, and temperature sensor simulation & measurement.

• VICOR 11 Pro – Process Signal Source
  Dedicated precision signal source for testing and troubleshooting control loops.

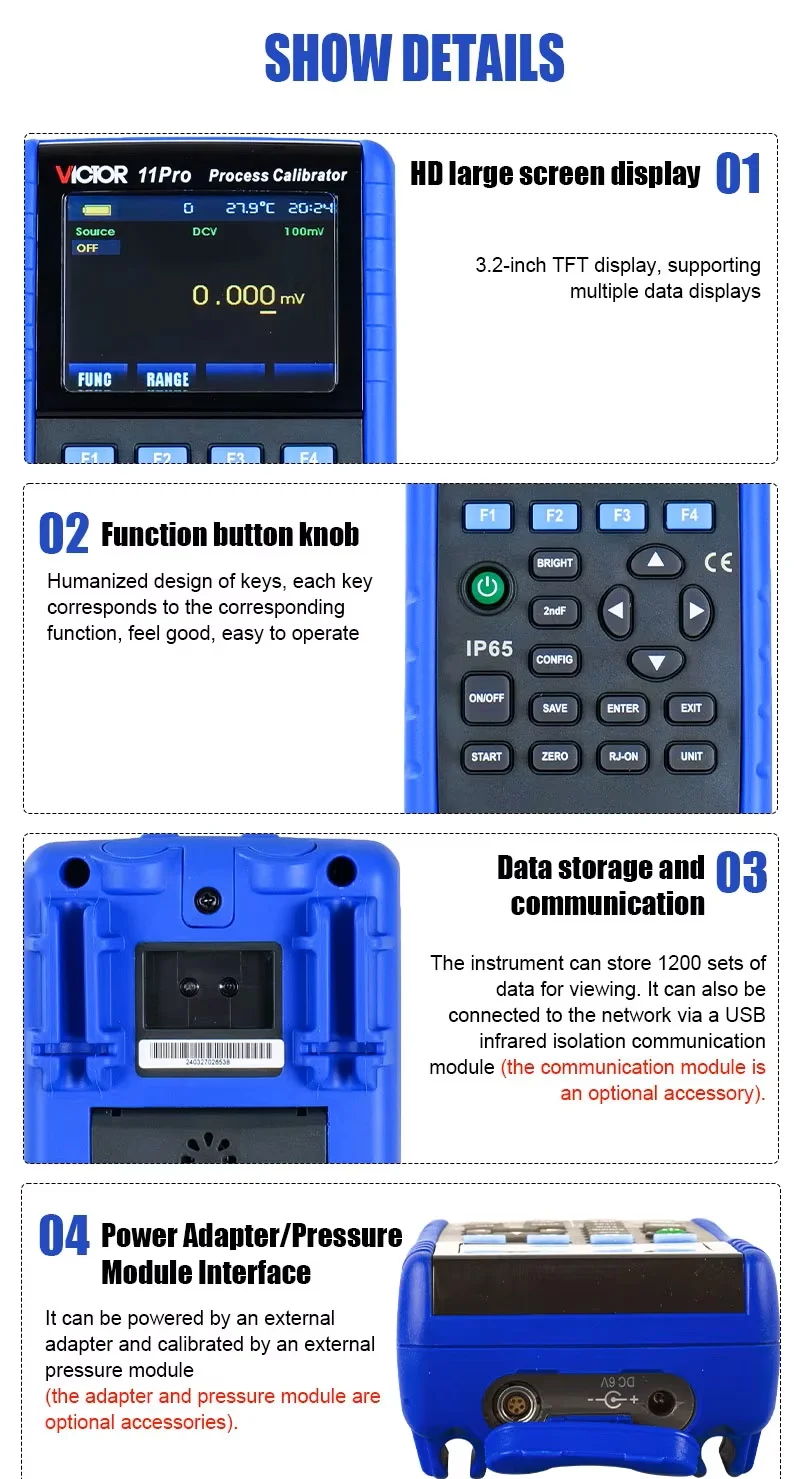

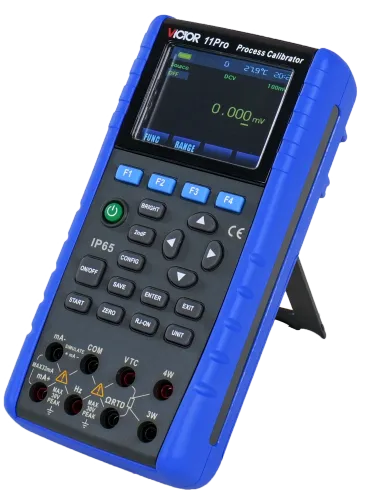

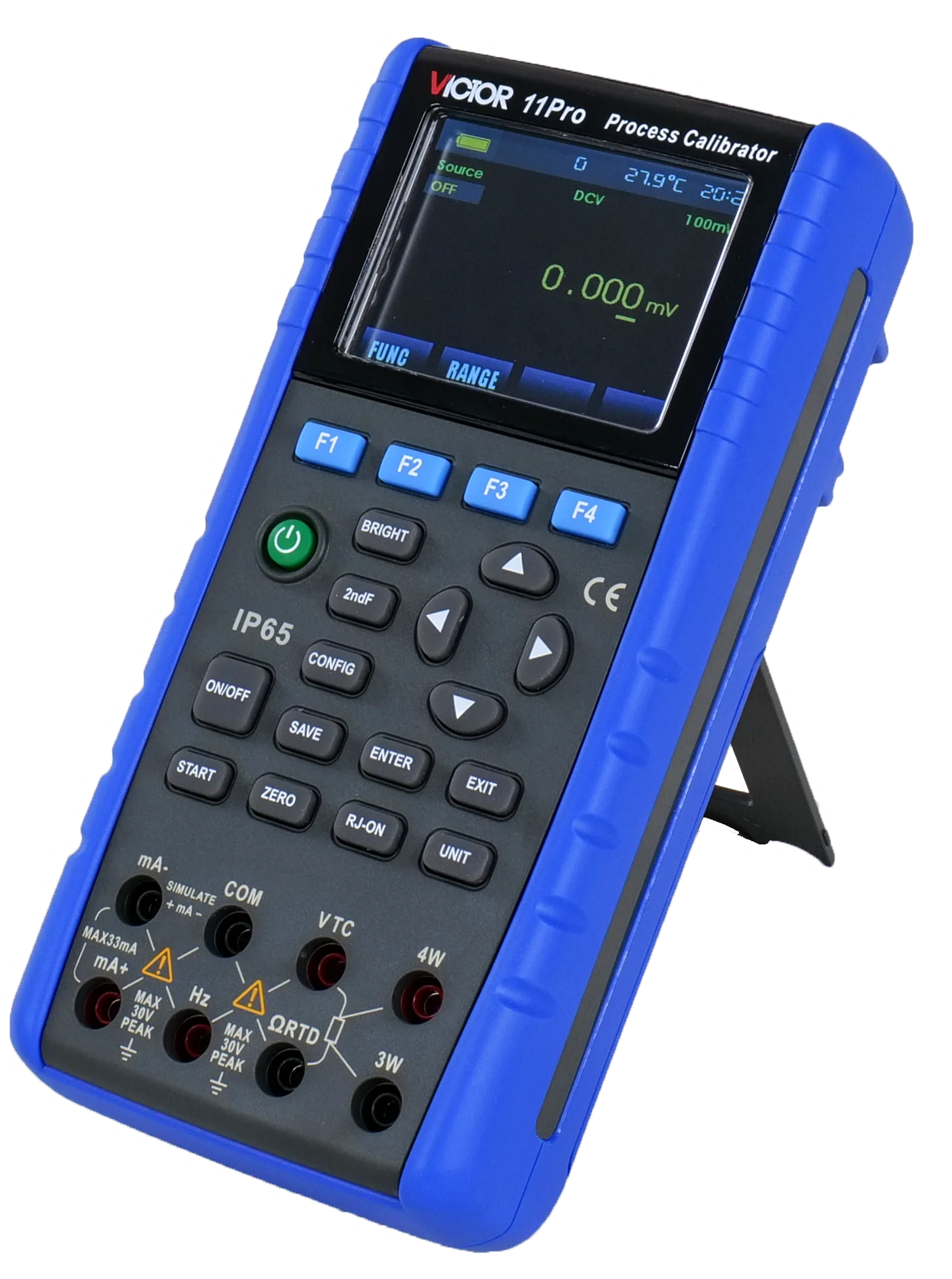

  VICOR 11 Pro – Process Signal Source

  Core Positioning: Precision signal source for loop testing & troubleshooting

  • Dedicated signal source – Designed specifically for sourcing process signals, not measuring

  • 4–20 mA sourcing – Stable, adjustable current output for transmitter and valve testing

  • mV output capability – 100 mV range shown, suitable for low-voltage device simulation

  • Multi-channel independent output – F1, F2, F3, F4 channels (0.000 mV each) for parallel signal tasks

  • WIGGLE function – Automatic step/ramp output to test loop response

  • Large digital display – Clear readout of sourced values

  • IP65 protection – Dust-tight and water-jet resistant for field environments

  • Data storage record – Save output configurations for repeatable testing

  • Reset function – Quick return to default settings

  • Auto shut-down – Battery saving for long-duration field work

  • Low pressure tips – Alerts for unstable or low input conditions

  • Compact handheld design – Easy to carry and operate on-site

  ---

  VICOR 14 Pro – Temperature Calibrator

  Core Positioning: Temperature sensor simulation & measurement for RTD/thermocouple

  • Temperature-specific calibrator – Optimized for °C readout and simulation (21.9°C shown)

  • Source & measure capability – Both generate and read temperature signals

  • 100 mV range – Supports low-voltage thermocouple signals

  • Multi-channel display – F1–F4 (0.000 mV each) for multiple sensor inputs or reference points

  • High accuracy temperature reading – Direct °C display for RTD and thermocouple types

  • WIGGLE function – Ramp output to test temperature controller response

  • ZERO function – Null offset for cold junction compensation

  • HOLD function – Freeze display reading for recording

  • FILTER function – Smooth unstable temperature signals

  • IP65 rated – Reliable in dusty or wet industrial environments

  • Data storage record – Log temperature measurements for compliance reporting

  • Auto shut-down – Preserve battery during extended calibrations

  • Low pressure tips – Notifies unstable sensor conditions

  • Reset function – Instant default configuration restore

  ---

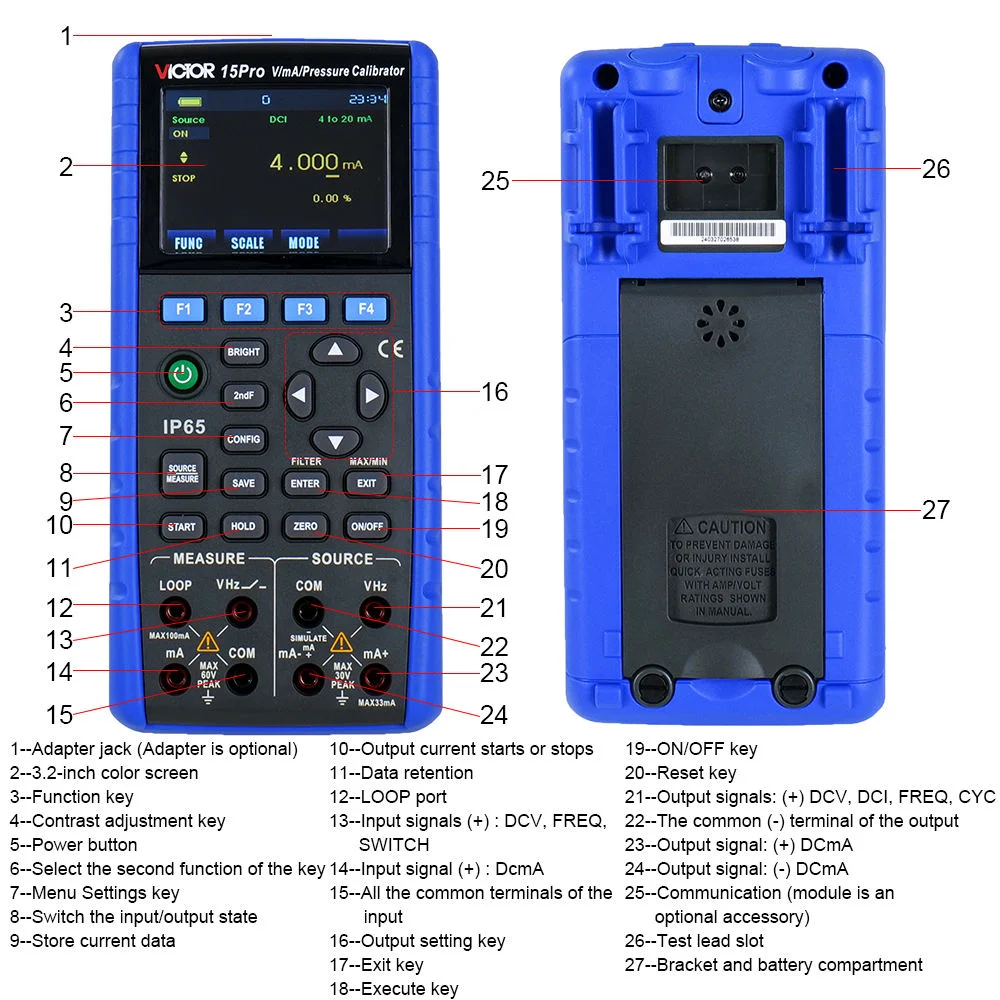

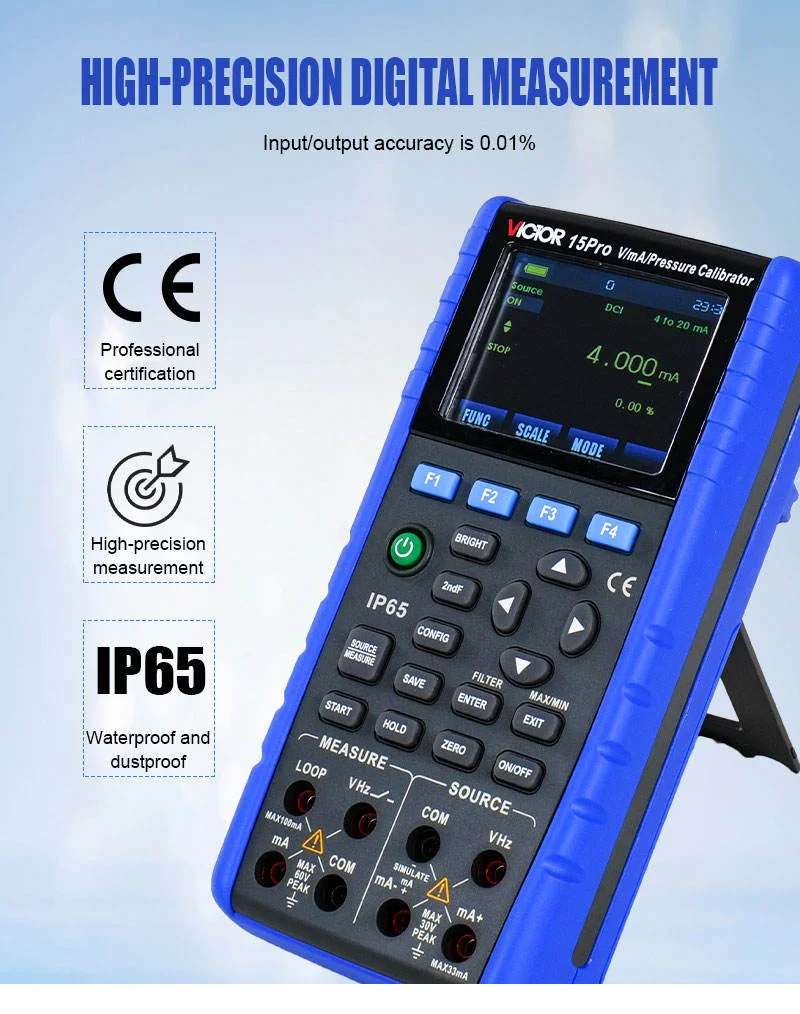

  VICOR 15 Pro – mA / V / Pressure Calibrator

  Core Positioning: Multi-function calibrator for loop, pressure, and voltage applications

  • Three-in-one functionality – mA, voltage, and pressure all in one device

  • 4–20 mA source & measure – Standard loop current testing for transmitters and positioners

  • 0.00 % display – Percentage readout for quick 4–20 mA loop diagnostics (0% = 4 mA, 100% = 20 mA)

  • STOP function – Freeze output or measurement at any point

  • Pressure measurement capability – Works with external pressure modules

  • mV range support – For low-voltage device testing

  • WIGGLE function – Automatic ramp/step for loop dynamics testing

  • ZERO function – Null pressure or current offset

  • HOLD function – Lock current reading on display

  • Large digital screen – Easy simultaneous viewing of value and percentage

  • IP65 protection – Field-ready against dust and water jets

  • Data storage record – Save calibration results for documentation

  • Reset function – One-key return to default settings

  • Auto shut-down – Extends battery life for full workday

  • Low pressure connection port – Optimized for micro-pressure devices

  • Compact rugged design – Ideal for chemical, oil & gas, water treatment, and HVAC
