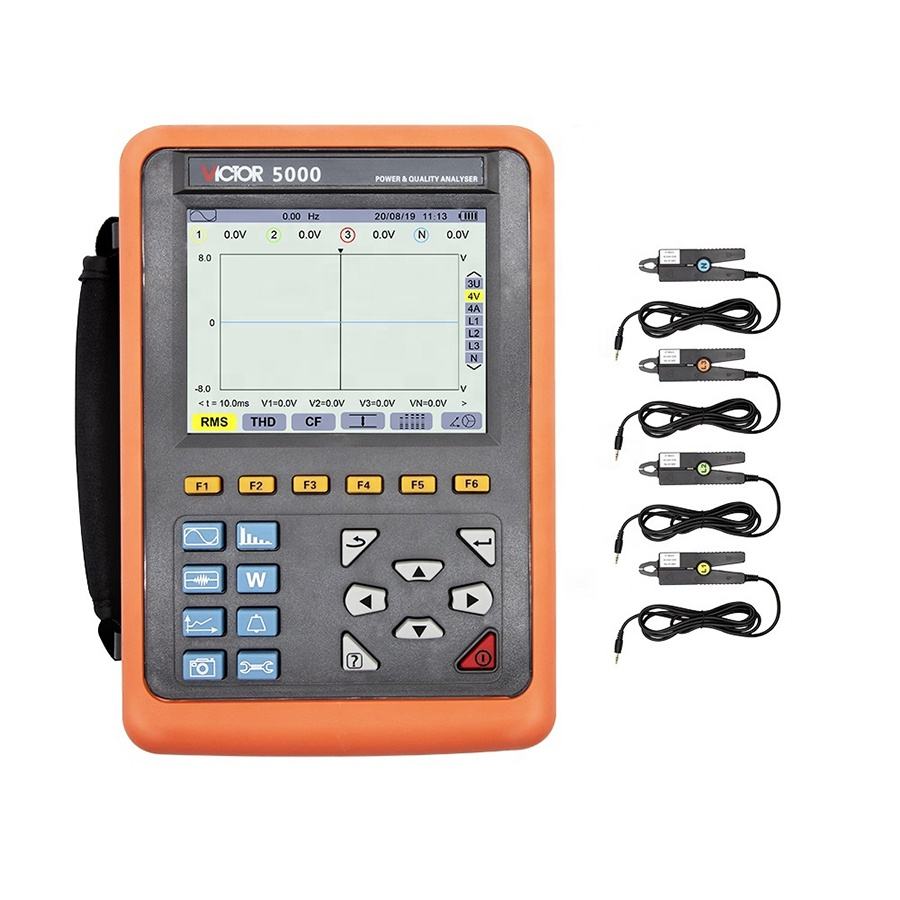

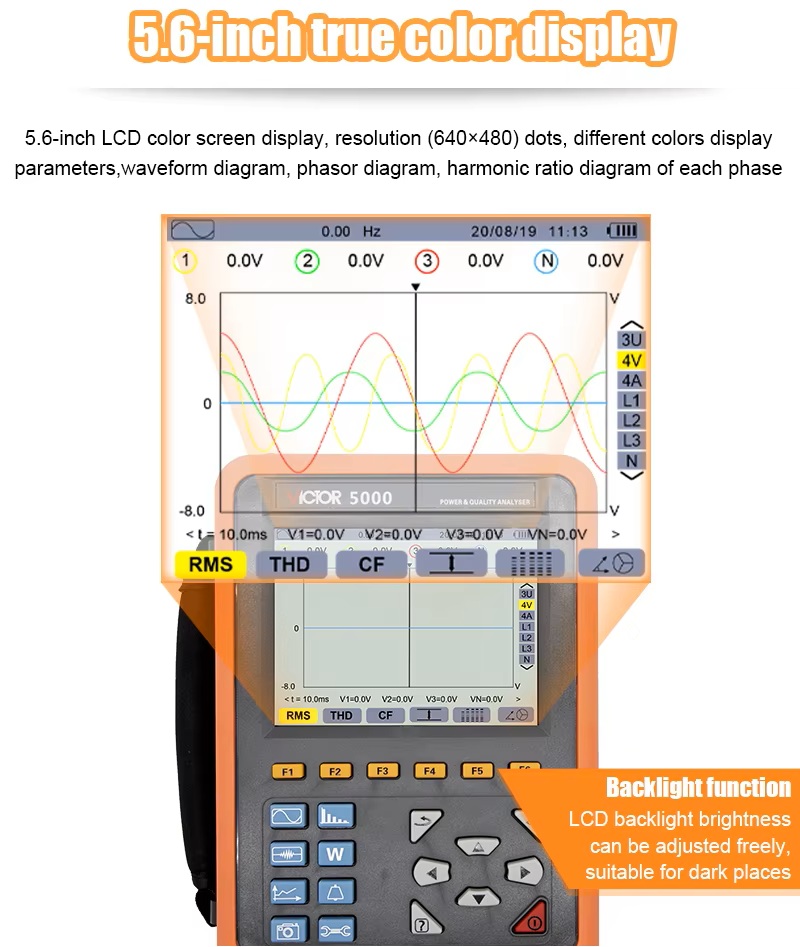

*Comprehensive Power Quality Analysis – Real-time display of 4 voltage and 4 current channels with true RMS values, DC components, and peak values.

*Advanced Harmonic Measurement – Measures individual harmonics up to the 50th order, displays harmonic bar charts for each phase, and calculates total harmonic distortion (THD).

*Complete Power & Energy Monitoring – Active, reactive, and apparent power/energy by phase and cumulative totals, plus transformer K factor.

*Phasor Diagram Visualization –  phasor diagrams for easy understanding of phase relationships.

*Multi-Parameter Flicker & Unbalance Detection – Short-term voltage flicker (PST) and three-phase unbalance (current and voltage).

*Half-Cycle Analysis – Monitors min and max half-cycle RMS values for both current and voltage.

*Power Factor & Displacement Factor – Provides both PF and DPF (COSΦ) for comprehensive efficiency assessment.
