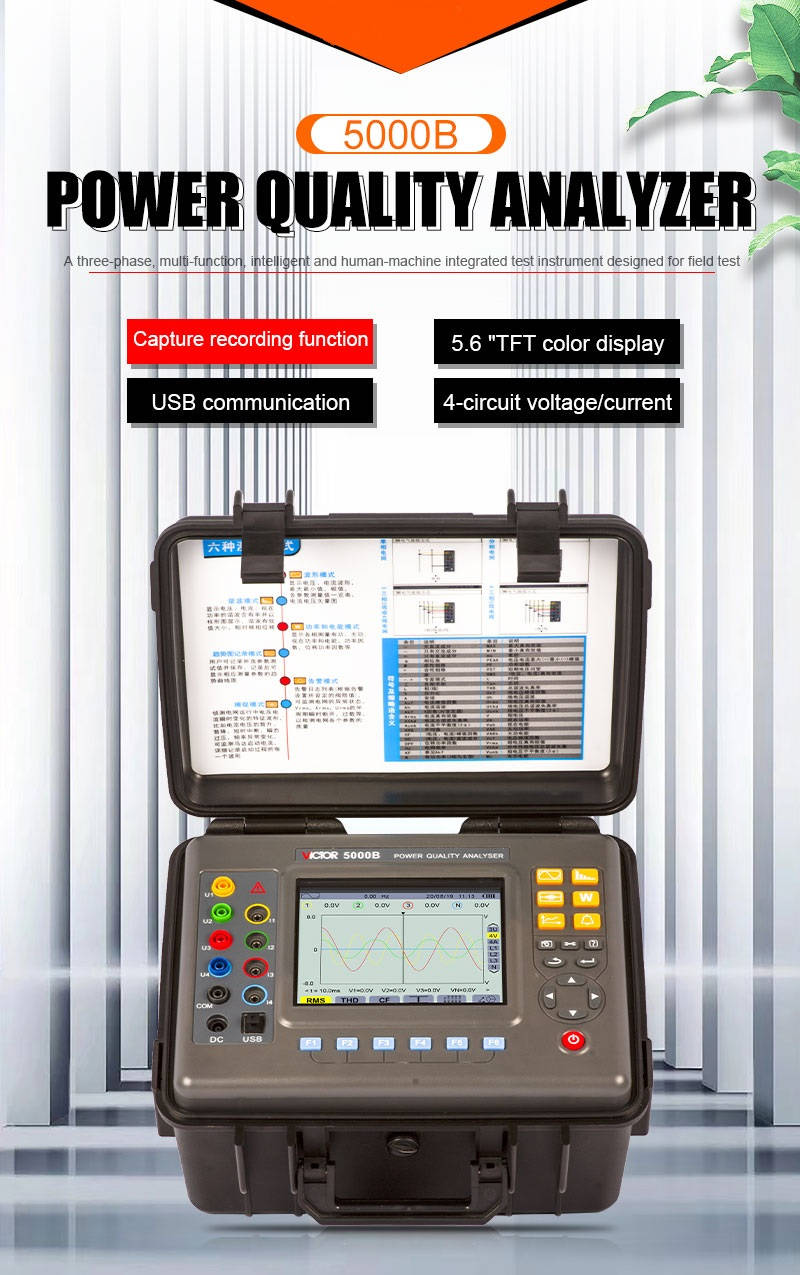

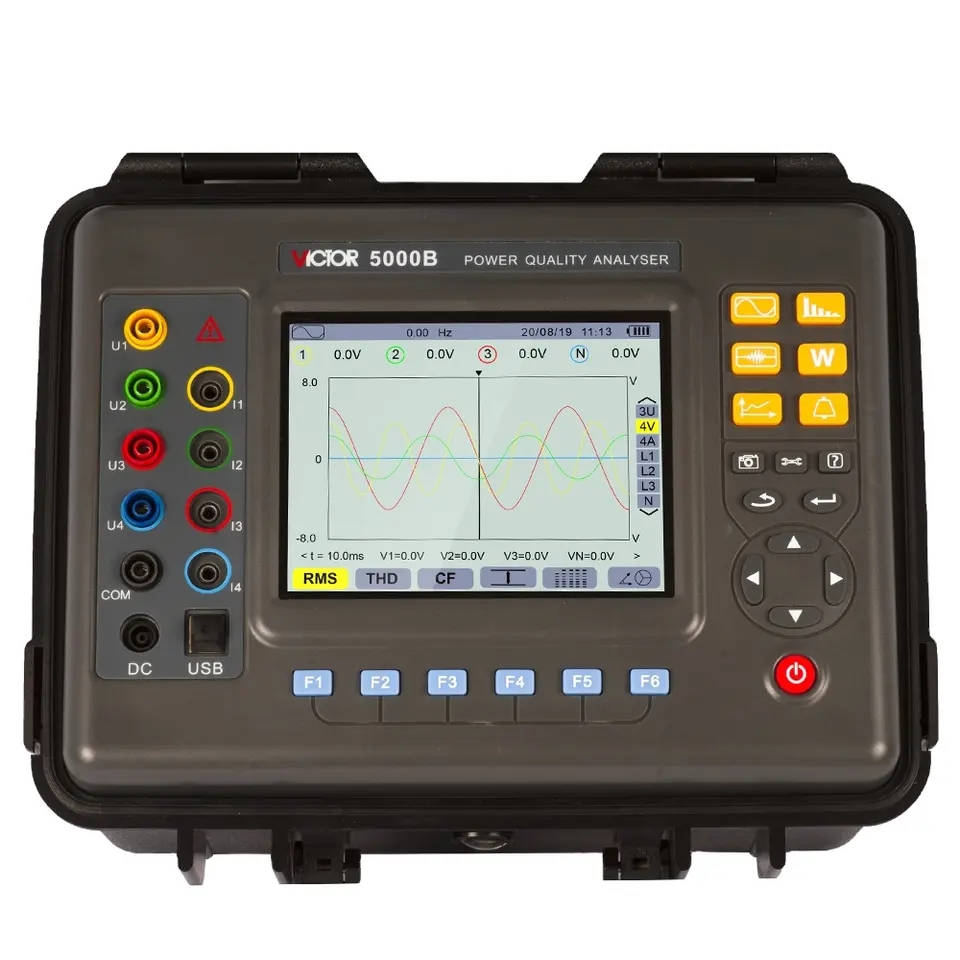

Real-time waveform display – Monitor 4-circuit voltage and current simultaneously
-
True RMS & DC component measurement – Accurate voltage and current readings
-
Harmonic analysis up to 50th order – Visualize harmonics via column chart per phase
-
Total Harmonic Distortion (THD) – Assess power quality at a glance
-
Comprehensive power parameters – Active, reactive, apparent power, and totals per phase
-
Transformer K-factor – Evaluate transformer derating needs
-
Power factor (PF) & displacement power factor (DPF) – Complete power efficiency insight
-
Three-phase unbalance monitoring – Detect voltage and current imbalances
-
Short-term voltage flicker measurement – Identify stability issues
-
Phasor diagram display – Intuitive visualization of phase relationships
-
Peak & half-cycle min/max values – Capture transient and inrush events
-
Capture & record functions – Transient capture, startup current monitoring, trend recording, alarms, and screen capture
-
USB communication – Easy data transfer and PC connectivity
5000B Catalog
