Description

Non-contact Phase Detector breakthrough the traditional method of phase detection. The traditional method is to connect threeexposed clips or probes to three bared live wires, so it need to disconnect the three phase wires. While 850E Non-contact Phase Detector adopts non-contact measurement, no need to disconnect wires, no need to touch high voltage bared live wires. With the three clamps clip on the insulation layer of three phase live wires, then the phase can be detected, meanwhile
sound and light indicating positive or negative states. Instrument base plate is provided with a magnet, the operation more convenient.

Specifications

Specifications
Model	850C	850D	850E
Clampable wire diameter	ø1.5-ø16mm	ø10-ø40mm	ø1.5-ø43mm
Function	1,phase sequence detection (positive phase, revers e phase and open phase) 2,live wire inspection 3,simple power detection 4,Breakpoint positioning 5,Line maintenance
Live Voltage Range	AC60~1000V , 45~65Hz (Sine wave continuous input)
LED Indication	[Positive phase]: The 4 indication LEDs blink in clockwise order [Revers e phase]: The 4 indication LEDs blink in counterclockwise order [live-voltage indication]: L1, L2, L3 light up [Open phase]: L1or L2 or L3 is off [Open circuit]: L1 or L2 or L3 is off
Buzzer	[Positive Phase ]: beeps intermittently [Revers e Phase ]: beeps continuousely
Power lndication	√
Magnetic on back	√
Auto power off	5 minutes idle
Clamp wire length	0.6m
Max. Measure Voltage	AC1000V
Safety standard	CAT III 1000V,transient voltage 6000V

General Information
Model	850C	850D	850E
Power supply	1.5V AA x 2
Product size	70mmx75mmx30mm
Product weight	300g

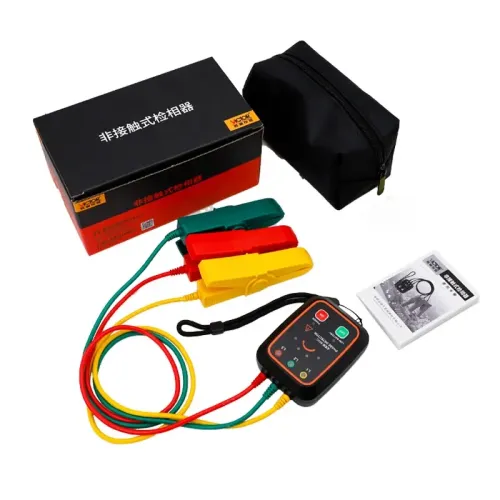

Standard accessories	Manual, pouch, alligator clips
