Specifications |
||
|
Model |
380J |
|
|
Resolution |
260x200 |
|
|
FOV |
34.4°X25.8° |
|
|
Temperature range |
-10℃～120℃ , 14℃～248°F |
|
|
Accuracy |
± 5 ° C or ± 5% of reading |
|
|
Frame rate |
25Hz |
|
|
NETD |
＜70mK @25℃ |
|
|
Lens |
4mm adjustable |
|
|
Resolution |
260x200 |
|
|
Features |
|
|
Model |
380J |
|
Locate the current leakage or short circuit on PCBA |
√ |
|
Observe the thermal status of the chipset pins |
√ |
|

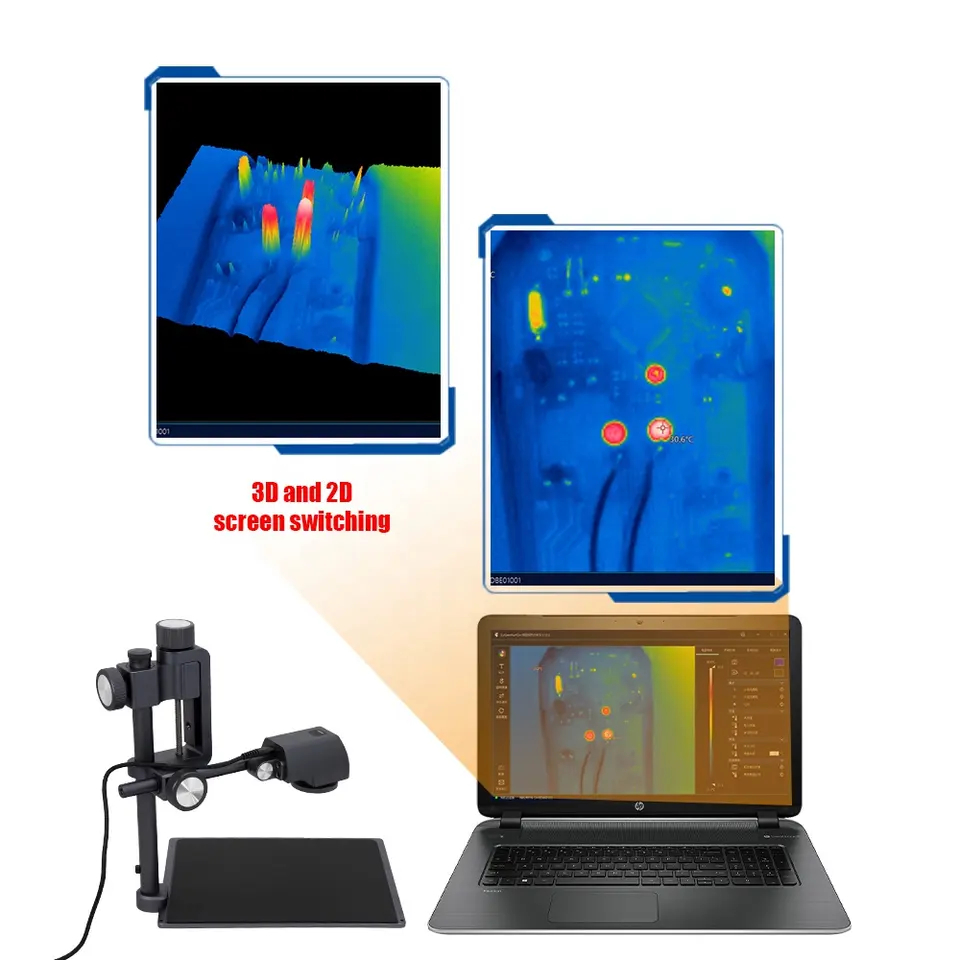

With 3D display mode, to detect ultra-small current leakage |
√ |
|
Comparison function |
√ |
|
Curve data available |
√ |
|

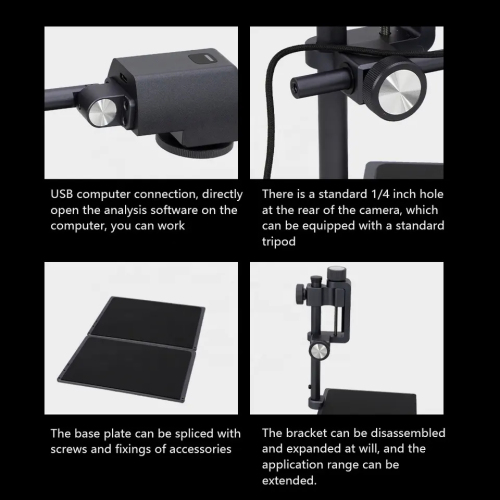

With tripod expansion |
√ |
|
Photos and videos recording |
√ |
|
Interface |
USB |
|
System |
Win10 (recommended)/ Win7 |
|
CPU & RAM |
i3 & 4G |
|
Working condition |
-10°C - 55°C, <95% |
|
General Information |
|
|
Model |
380J |
|
Power supply |
DC 5V (USB type-C) |
|
Product color |
Black |
|
Product size |
220mmx172mmx241mm |
|
Product weight |
2000g |
|

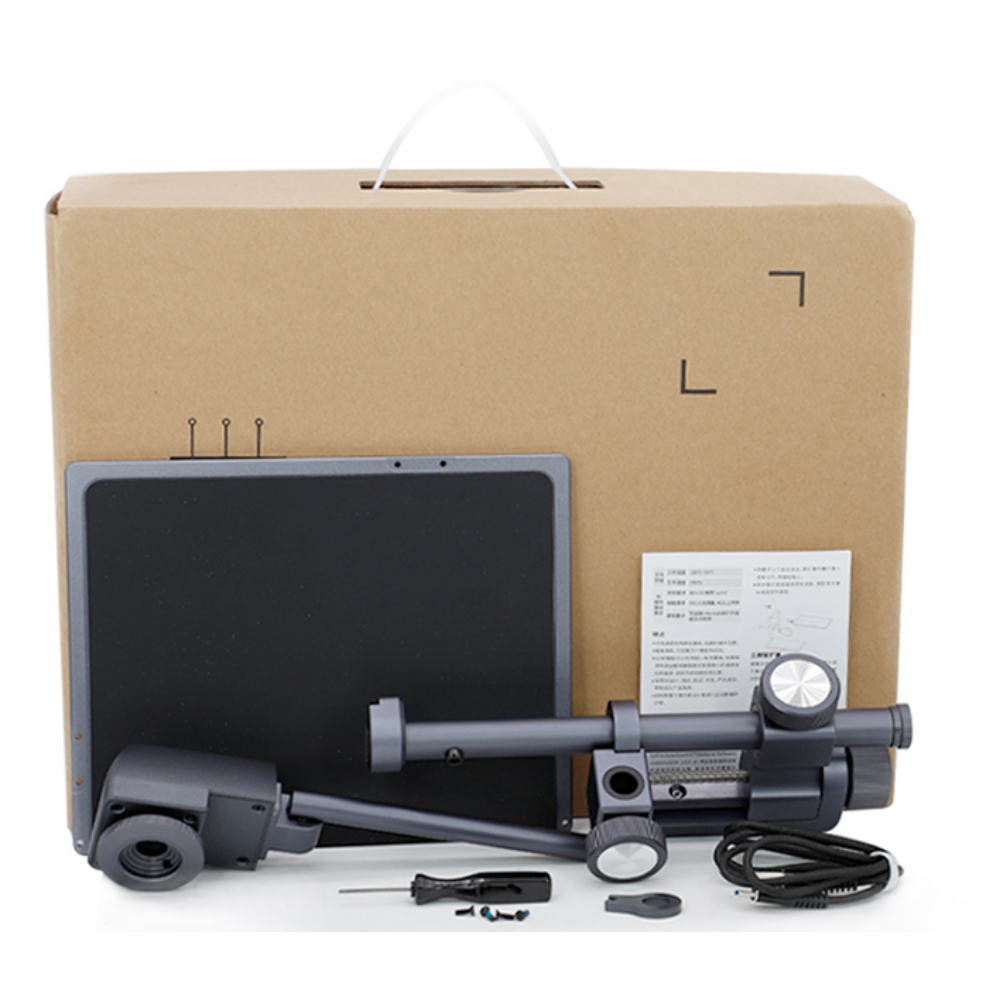

Standard accessories |
Manual, USB type-c cable, bracket, bottom plate, hexagon screw, hexagon w rench |
380J User's Manual
