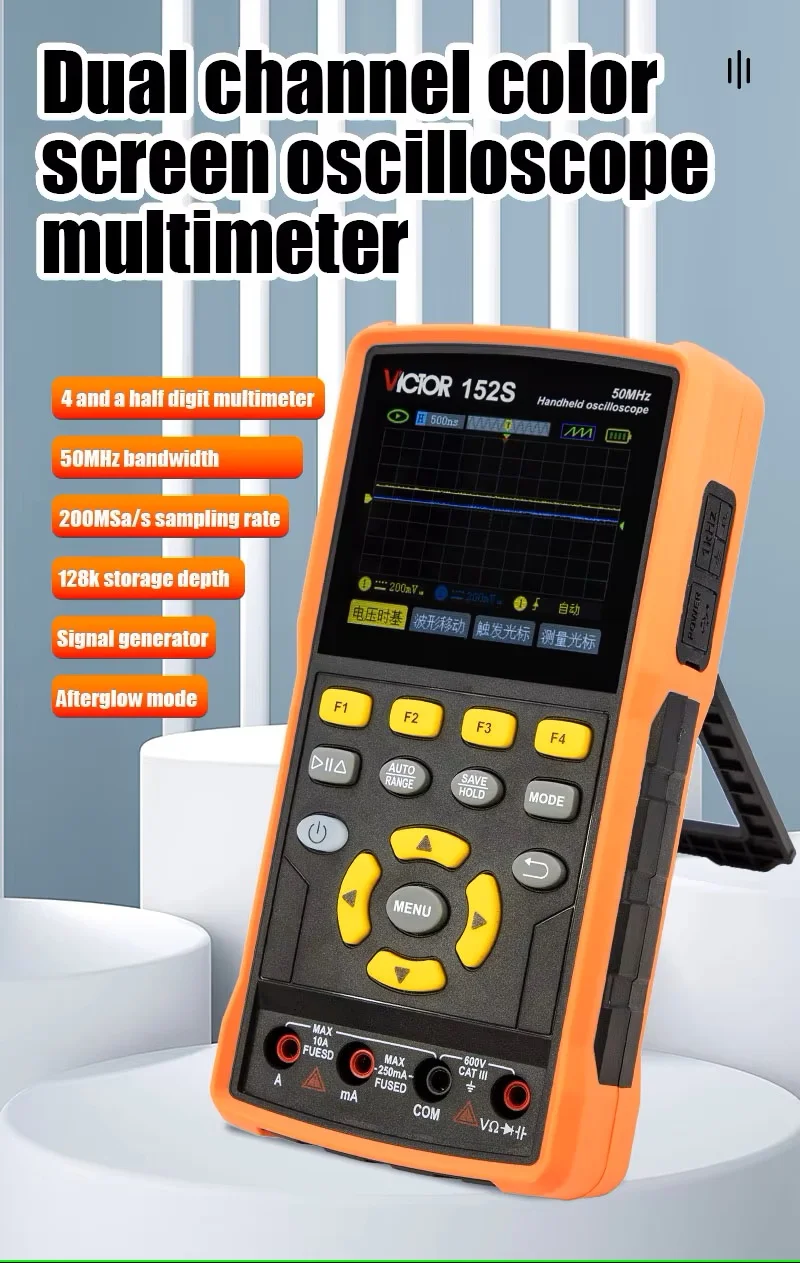

Oscilloscope +Multimeter+ Signal Generator 3 in 1

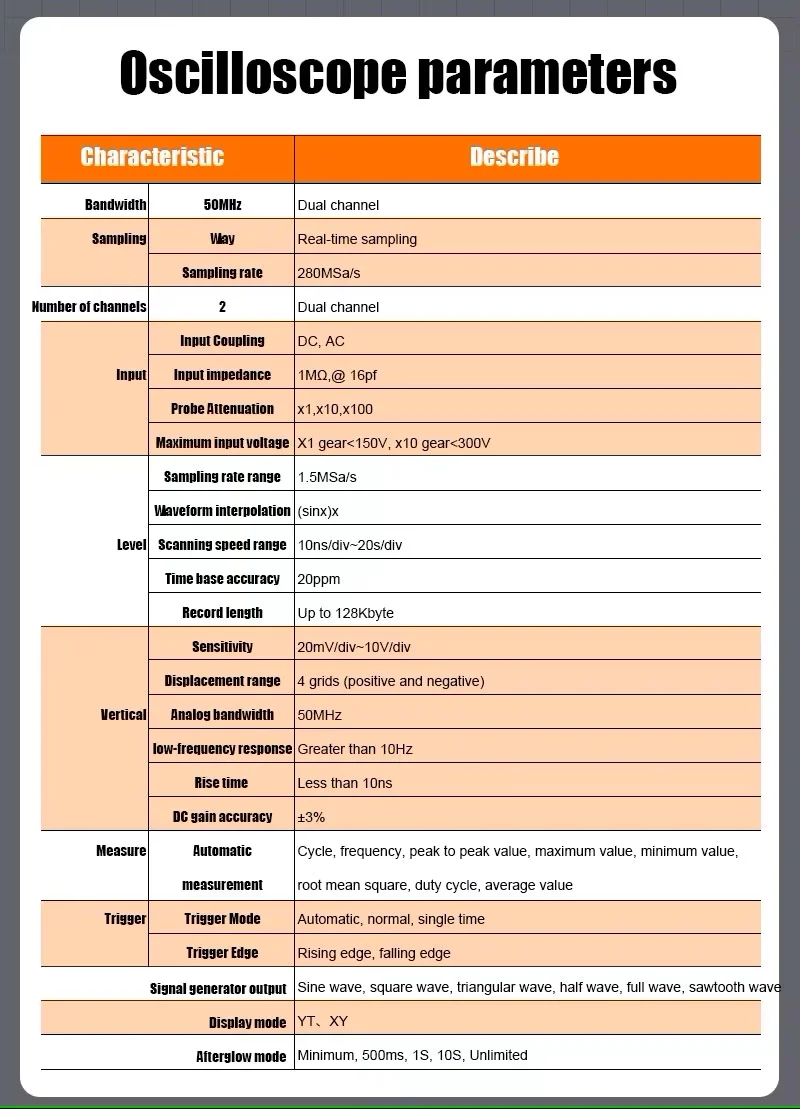

Oscilloscope (Dual Channel, 50MHz Bandwidth)

1. High Sampling Rate – Real-time sampling up to 280MSa/s

2. Deep Memory – Maximum record length of 128 kbytes

3. Multiple Display Modes – YT and XY display modes

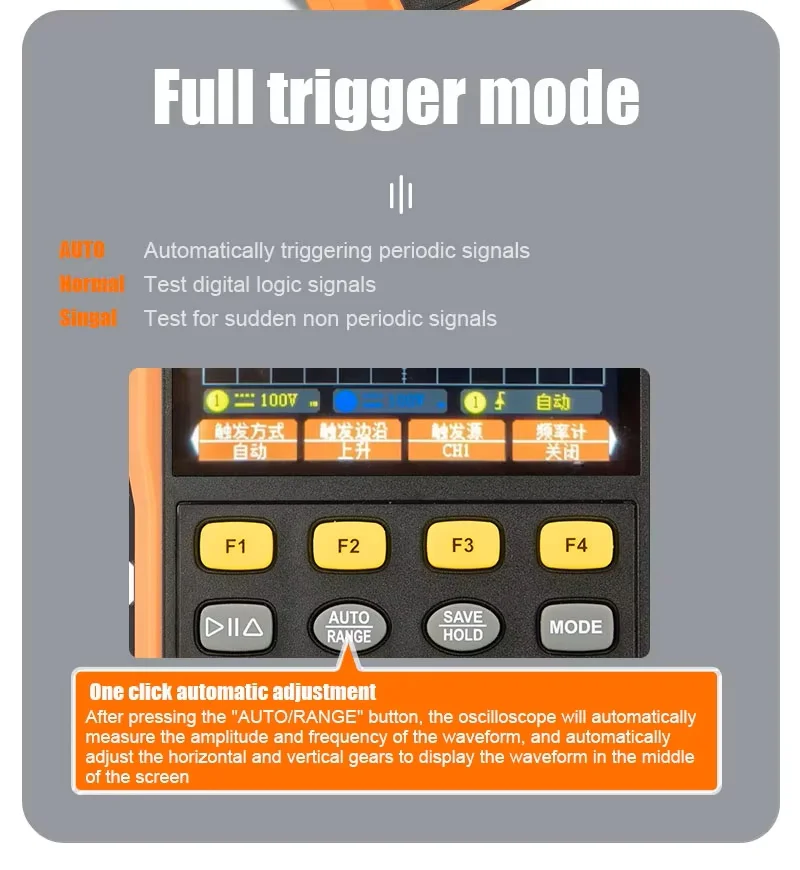

4. Flexible Trigger Modes – Auto, normal, and single trigger

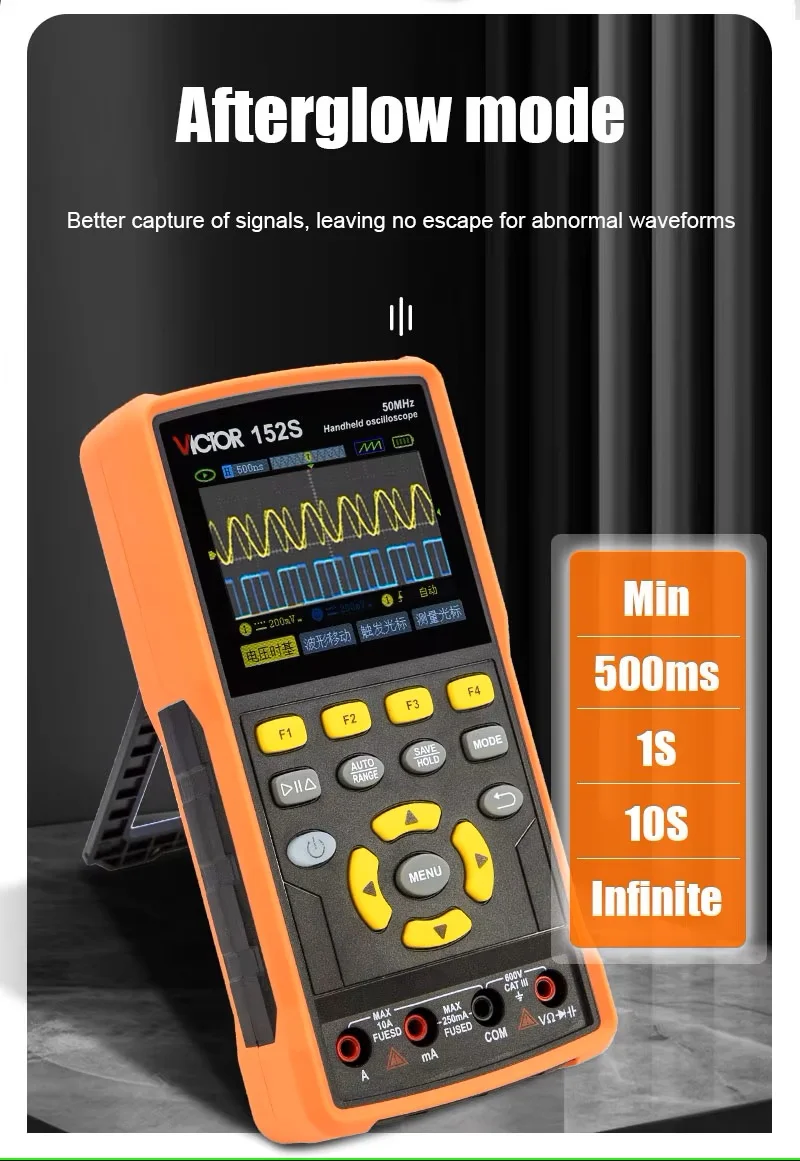

5. Afterglow Mode – Useful for analyzing complex or modulated signals

6. Cursor Measurement Function – Manual precise measurements

7. Multiple Automatic Measurements – Quick access to key parameters

8. High Input Voltage Protection – x1 probe ≤150V, x10 probe ≤300V (DC+AC peak)

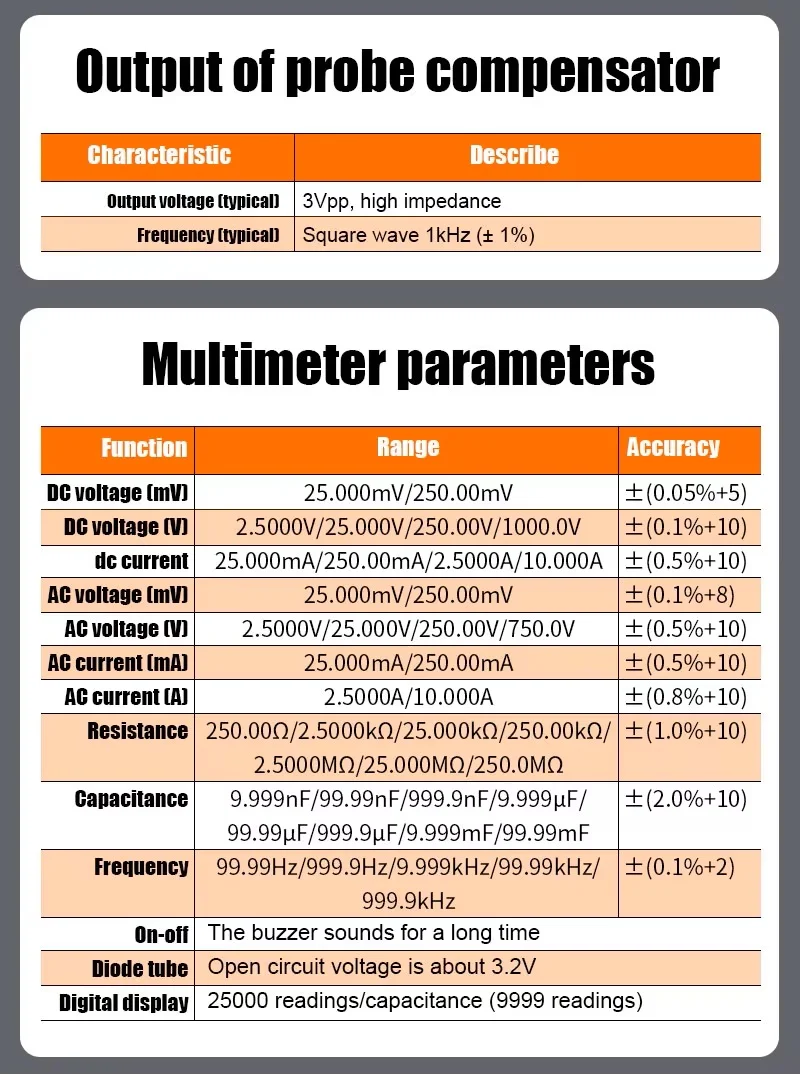

Multimeter (4½ Digit, True-RMS, Color Screen)

1. True-RMS Measurement – Accurate reading for non-sinusoidal waveforms

2. High Resolution Display – 4½-digit color screen

3. Wide Measurement Functions – Voltage, current, resistance, capacitance, continuity, diode

4. High Counts – 25,000 readings for most functions, 9,999 counts for capacitance

5. High Input Voltage Rating – AC 750V, DC 1000V (max)

6. High Current Rating – AC 10A, DC 10A (max)

7. Auto Ranging – No need to manually select range

8. Data Retention – Hold readings on screen for easy recording

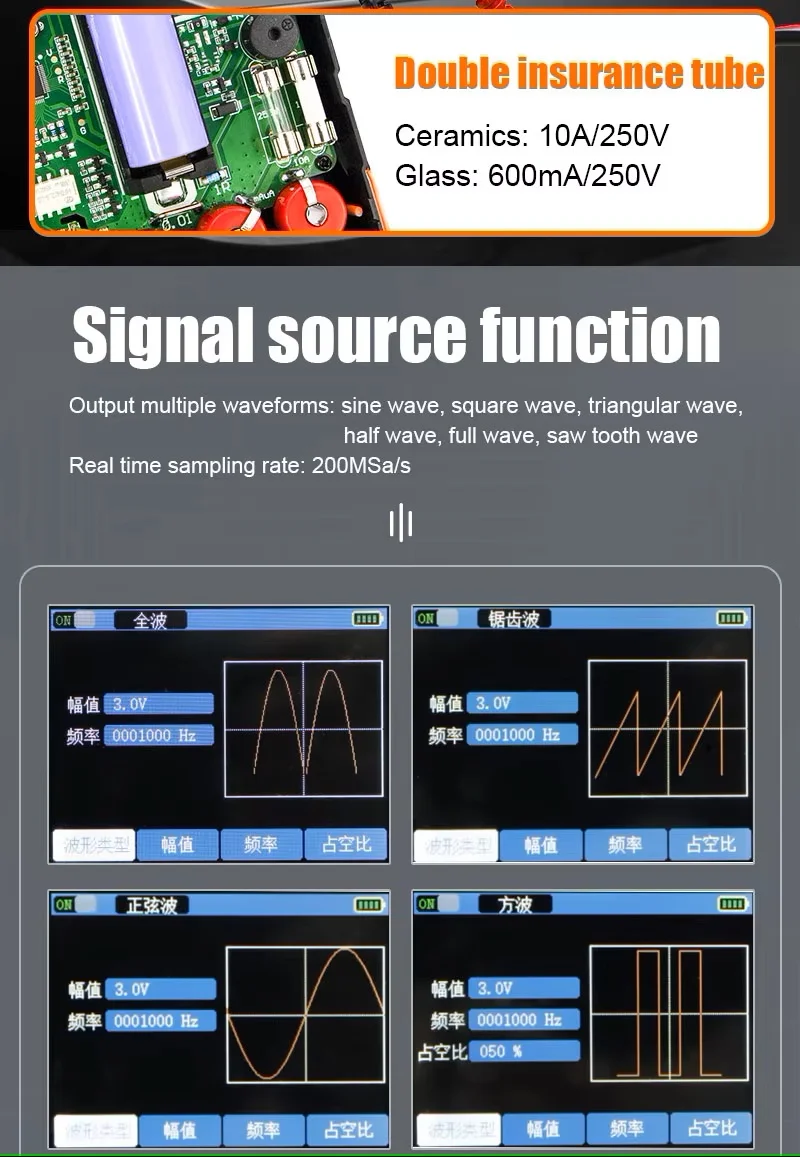

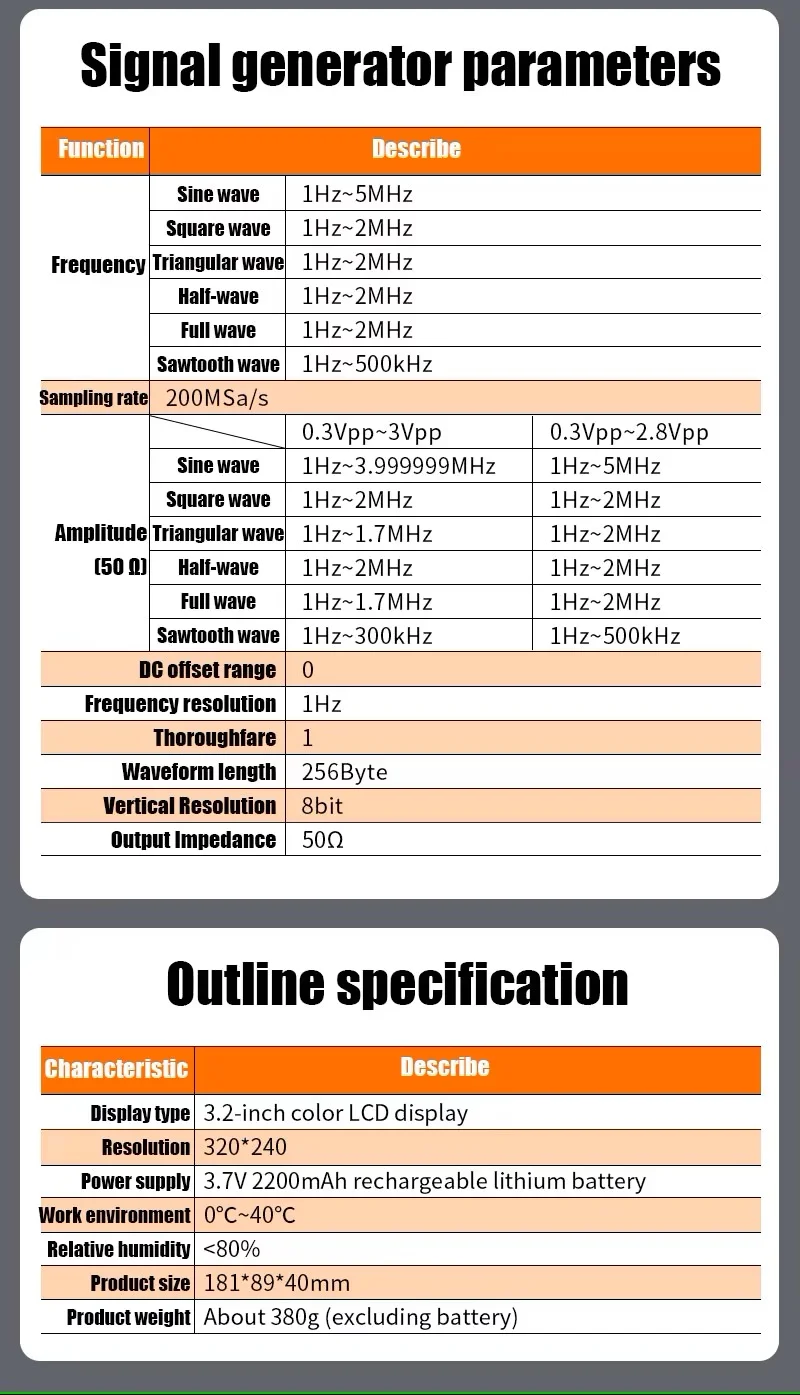

Signal Generator (Max Output Frequency 5MHz)

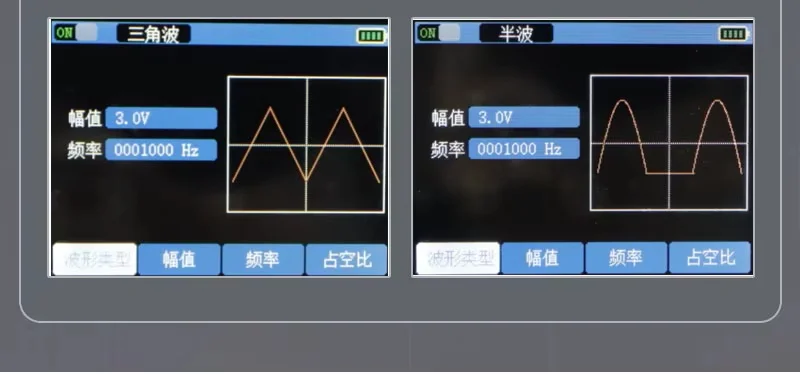

1. 6 Built-in Waveforms – Sine, square, triangle, half-wave, full-wave, sawtooth

2. Real-time Sampling – 200MSa/s

3. Fine Frequency Adjustment – 1Hz resolution

4. Programmable Waveform Length – 256 bytes

5. Vertical Resolution – 8-bit

General

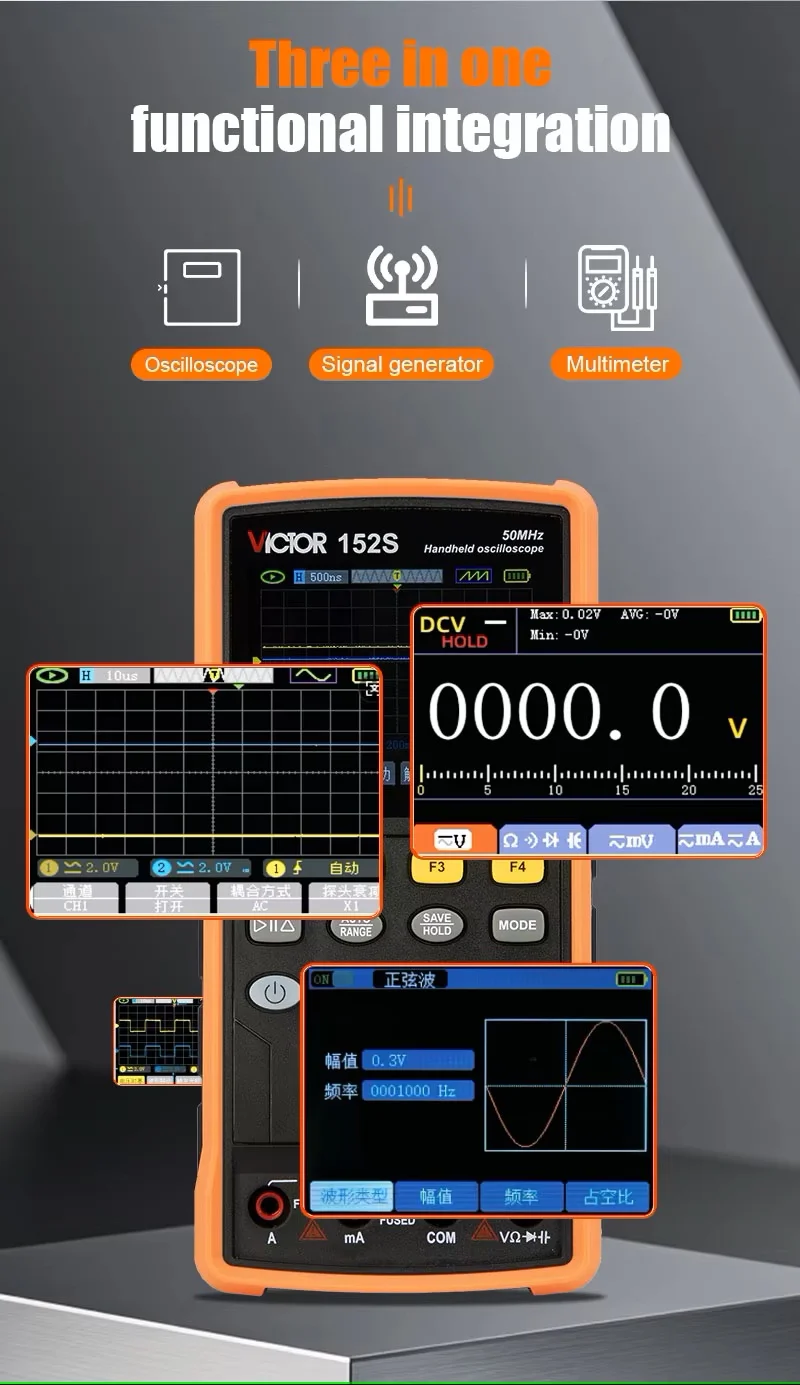

• All-in-one portable design (3 instruments in 1)

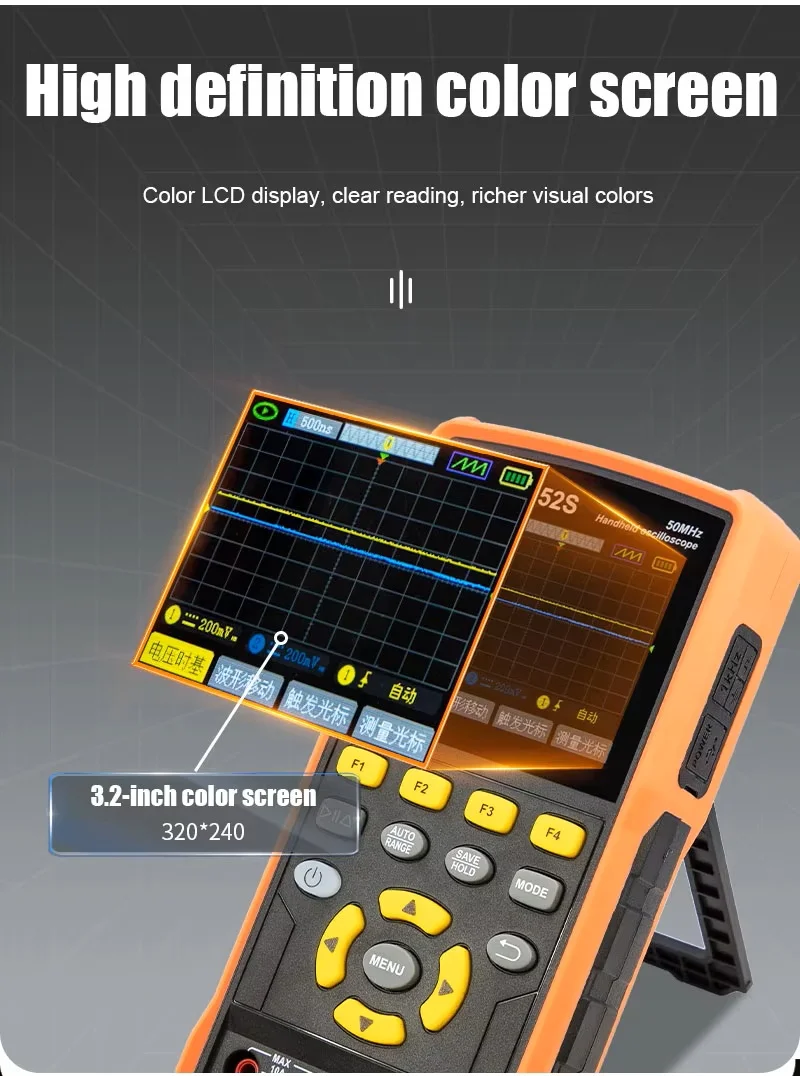

• Color screen for clear data visibility

• Suitable for education, repair, and R&D
