Specifications |
||
|
Function |
1010D+ |
1010DL |
|
|
Basic model |
Blue tooth model |
|
Range |
0 -199999 LUX ,0 - 19999 FC(foot candle) | |
|
Resolution |
0.1 LUX, 1LUX,0.01FC,0.1FC,1FC |
|
|
Accuracy |
±4% :Standard flat lamp or standard color temperature of 2856k |
|
|
±6%+5:Other visible light sources |
||
|
Cosine angle deviation |
30°，±2% |
|
|
60°，±6% |
||
|
80°，±25% |
||
|
Sampling rate |
2times/S |
|
|
Working condition |
0-40℃,<90%RH |
|
|
Storage condition |
-20~60℃, <75%RH |
|
|
Features |
||
|
Models |
√ |
√ |
|
Max./Min. value |
√ |
√ |
|
Relative value |
√ |
√ |
|
Low battery indication |
√ |
√ |
|
Data hold |
√ |
√ |
|
Auto power off |
√ |
√ |
|
Blue tooth interface |
--- |
√ |
|
APP to view data |
--- |
√ |
|
Display |
4 digits with backlight |
4 digits with backlight |
|
General Information |
||
|
Model |
1010D+ |
1010DL |
|
Power Supply |
9V,6F22 |
|
|
Power Supply |
Black + Orange |
|
|

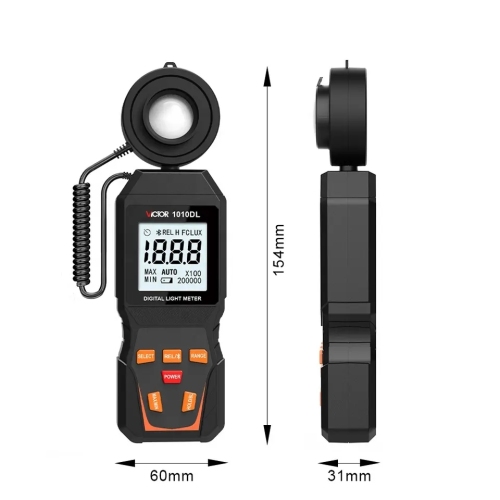

Product Size |
154×60×31mm |
|
|
Product Weight |
185g |
|
|
Standard Accessories |
Manual, battery, pouch |
|
1010D+ 1010DL User's Manual
