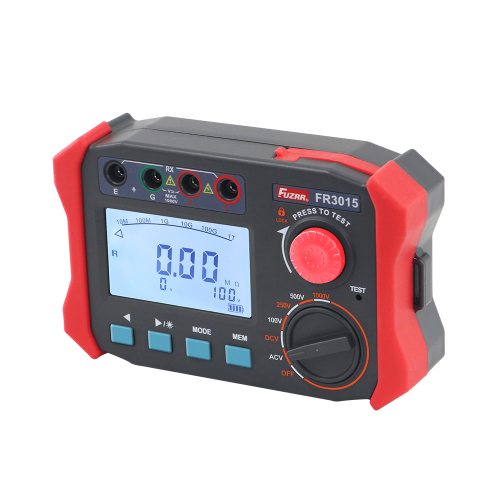

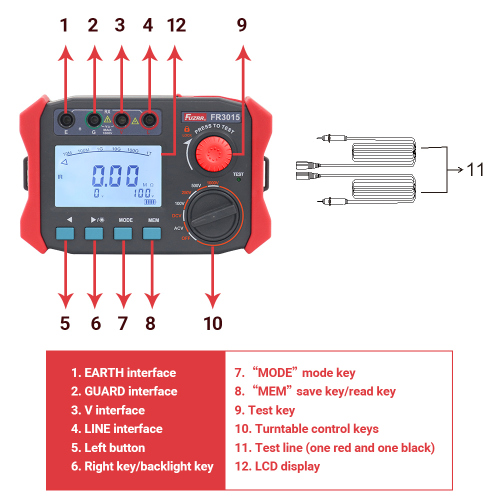

FR3015 digital insulation resistance meter also known as megohm meter, high voltage insulation resistance tester, used for insulation resistance testing. This instrument has LCD large screen grey backlight display, data storage, data access, and other functions. At the same time, it also has the function of measuring DC voltage and AC voltage absorption ratio and polarization index. The machine is beautiful and high-grade, wide range, high resolution, convenient operation, easy to carry, accurate, reliable, stable performance, strong anti-interference ability.

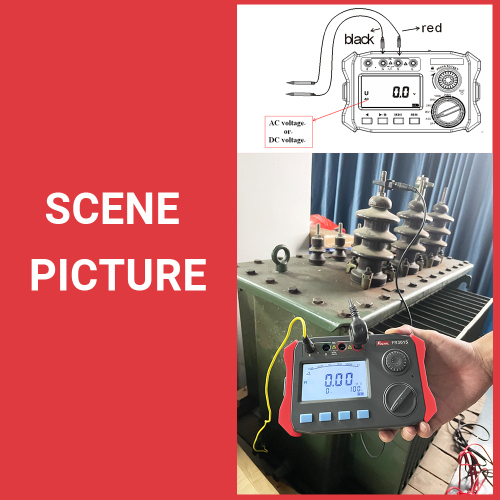

FR3015 also has a shock-proof, dust-proof, moisture-proof structure, adapt to the harsh working environment, is the electric power, post and telecommunications, communication, mechanical and electrical installation and maintenance and the use of electricity as industrial power or energy industrial enterprise sector commonly used and essential instrument. It is suitable for measuring the resistance value of various insulating materials and the insulation resistance of transformers, motors, cables and electrical equipment.
FR3015 digital insulation resistance meter is composed of medium and large scale integrated circuit. The output power of this table is large, and the output voltage levels are many. The rated insulation test voltage is up to 2500V and the measured insulation resistance is up to 100.0GΩ. The DC voltage ranges from 2.0 V to 1000V, and the AC voltage ranges from 2.0 V to 1000V.
|
Specifications |
||
|
Model |
FR3015 |
FR3015E |
|
Output voltage |
Resistance |
Resistance |
|
100V |
0.06MΩ～0.60MΩ |
--- |
|
0.60MΩ～6.00 MΩ |
--- | |
|
6.0MΩ～60.0MΩ |
--- | |
|
60MΩ～600MΩ |
--- |
|
|
0.60GΩ～5.00GΩ |
--- | |
|
250V |
0.10 MΩ～1.00 MΩ |
0.10 MΩ～1.00 MΩ |
|
1.00MΩ～10.00 MΩ |
1.00MΩ～10.00 MΩ |
|
|
10.0MΩ～100.0 MΩ |
10.0MΩ～100.0 MΩ |
|
|
100MΩ～1000MΩ |
100MΩ～1000MΩ |
|
|
1.00GΩ～10.00GΩ |
1.00GΩ～10.00GΩ |
|
|
500V (±10%) |
0.20 MΩ～2.00 MΩ |
0.20 MΩ～2.00 MΩ |
|
2.00MΩ～2 0.00 MΩ |
2.00MΩ～2 0.00 MΩ |
|
|
20.0MΩ～2 00 .0 MΩ |
20.0MΩ～2 00 .0 MΩ |
|
|
200MΩ～2000MΩ |
200MΩ～2000MΩ |
|
|
2.00GΩ～20.00GΩ |
2.00GΩ～20.00GΩ |
|
|
1000V (±10%) |
0.50 MΩ～5.00 MΩ |
0.50 MΩ～5.00 MΩ |
|
5.00MΩ～50.00 MΩ |
5.00MΩ～50.00 MΩ |
|
|
50.0 MΩ～500.0 MΩ |
50.0 MΩ～500.0 MΩ | |
|
500 MΩ～5000MΩ |
500 MΩ～5000MΩ |
|
|
5.00GΩ～50.00GΩ |
5.00GΩ～50.00GΩ |
|
|
2500V (±10%) |
--- |
1.00MΩ～10.00 MΩ |
|
--- |
10.00MΩ～100.0 MΩ |
|
|
--- |
100 MΩ～1000MΩ |
|
|
--- |
1.00GΩ～10.00GΩ |
|
|
--- |
10.00GΩ～100.0GΩ |
|
|
Accuracy |
±3%±5 |
±3%±5 |
|
DCV |
2.0～1000V(±3%±3) |
2.0～1000V(±3%±3) |
|
ACV |
2.0～1000V(±3%±3) |
2.0～1000V(±3%±3) |
|
Short-circuit current |
>1.5mA (1000V) |
>1.5mA (1000V) |
|
Features |
||
|
Model |
FR3015 |
FR3015E |
|
Polarization Index (PI), Absorption Ratio (DAR) |
√ |
√ |
|
USB data output |
√ |
√ |
|
Data storage |
500 group |
500 group |
| Battery indicator |
√ |
√ |
|
Backlight |
√ |
√ |
|
Alarm function |
√ |
√ |
|
LCD size |
73x43mm |
73x43mm |
|
Auto off |
√ |
√ |
|
General Information |
|
|
Model |
FR3015 /FR3015E |
|
Power supply |
1.5V AA x 8 |
|
Product size |
175mm×112mm×53mm |
|
Product weight |
1230g |
|
Standard accessories |
USB cable, charger, software CD, manual, test leads, tool box |
RF3015 RF3015E User's Manual
