Equipped with True RMS technology, they ensure accurate measurements of complex waveforms for voltage, current, resistance, capacitance, frequency, temperature, and more.
Both models meet CAT III 600V/CAT II 1000V safety standards, featuring rugged construction and advanced anti-burn protection for reliable performance in harsh environments.
Features
- Precision Measurement
- Electrical Parameters:
- DC/AC Voltage: Up to 1000V with ±0.5%+3 accuracy (e.g., 600mV range: ±1.0%+10).
- Current: Supports 10A range (DC/AC) with ±1.5%+3 accuracy.
- Resistance/Capacitance: Measures up to 60MΩ (±0.5%+3) and 6mF (±5.0%+5).
- Advanced Functions:
- Frequency (10Hz–100MHz) and duty cycle (1%–99%) analysis for motor drives and inverters.
- Temperature measurement (-55°C to 1000°C) with a dedicated probe (17B MAX only).
- Electrical Parameters:
- User-Centric Design
- LCD Backlit Display: 5999-count resolution with data hold (HOLD), Max/Min recording, and relative value mode (REL).
- Safety & Durability:
- Overload protection (Over Range Indication) and IP40 dust resistance.
- Auto power-off and one-click wakeup to extend battery life.
- Environmental Adaptability
- Operates in 0°C–40°C and withstands drops, ideal for industrial sites.
- Powered by two AA batteries (500+ hours runtime) with low-battery alerts.
- Industrial: Circuit diagnostics, motor current stability checks.
- Laboratories: High-frequency signal analysis, sensor calibration.
- Education: Hands-on training for electronics fundamentals.
|
Features |
|
|
Diode |
√ |
|
Continuity test |
√ |
|
Display |
LCD with backlight |
|
True RMS |
√ |
|
Data hold |
√ |
|
Over range indication |
√ |
|
Low battery indication |
√ |
|
Max / Min value display |
√ |
|
Relative value |
√ |
|
Sound & light alarm |
√ |
|
One click wakes up |
√ |
|
VFD (low pass filtering) |
√ |
|
Auto power off |
√ |
|
Full gear anti burn |
√ |
|
Max. indication |
5999 (3 5/6) auto polarity indication |
|
Measuring method |
dual slope A/D transfer |
|
Sampling rate |
approx. 3 times/sec |
|
Operation environment |
0～40℃，relative humidity <75% |
|
Storage environment |
-10℃~50℃, relative humidity <85%RH |
|

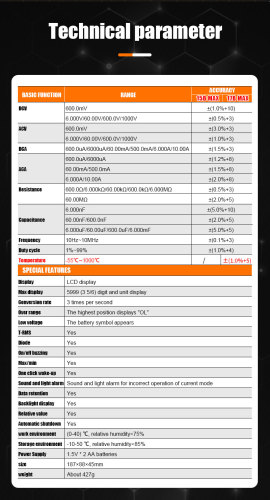

Basic Function |
Range |
15B Max |
17B Max |
|
DCV |
600mV |
± (1.0%+10) |
± (1.0%+10) |
|
6V/60V/600V/1000V |
± (0.5%+3) |
± (0.5%+3) |
|
|
ACV |
600mV |
± (3.0%+3) |
± (3.0%+3) |
|
6V/60V/600V/1000V |
± (1.0%+3) |
± (1.0%+3) |
|
|
DCA |
600uA/6000uA/60mA/500mA/6A/10A |
± (1.5%+3) |
± (1.5%+3) |
|
ACA |
600uA/6000uA |
± (1.2%+8) |
± (1.2%+8) |
|
60mA/500mA |
± (1.5%+8) |
± (1.5%+8) |
|
|
6A/10A |
± (2.0%+8) |
± (2.0%+8) |
|
|
Resistance |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ |
± (0.5%+3) |
± (0.5%+3) |
|
60MΩ |
± (2.0%+5) |
± (2.0%+5) |
|
|
Capacitance |
6nF |
± (5.0%+10) |
± (5.0%+10) |
|
60nF/600nF |
± (2.0%+5) |
± (2.0%+5) |
|
|
6uF/60uF/600uF/6mF |
± (5.0%+5) |
±(5.0%+5) |
|
|
Frequency |
10Hz-100MHz |
±(0.1%+3） |
±(0.1%+3） |
|
Duty cycle |
1%~99% |
±(1.0%+4） |
±(1.0%+4） |
|
Temperature |
(-55~1000）℃ |
--- |
＜400℃±(1.0%+5） |
|
(-67~1832）℉ |
--- |
＜752℉±(1.0%+5） |
|
General Information |
|
|
Power Supply |
1.5V AA battery x 2 |
|
Product size |
187×88×45 mm |
|
Product weight |
400g |
|
Standard accessories |
Pouch, manual, 10A test leads, special tip test leads, temperature probe (only for 17B MAX) |
