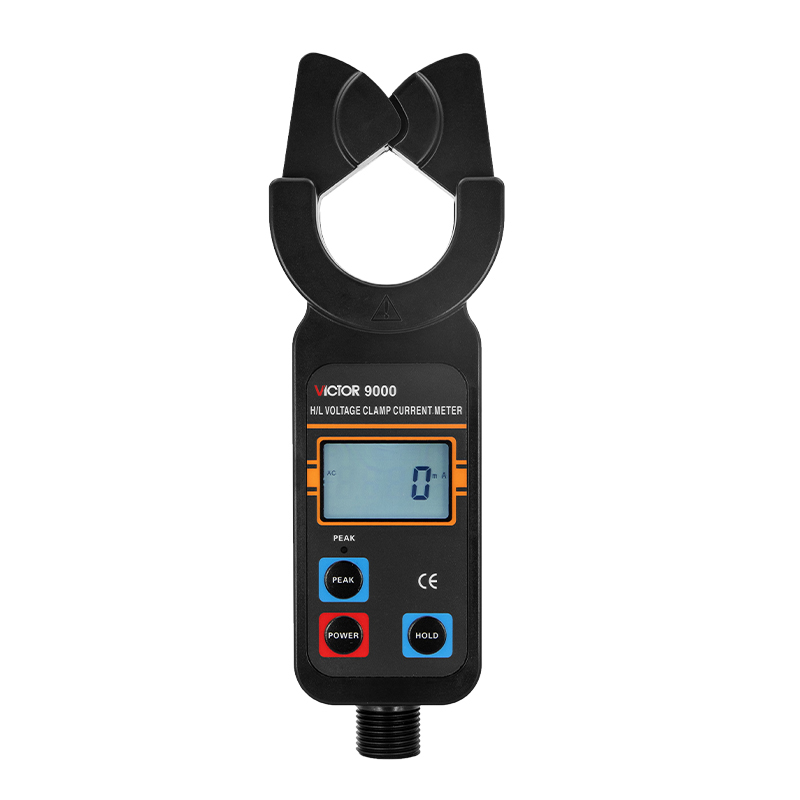

Name: High /Low Voltage Leakage Clamp Meter
Brand: VICTOR & RuoShui
SKU: 9000 9000B
Availability: InStock
Rating: 5 (1 reviews)

Home > Electrical Measurement Instruments > Leakage Current Clamp Met...

Description Specifications Video DOWNLOAD Review

Description

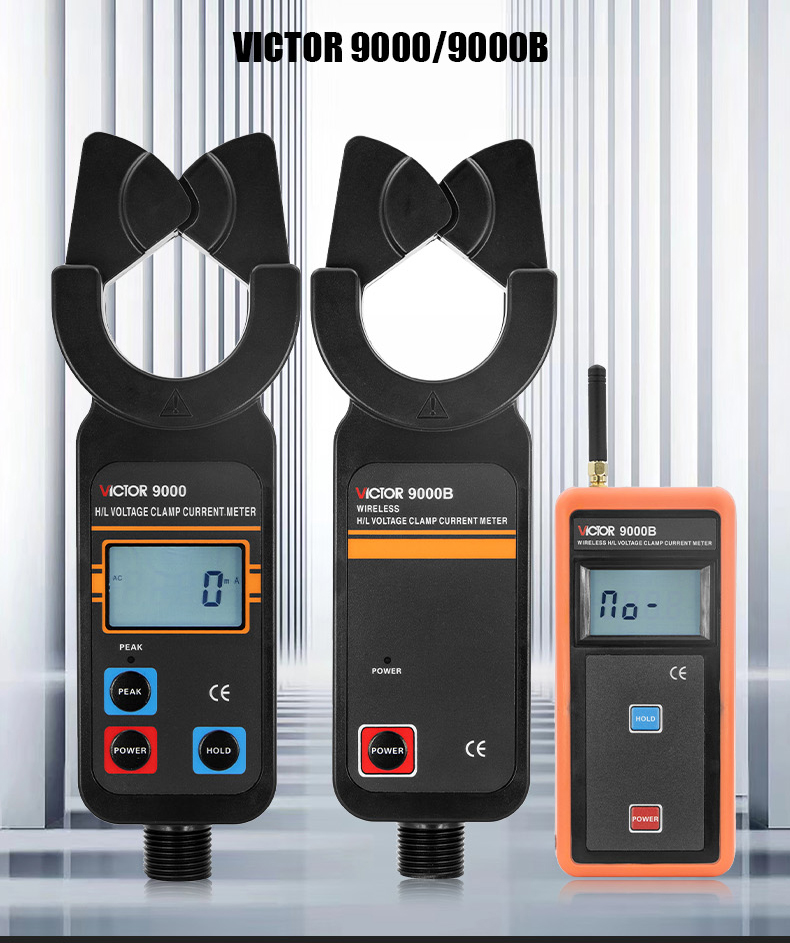

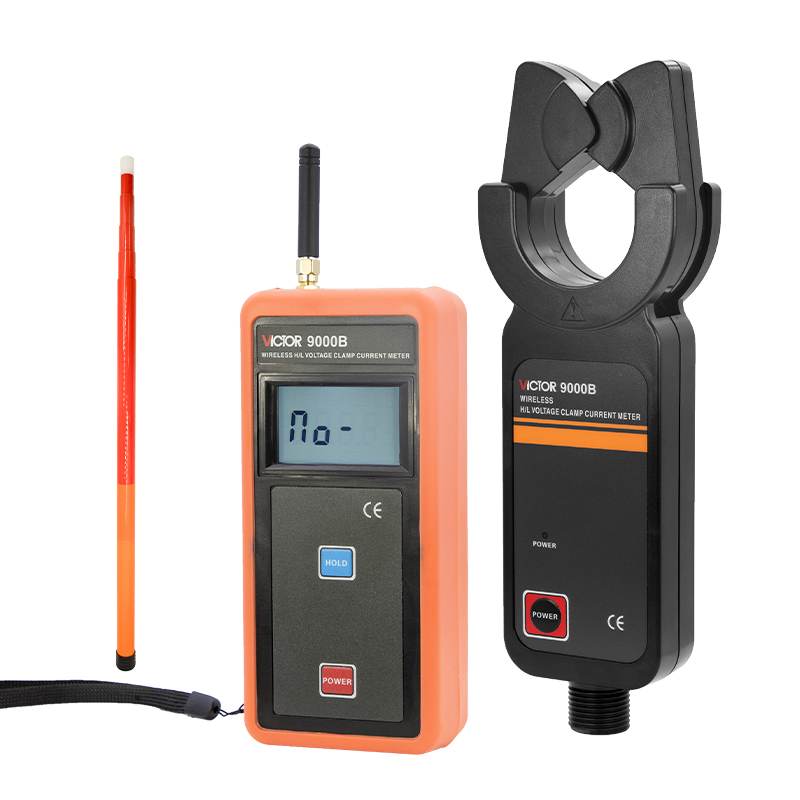

VICTOR9000 Series H/L Voltage Clamp Meter has broken through the traditional structure, which is specially well-designed for measuring high voltage current, adopting the latest CT technology and integrated mask digital technology, formed by composition of a special use clamp meter with a high-voltage insulation rod, as to VICTOR9000B type --- wireless transmission of test data, it is equipped with wireless receivers, which can be received inside the 30-meter line measured data. If not using an insulation rod, it can be also used as a high precision low-voltage clamp meter, or an alternating current meter, which can accurately measure0.1mA of current or leakage current.

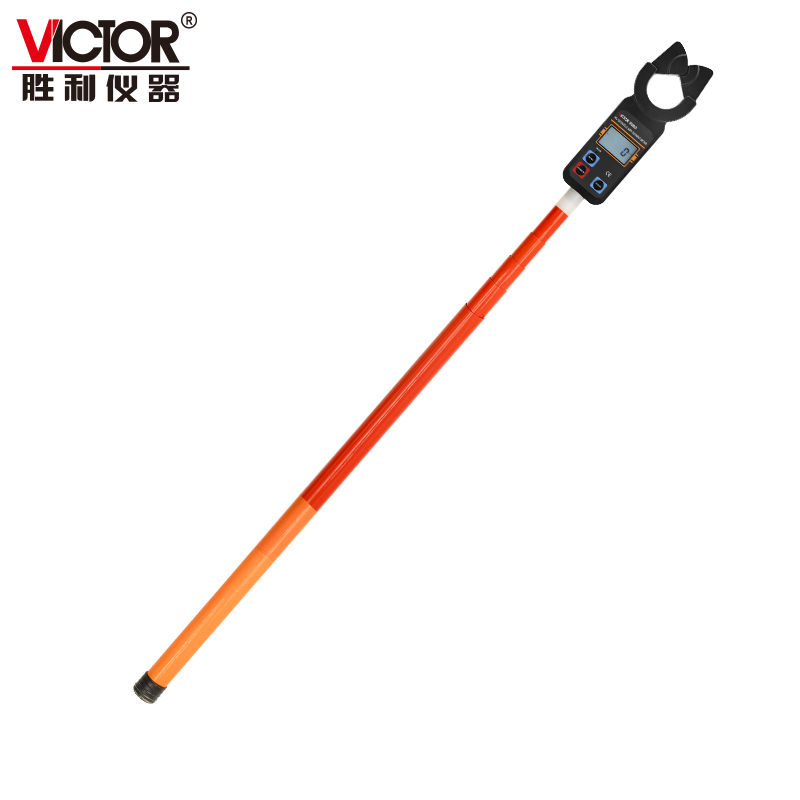

VICTOR9000 Series H/L Voltage Clamp Meter has aninnovative integrated design between transducer clamp and transducer domain, ensuring the high-precision, high-reliability, and high-stability on constant test perennially. VICTOR9000 Series H/L Voltage Clamp Meter is connected with insulation rod, which can be used for measuring high voltage current that is below 23KV, on-line current measurement, also having peak maintenance, data preservation, data storage, wireless transmission and other functions, and its special clamp meter can make it easier for clamping or evacuating the tested wire through pressing or pulling back the insulation rod, time-saving and fast, widely used in transformer substation, power plant, industrial and mining enterprises as well as the inspection station and electrician maintenance departments for electrical current detection and field electrical operations. It can also replace the H/L voltage transforming ratio tester, that is, to detect the high and low current for primary circuit and secondary circuit separately, and then calculate to conclude the change of high and low pressure. The insulation rod is light and convenient, with the advantages of anti-moisture, high temperature resistance, anti-impact, bending resistance, high insulation, flexibility and other characteristics.

Specifications

Specification
Model	9000	9000B
Function	High/Low voltage AC current	High/Low voltage AC current
Transmission distance	N/A	Max. distance 30m
Measuring range	0.00mA～1200A (50/60Hz automatic)	0.00mA～1200A (50/60Hz automatic)
Resolution	1mA	1mA
Accuracy	0.00mA~299mA: ±1%±3	0.00mA~299mA: ±1%±3
	0.30A~9.99A: ±1.5%±5	0.30A~9.99A: ±1.5%±5
	10.0A~199.9A: ±2%±5	10.0A~199.9A: ±2%±5
	200A~399A: ±2.5%±5	200A~399A: ±2.5%±5
	400A~600A : ±3%± 5	400A~600A : ±3%± 5
	601A~1200A: ±4%± 5	601A~1200A: ±4%± 5
Sampling speed	2 times/s	2 times/s
Live voltage	Under 60KV insulated wire test (Test with insulation rod)，Under 35kV bare wire

Features
Model	9000/9000B
Data storage	99 Groups
Peak hold	√
Date hold	√
Overflow indication	√
Auto power off	√
Clamp size	φ48mm

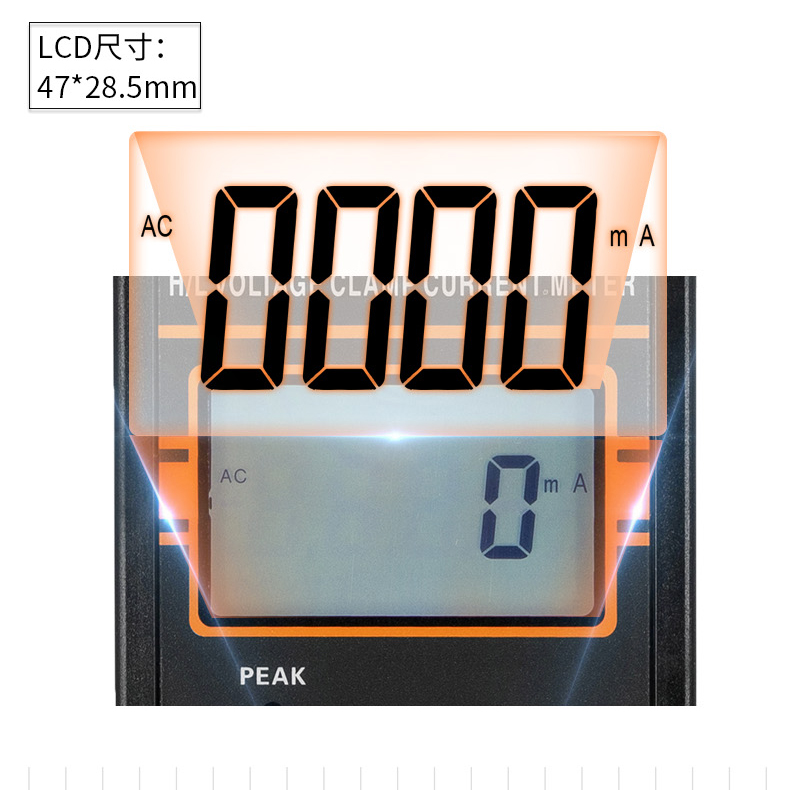

Display	4 digits LCD ,47*28.5mm
Backlight	√
Low battery indication	√
Insulation	AC 100kV/rms (Between the 5th insulation rod and the clamp center)
Working condition	(-25～40)℃, below 80%Rh
Storage condition	(-10～60)℃, below 70%Rh

General Information
Model	9000	9000B
Power supply	1.5V AAA*4	Main Unit:1.5V AAA4 Clamp: 1.5V AAA4
Product size	76mmx255mmx31mm	Main Unit:78mm×165mm×42mm Clamp : 76mm×255mm×31mm
Product weight	3450g	Main Unit:330g Clamp: 335g

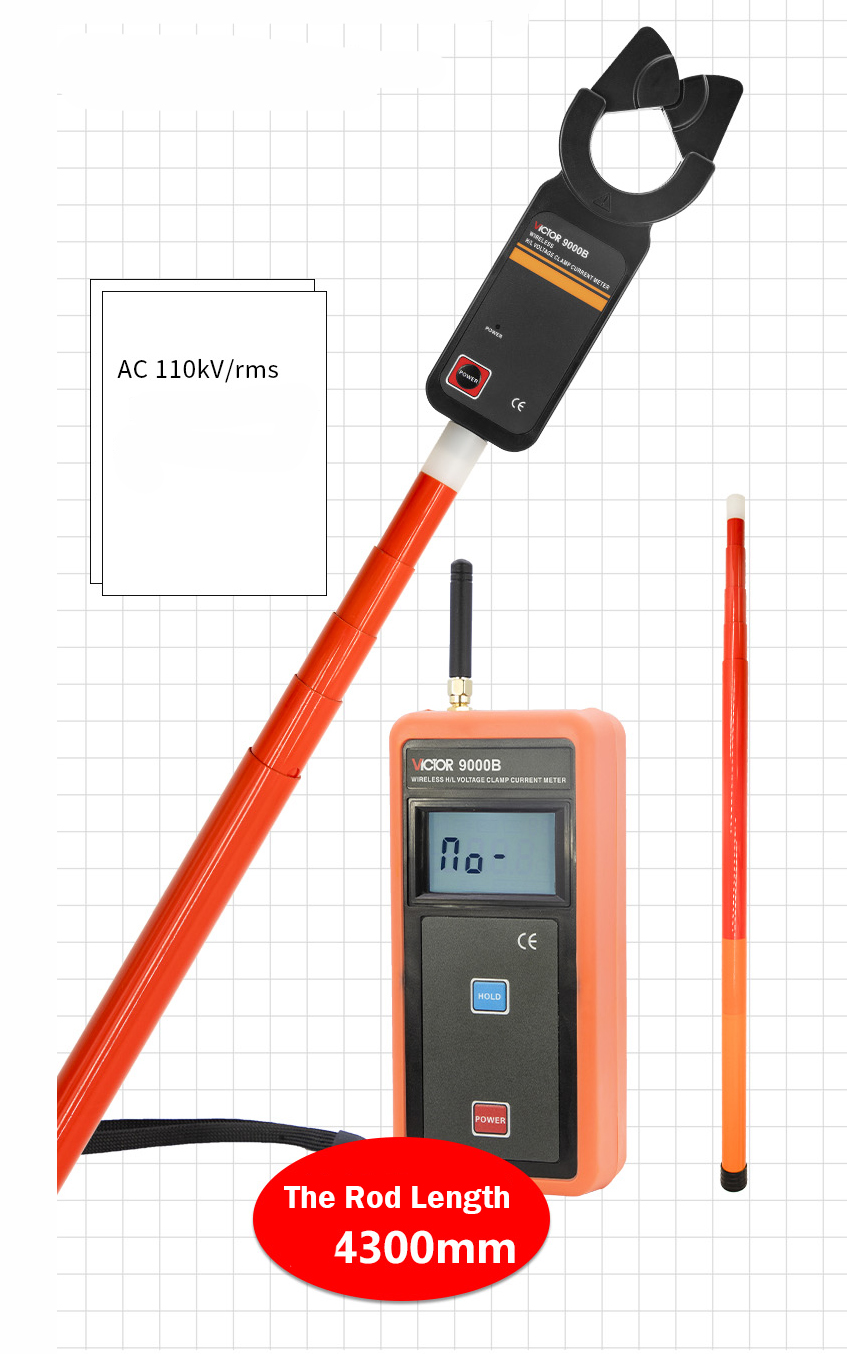

Insulation rod size	φ32mm,1m/pc x5pcs	φ32mm,1m/pc x5pcs

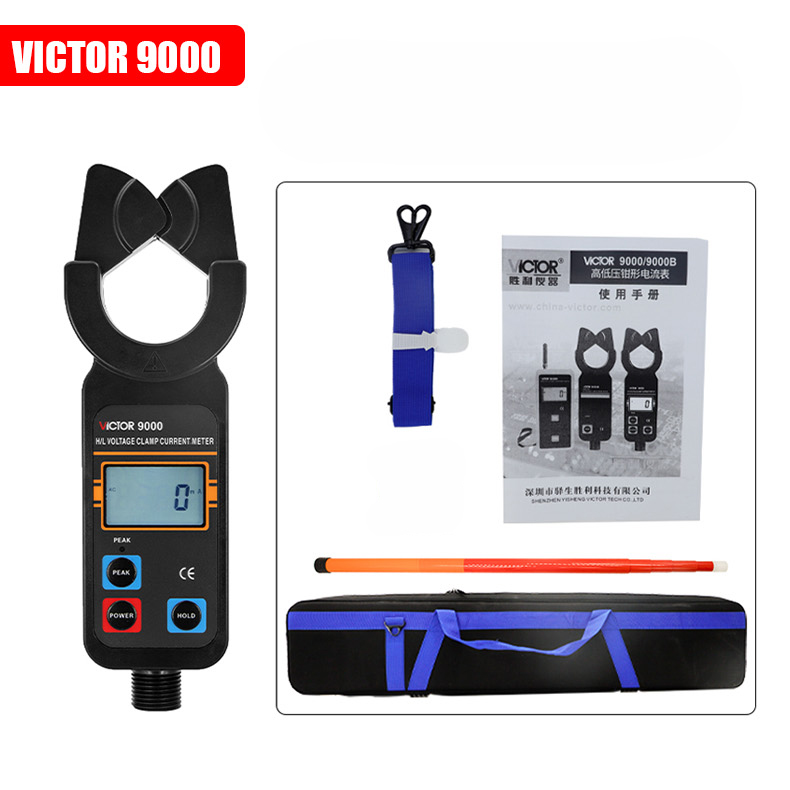

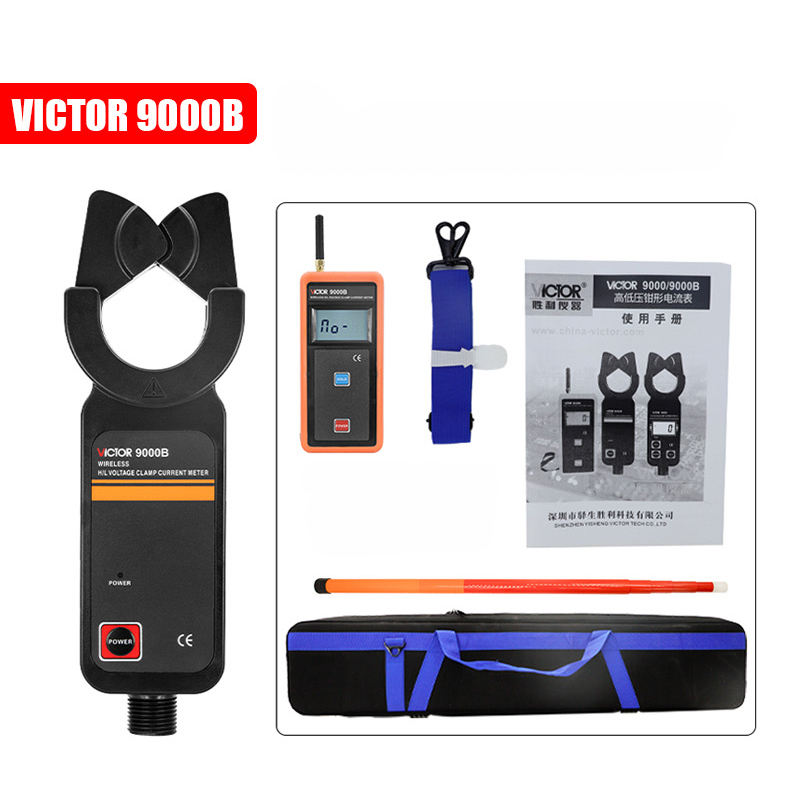

Standard accessories	Clamp x1, Insulation rod(1m) x5, batteries, manual, pouch	Receiver x1, Clamp x1, Insulation，rod(1m) x5, battery, manual, pouch
