Specifications |
||
|
Source function |
Range |
Basic accuracy |
|
DC current (DC mA) |
0.000~22.000mA |
0.01%+0.015% |
|
Analog transmitter (SIMULATE) |
0.000~22.000mA |
0.01%+0.015% |
|
Measurement function |
||
|
DC voltage (DCV) |
-2.000~28.000V |
0.01%+0.01% |
|
DC current (DC mA) |
-4.000~33.000mA |
0.01%+0.01% |
|
Loop power supply (LOOP) |
24V |
10% |
|
HART communication |
--- |
√ |
|
Features |
|
|
Model |
709H |
|
Protection grade |
IP65 |
|
Display |
3.2inch TFT color display |
|
Backlight |
√ |
|
Backlight brightness adjustment |
√ |
|
25%、100% step output |
√ |
|
Automatic ramp |
√ |
|
Automatic step |
√ |
|
mA / %Switch the display |
√ |
|
Auto power-off |
√ |
|
Low battery indication |
√ |
|
IRDA, USB communication interface. |
√ |
|
Remote control by the software |
√ |
|
General Information |
|
|
Model |
709H |
|
Power supply |
4×1.5V AAA or DC 6V adapter |
|

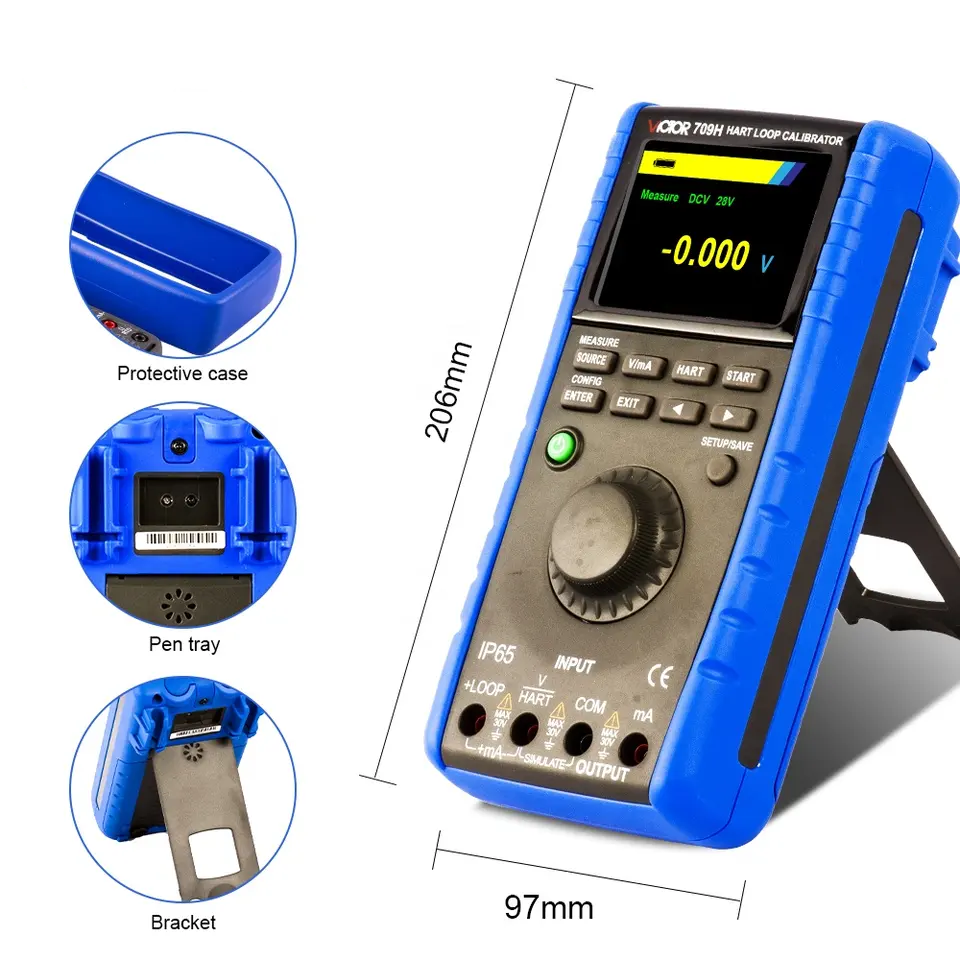

Product size |
206mm × 98mm × 70 mm |
|
Product weight |
600g |
|

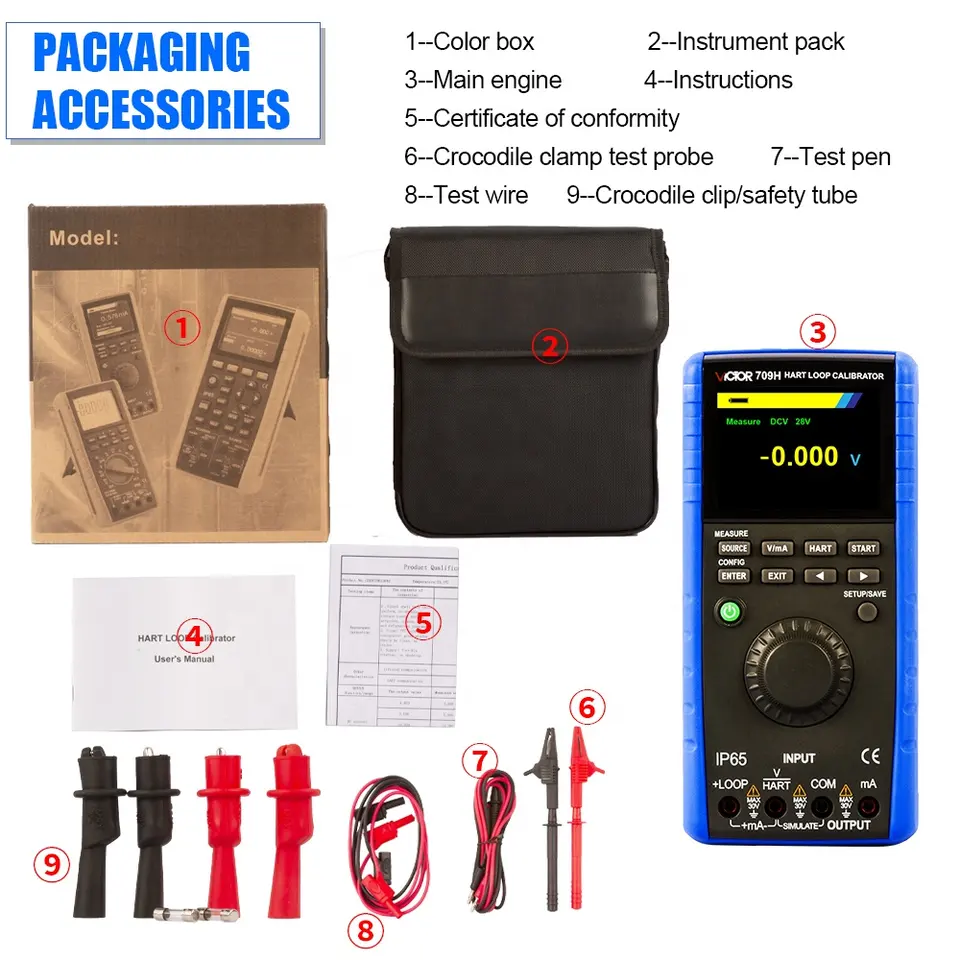

Standard accessories |
Manual, test leads, alligator clips, fuse, thermocouple adapter |
709H User's Manual
