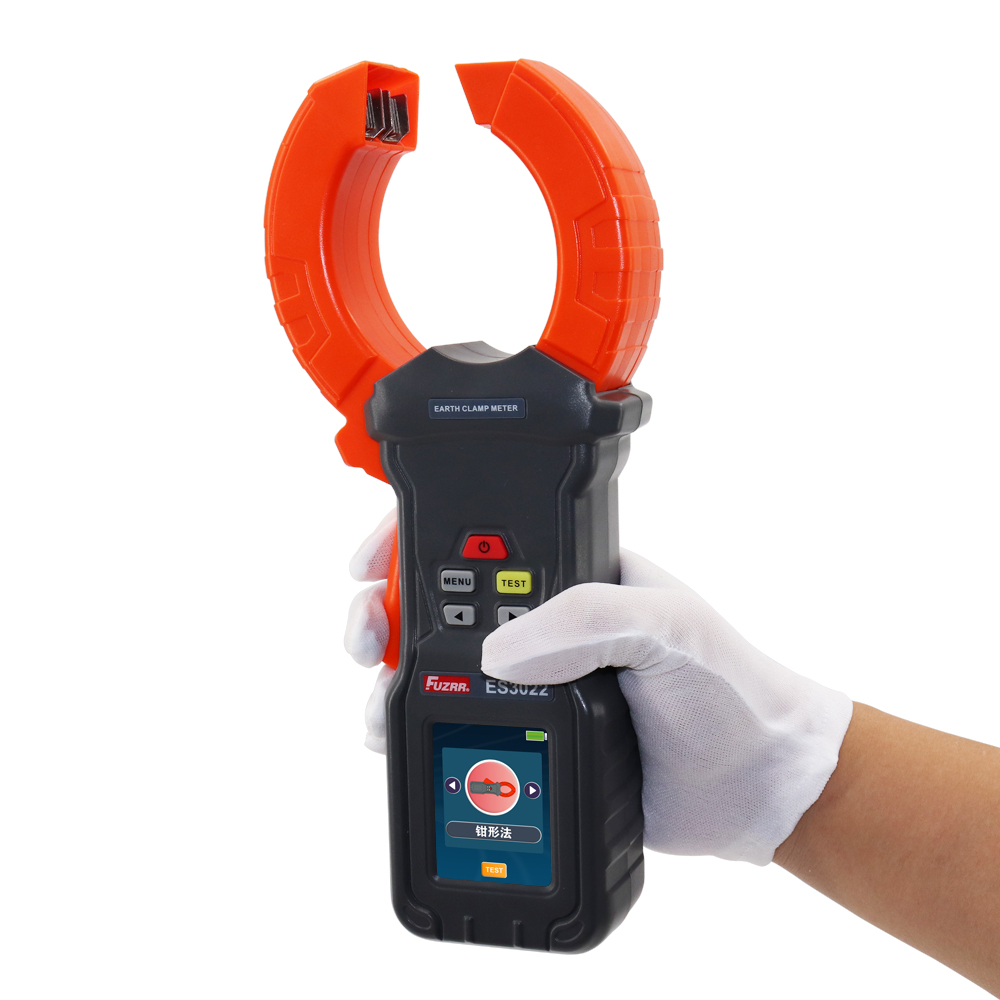

Ground pile clamp earth resistance tester also name Loop resistance tester,used for grounding resistance test.
This instrument uses 2.4-inch color screen design, with clamp resistance, three or four wire resistance, AC voltage, current measurement functions, and also has data storage, data access, alarm, automatic shutdown and other functions.
This meter is beautiful and high-grade, wide range, high resolution, convenient operation, easy to carry, accurate, reliable, stable performance, strong anti-interference ability.It also has a shock-proof, dust-proof, and moisture-proof structure. It is a commonly used and indispensable instrument for telecommunications, electric power, meteorology, computer rooms, oil fields, electronic mechanical installation and maintenance, and industrial enterprises that use electricity as industrial power or energy. It is suitable for measuring grounding resistance of various telecommunications, electricity, meteorology, computer rooms, oil fields, power distribution lines, transmission lines of iron towers, gas stations, factory grounding grids, lightning rods, etc.
The ground-pile clamp ground resistance tester is controlled by a microprocessor and can accurately detect ground resistance. It uses fast filtering technology to minimize interference. At the same time with data storage and data upload functions.
|
Specifications |
|||
|
Model |
Range |
Resolution |
Accuracy |
|
Clamp method |
0.02Ω-9.99Ω |
0.01Ω |
±2%rdg±0.1Ω |
|
10.0Ω-99.9Ω |
0.5Ω |
±3%rdg±0.5Ω |
|
|
100Ω-199Ω |
1Ω |
±5%rdg±1Ω |
|
|
200Ω-299Ω |
5Ω |
±10%rdg±5Ω |
|
|
300-699Ω |
10Ω |
±15%rdg±10Ω |
|
|
700Ω-999Ω |
20Ω |
±20%rdg±20Ω |
|
|
1.00KΩ-1.19KΩ |
30Ω |
±25%rdg±30Ω |
|
|
1.20KΩ-2.00KΩ |
50Ω |
±35%rdg±50Ω |
|
|
3 or 4 wire method |
0.01Ω-9.99Ω |
0.01Ω |
±2%rdg±0.2Ω |
|
10.0Ω-99.9Ω |
0.1Ω |
±2%rdg±1Ω |
|
|
100Ω-999Ω |
1Ω |
±2% rdg±15Ω |
|
|
1.00KΩ-9.99KΩ |
0.01KΩ |
±2% rdg±0.1KΩ |
|
|
10.0KΩ-30.0KΩ |
0.1KΩ |
±3% rdg±0.5KΩ |
|
|
AC current |
0.100mA -0.999mA |
0.001mA |
±2.5% rdg±0.1mA |
|
1.00mA -9.99mA |
0.01mA |
±2.5% rdg±0.5mA |
|
|
10.0mA -99.9mA |
0.1mA |
±2.5% rdg±1mA |
|
|
0.100A-0.999A |
0.001A |
±2.5% rdg±0.1A |
|
|
1.00A-9.99A |
0.01A |
±2.5% rdg±0.5A |
|
|
10.0A-60.0A |
0.1A |
±2.5% rdg±1A |
|
|
Ground voltage |
1.00V-9.99V |
0.01V |
±2.5% rdg±0.1V |
|
10.0V-99.9V |
0.1V |
±2.5% rdg±1V |
|
|
100V-600V |
1V |
±2.5% rdg±5V |
|
|
Selection method |
0.30Ω-9.99Ω |
0.01Ω |
±2% rdg±0.3Ω |
|
10.0Ω-99.9Ω |
0.1Ω |
±2% rdg±1Ω |
|
|
100Ω-999Ω |
1Ω |
±2.5% rdg±15Ω |
|
|
1.00KΩ-3.00KΩ |
0.01KΩ |
±3% rdg±0.1KΩ |
|
|
Soil resistivity（ρ） |
0.00Ωm～99.99Ωm |
0.01Ωm |
ρ=2πaR |
|
100.0Ωm～999.9Ωm |
0.1Ωm |
||
|
1000Ωm～9999Ωm |
1Ωm |
||
|
10.00kΩm～99.99kΩm |
10Ωm |
||
|
100.0kΩm～999.9kΩm |
100Ωm |
||
|
1000kΩm～9999kΩm |
1kΩm |
||
|
Features |
|||
|
Model |
ES3022 |
ES3022E |
ES3022F |
|
Clamp resistance range |
0.00Ω-1500Ω |
0.00Ω-1800Ω |
0.00Ω-2000Ω |
|
Leakage current range |
0.000mA-40A |
0.000mA-50A |
0.000mA-60A |
|
Current resolution |
1uA |
1uA |
1uA |
|
3-4-wire method range |
0.00Ω-3000Ω |
0.00Ω-30kΩ |
0.00Ω-30kΩ |
|
Soil resistivity range |
--- |
0.00Ω-9999kΩm |
0.00Ω-9999kΩm |
|
Ground voltage range |
600V |
600V |
600V |
|
Bluetooth |
--- |
--- |
√ |
|
Clamp size |
68mm |
68mm |
68mm |
|
TFT color display with backlight |
46x29mm |
46x29mm |
46x29mm |
|
Sampling time |
1 time/sec |
1 time/sec |
1 time/sec |
|
Data storage |
500 groups |
500 groups |
500 groups |
|
USB data upload function |
√ |
√ |
√ |
|
Real-time battery power indicator |
√ |
√ |
√ |
|
Alarm function |
√ |
√ |
√ |
|
Low battery voltage indication |
√ |
√ |
√ |
|
Overload protection |
√ |
√ |
√ |
|
General Information |
|||
|
Model |
ES3022 |
ES3022E |
ES3022F |
|
Versions |
Basic version |
Soil resistivity |
Bluetooth version |
|
Power supply |
DC 3.7 Lithium battery |
||
|
Product size |
273mm×106mm×53mm |
||
|
Product weight |
975g (including battery) |
||
|
Standard accessories |
USB cable, charger, software CD, manual, test leads, tool box，auxiliary ground rod |
||
ES3022 ES3022E ES3022F User's Manual
