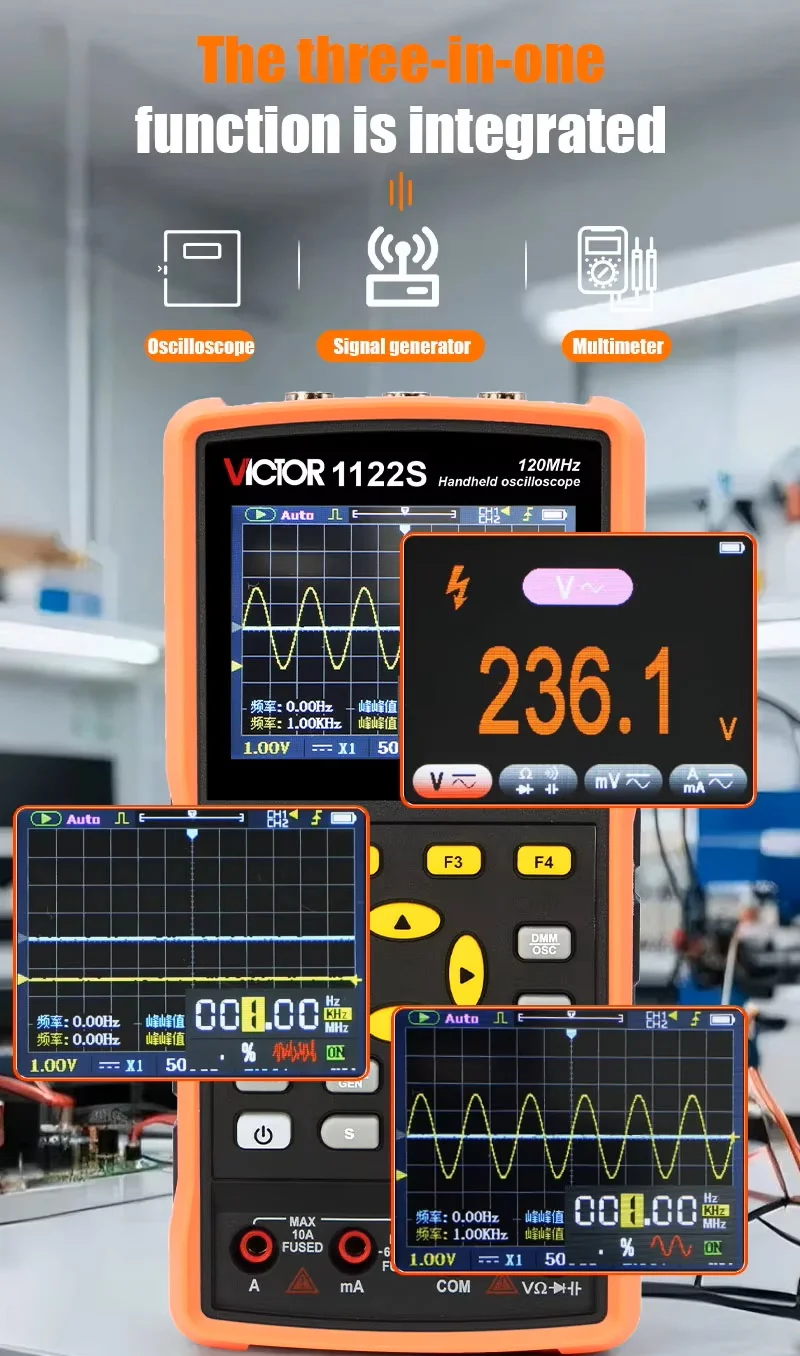

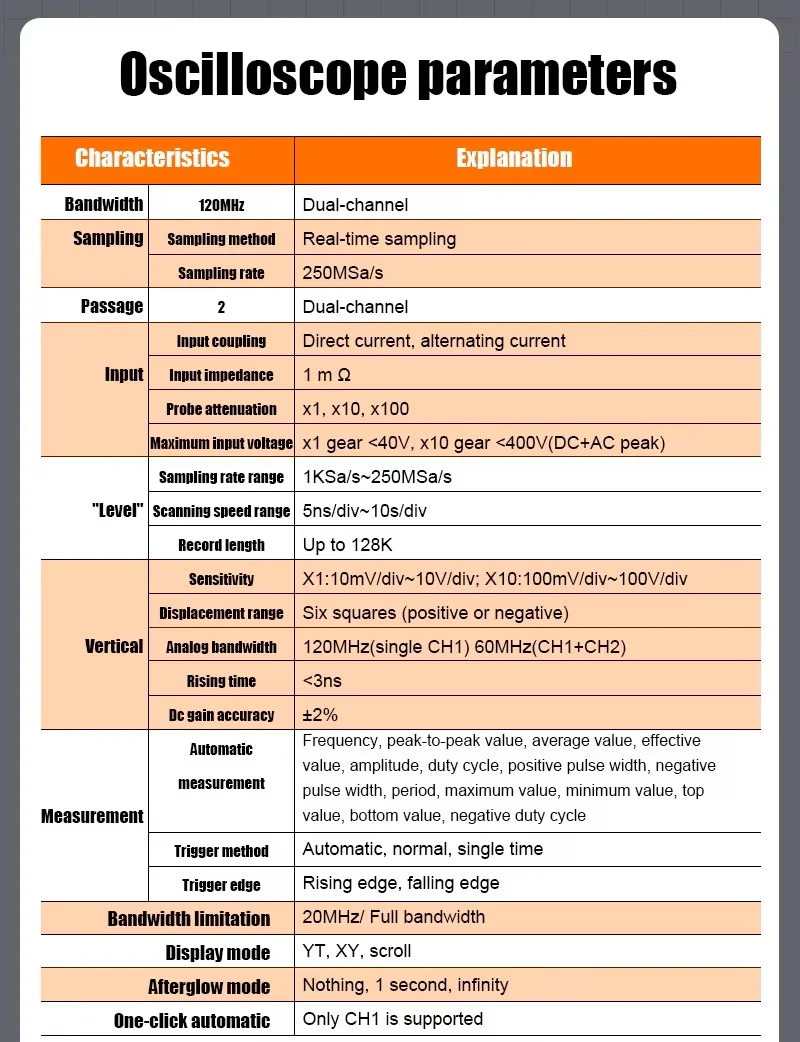

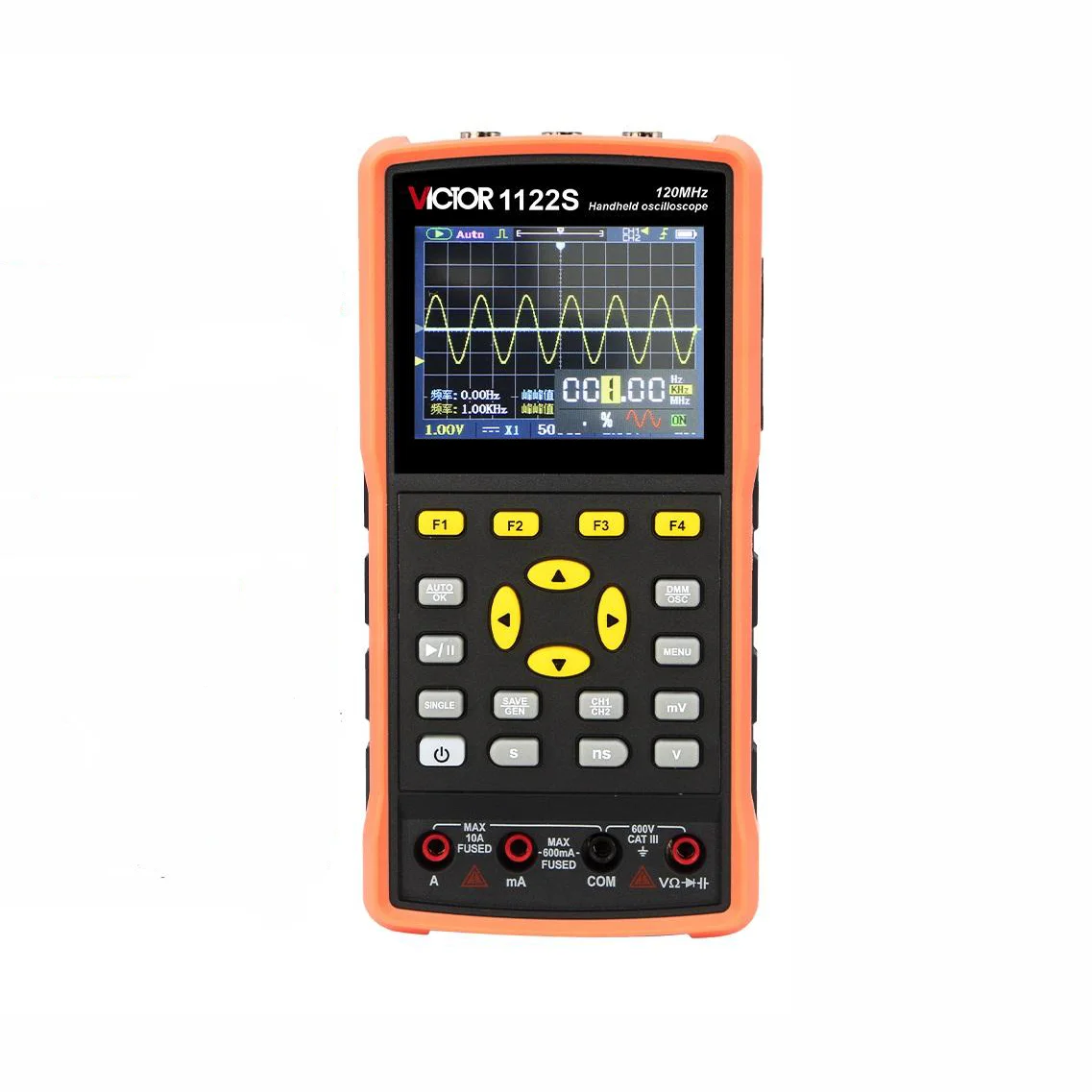

Oscilloscope Functions
1. High Bandwidth & Sampling Rate
120MHz bandwidth (single channel) with 250MSa/s real-time sampling rate – captures high-frequency signals accurately.
2. Dual-Channel Input
Two independent channels – compare signals side by side. Bandwidth: 120MHz (CH1 alone) or 60MHz (CH1+CH2 simultaneously).
3. Deep Memory
Up to 128KB record length – captures long signal sequences without losing detail.

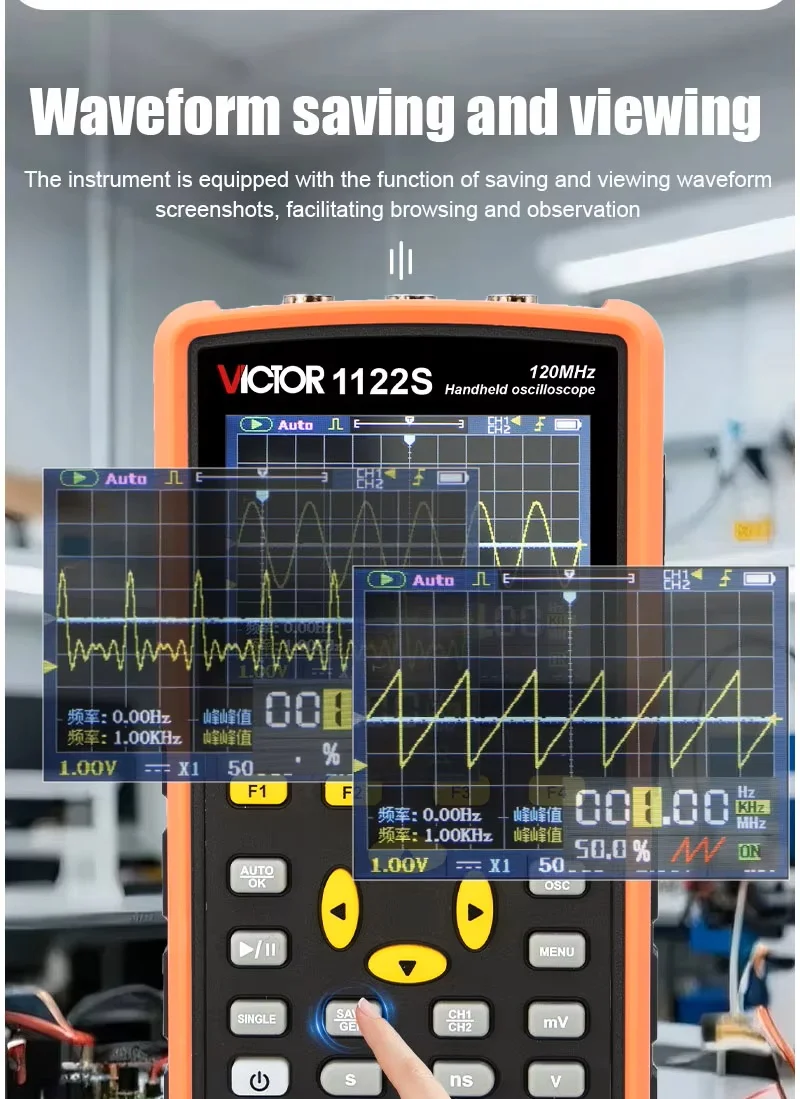

4. Multiple Display Modes
Supports YT, XY, and scroll modes – flexible viewing for different measurement needs.
5. Rich Automatic Measurements
Measures frequency, peak-to-peak, average, RMS, amplitude, duty cycle, pulse width, period, max/min, top/bottom values, and negative duty cycle – 14+ parameters.

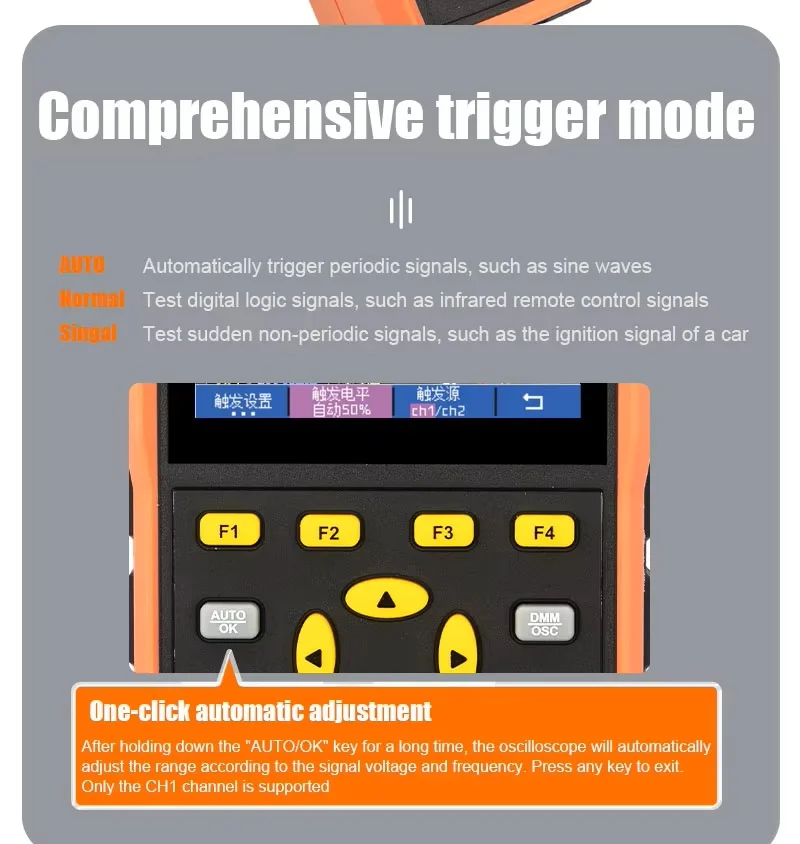

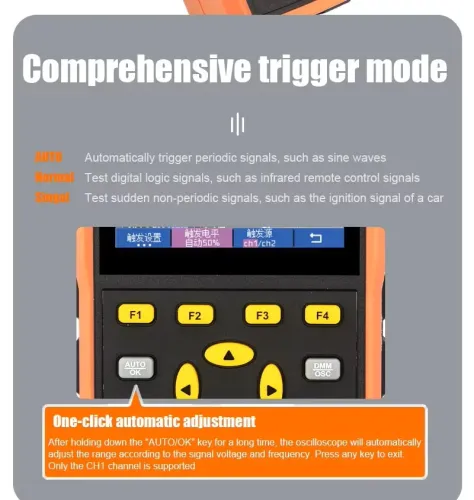

6. Flexible Trigger Options
Trigger modes: automatic, normal, single. Trigger edge: rising or falling.
7. Bandwidth Limiting
Selectable 20MHz or full bandwidth – reduces high-frequency noise when needed.

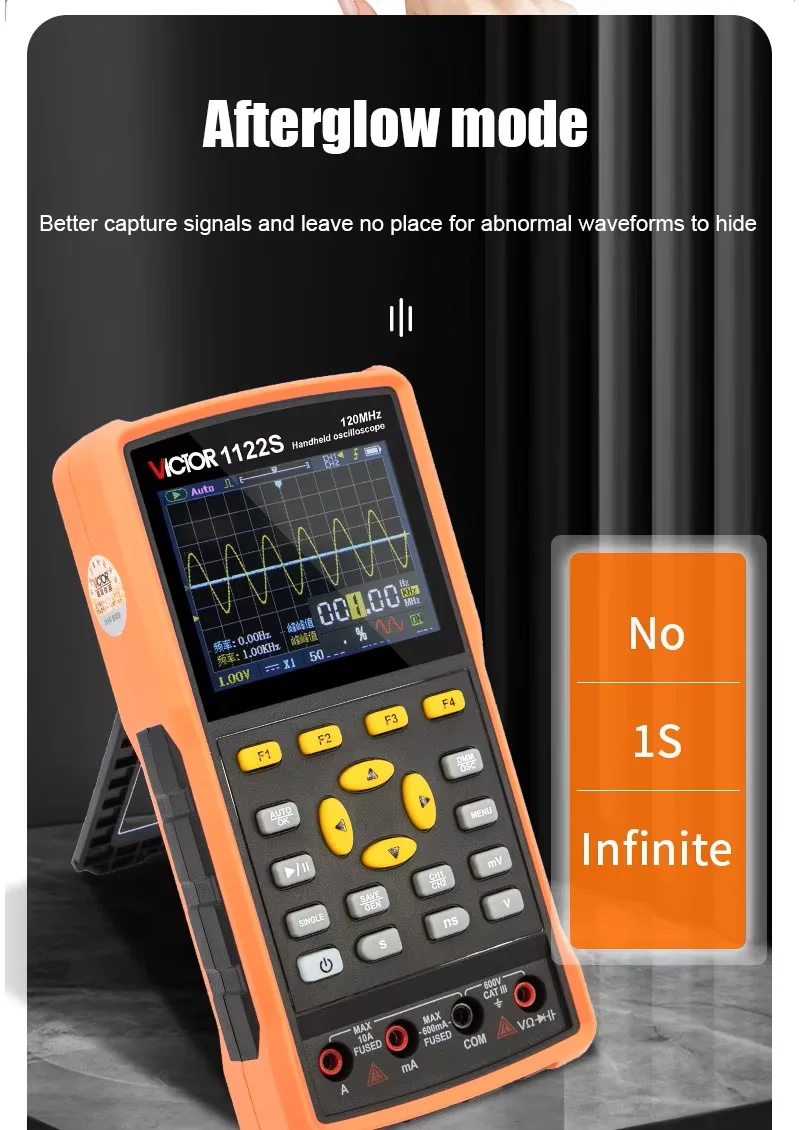

8. Afterglow Mode
Options: off, 1 second, or infinite – useful for capturing intermittent or complex signals.

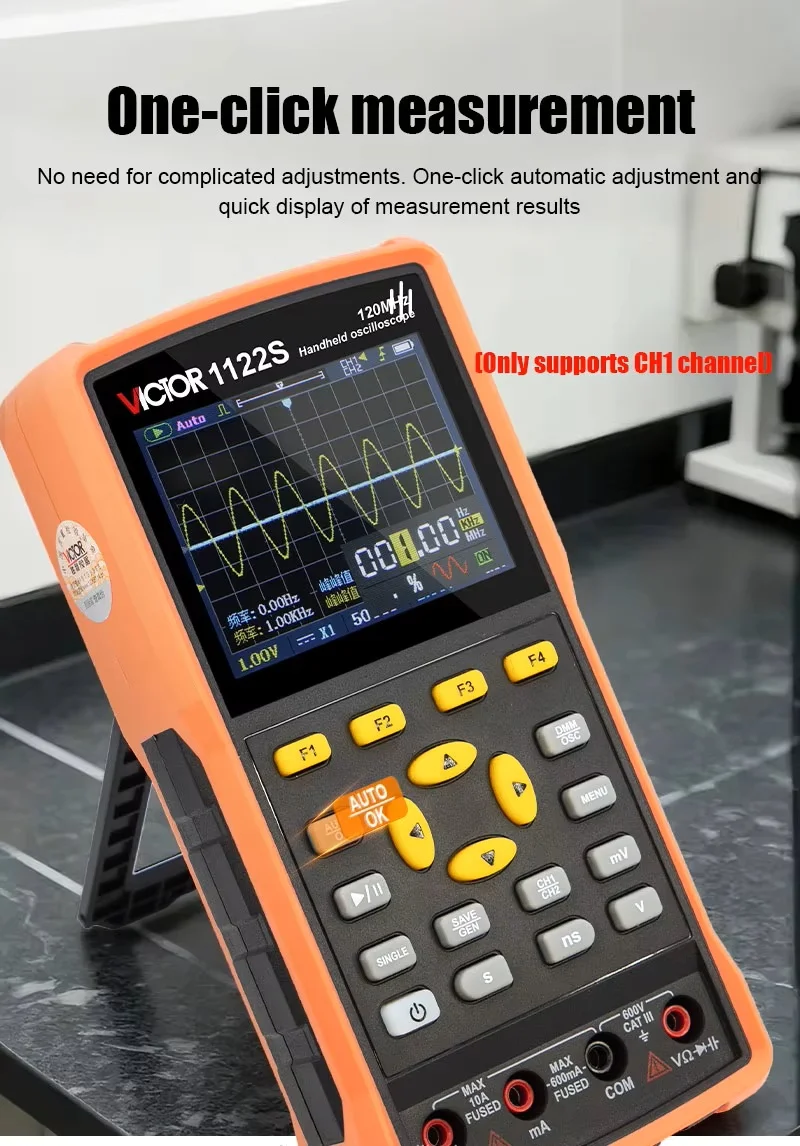

9. One-Key Auto Setup
Automatic waveform optimization on CH1 – speeds up basic measurements.
10. High Input Voltage Protection
x1 probe: <40V; x10 probe: <400V (DC+AC peak) – protects the device from accidental overload.
11. Fast Rise Time
<3ns rise time – responds quickly to fast-edged signals.
Multimeter Functions
12. 6000-Count True RMS Display
High-resolution color screen with true RMS readings – accurate for non-sinusoidal AC signals.

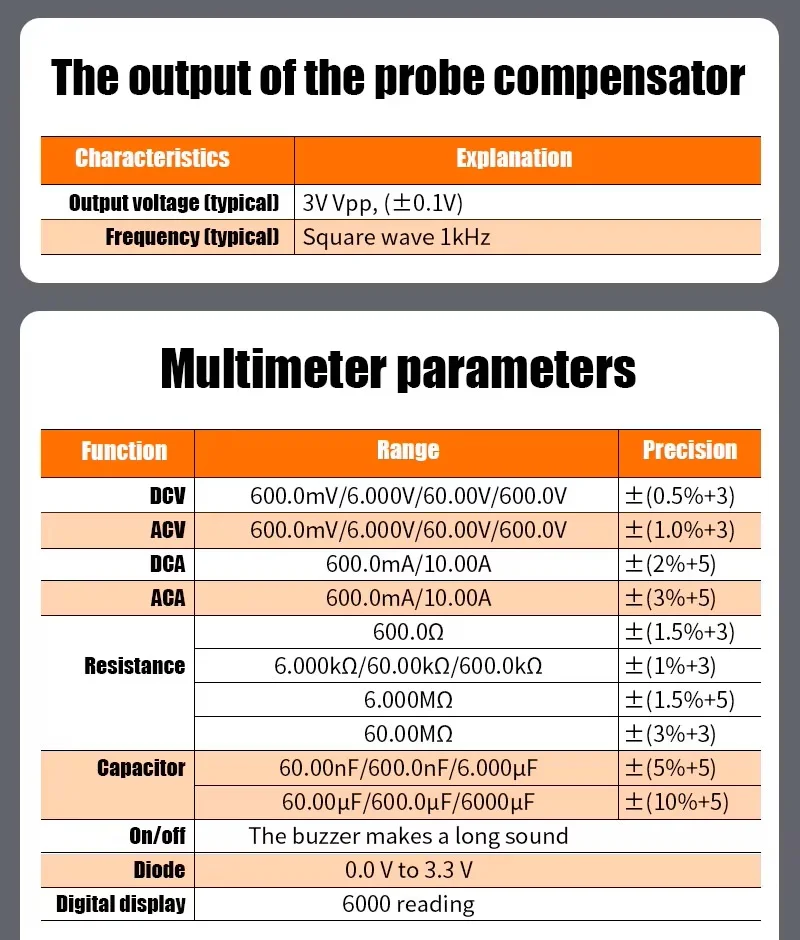

13. Comprehensive Measurement Range
-
DC voltage: 600.0mV to 600.0V (±0.5%+3)
-
AC voltage: 600.0mV to 600.0V (±1.0%+3)
-
DC/AC current: up to 10A
-
Resistance: up to 60MΩ
-
Capacitance: up to 6000μF
-
Diode & continuity buzzer
14. Auto-Ranging
No need to manually select ranges – simplifies operation.

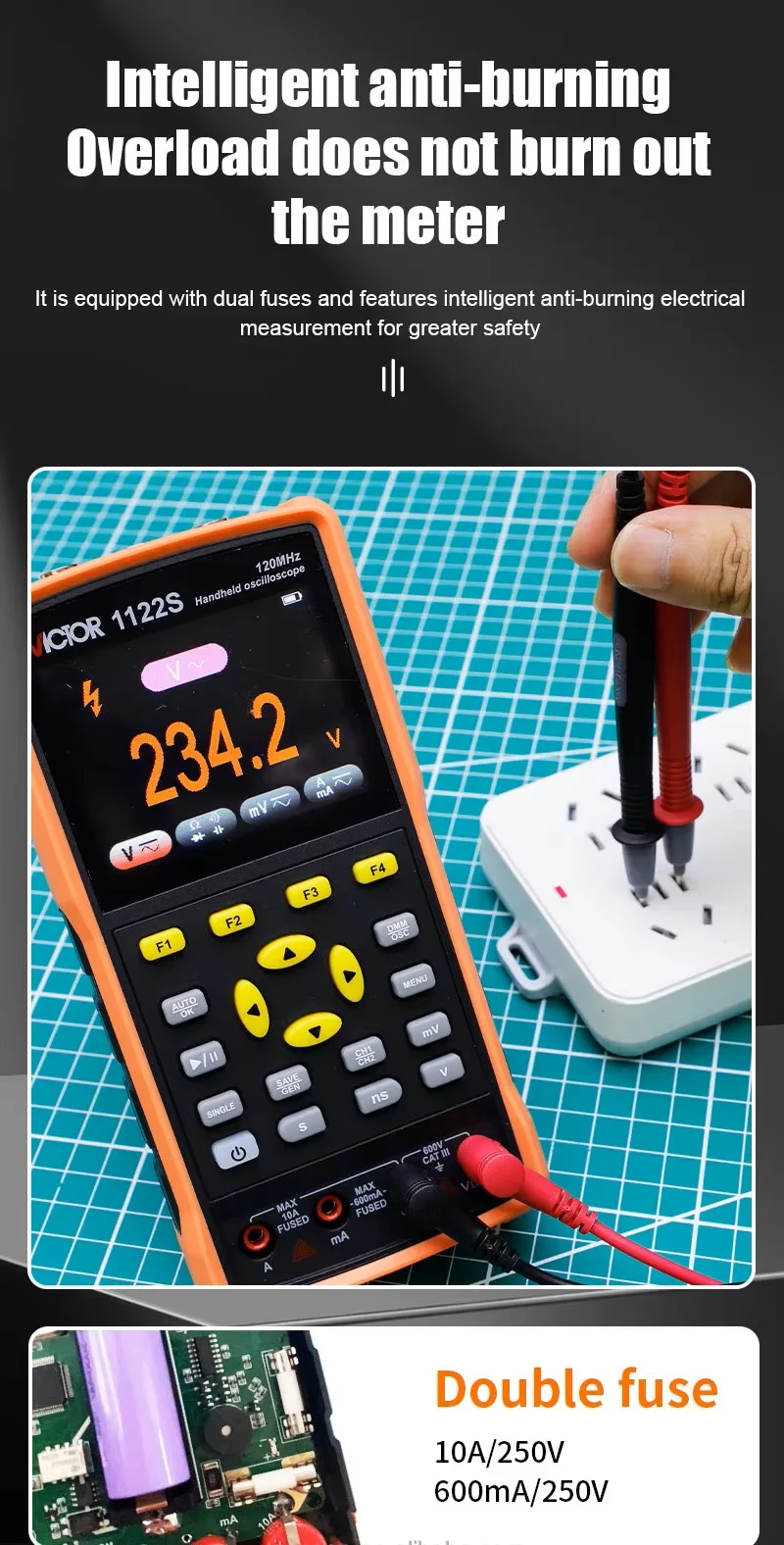

15. High Voltage/Current Limits
Max input: 600V AC/DC; max current: 10A AC/DC – suitable for most electrical troubleshooting.

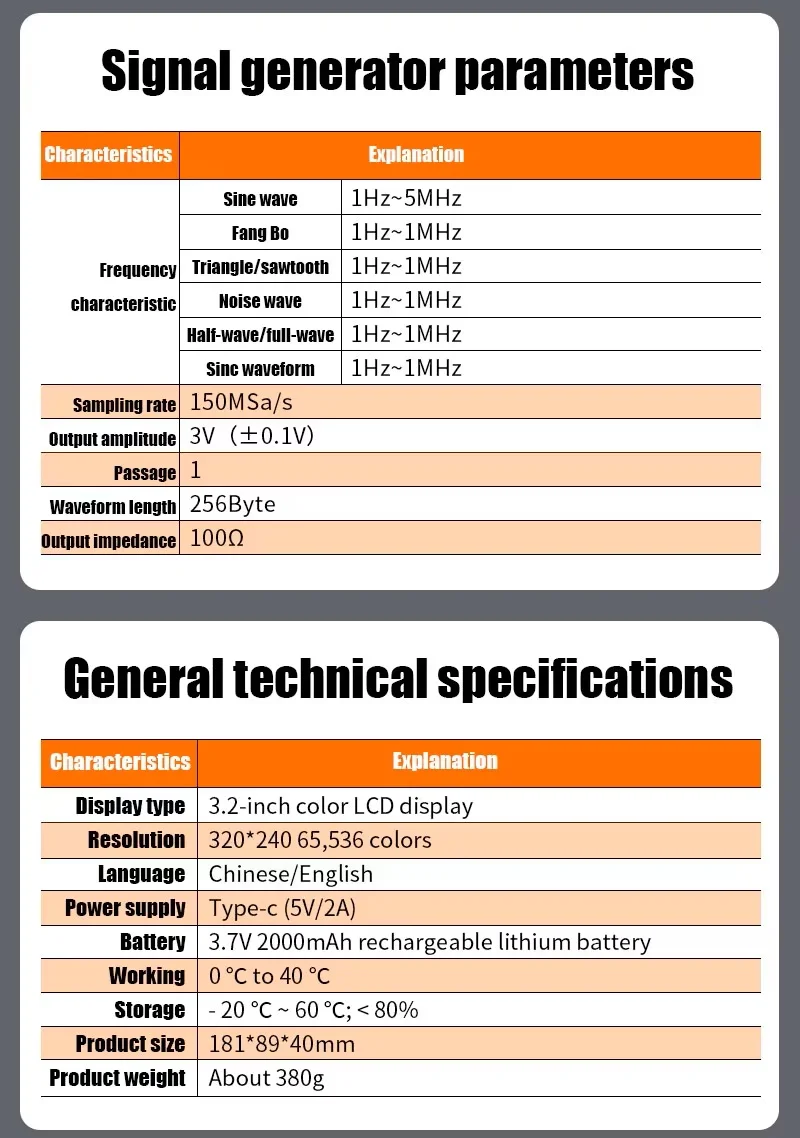

Signal Generator Functions
16. Wide Frequency Range
Sine wave up to 5MHz; square/triangle/sawtooth/noise/half-wave/full-wave/Sinc up to 1MHz.
17. High Sampling Rate
150MSa/s real-time sampling – produces clean, stable waveforms.

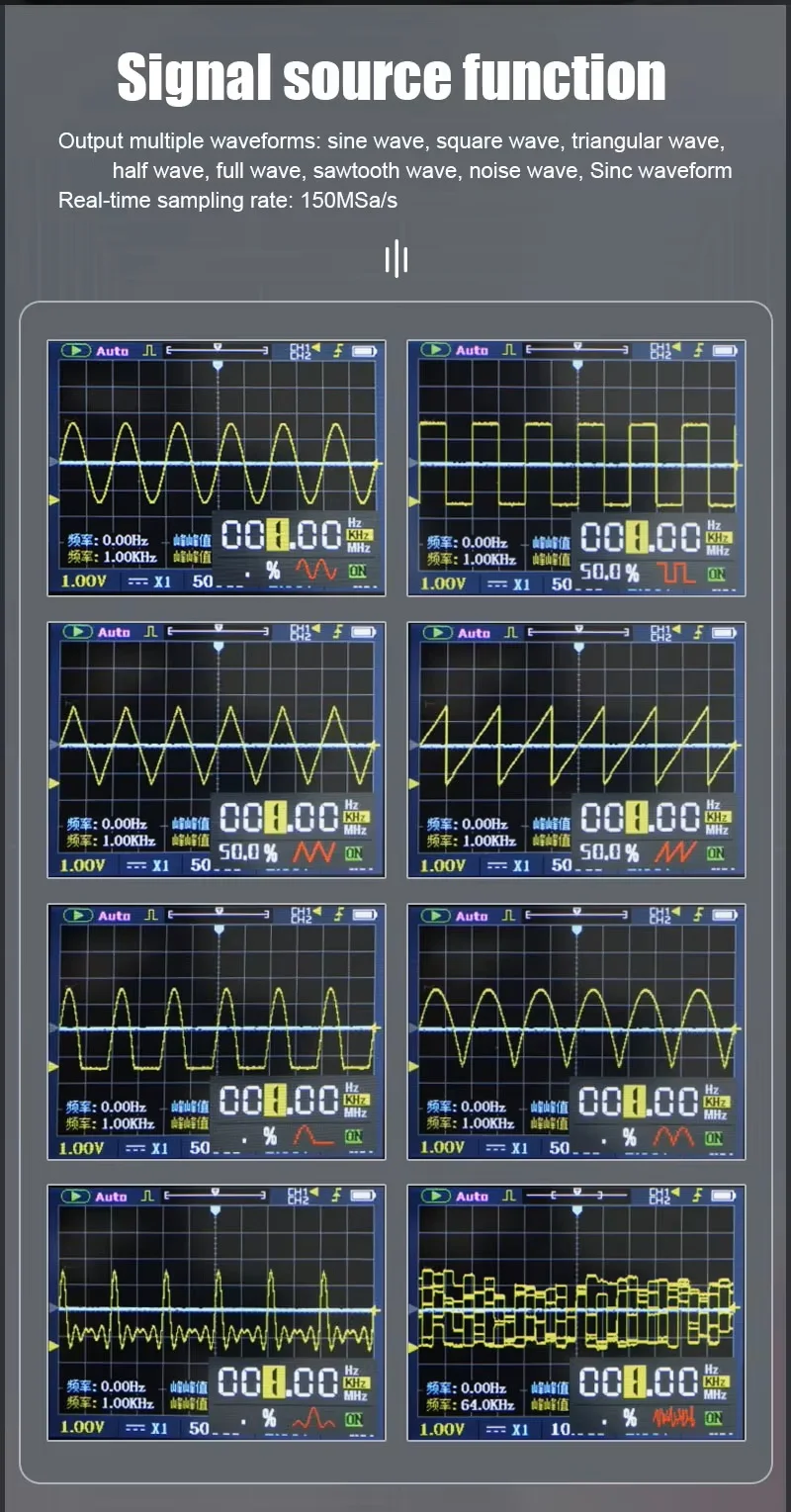

18. Eight Waveform Types
Sine, square, triangle, sawtooth, half-wave, full-wave, noise, and Sinc – versatile for circuit testing.
19. 1Hz Frequency Resolution
Fine adjustment capability for precise signal generation.
20. Fixed Output Amplitude
3Vpp (±0.1V) – consistent signal level for reliable testing.
21. Output Impedance
100Ω – standard for most signal generator applications.
General Features

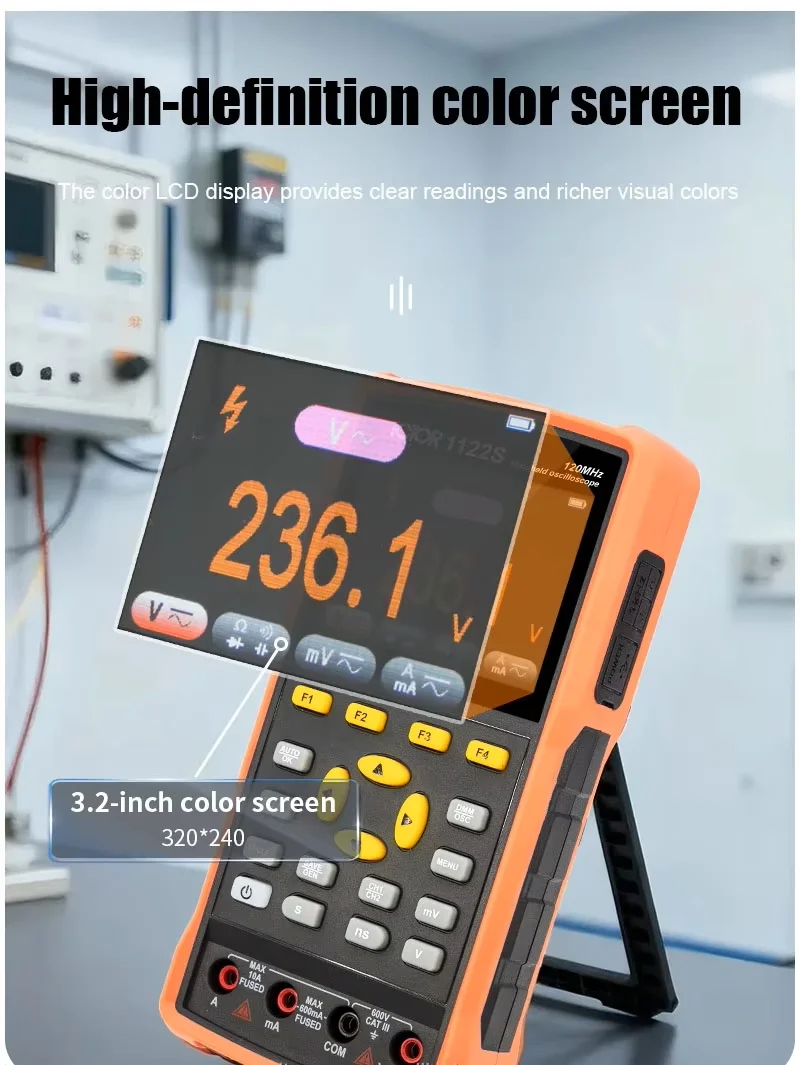

22. 3.2-Inch Color LCD
320×240 resolution, 65,536 colors – clear waveform and data display.
23. Bilingual Interface
Switchable between Chinese and English.
24. Rechargeable Battery
3.7V / 2000mAh lithium battery – portable for field use.
25. USB Type-C Power
5V/2A charging – uses common phone chargers and power banks.

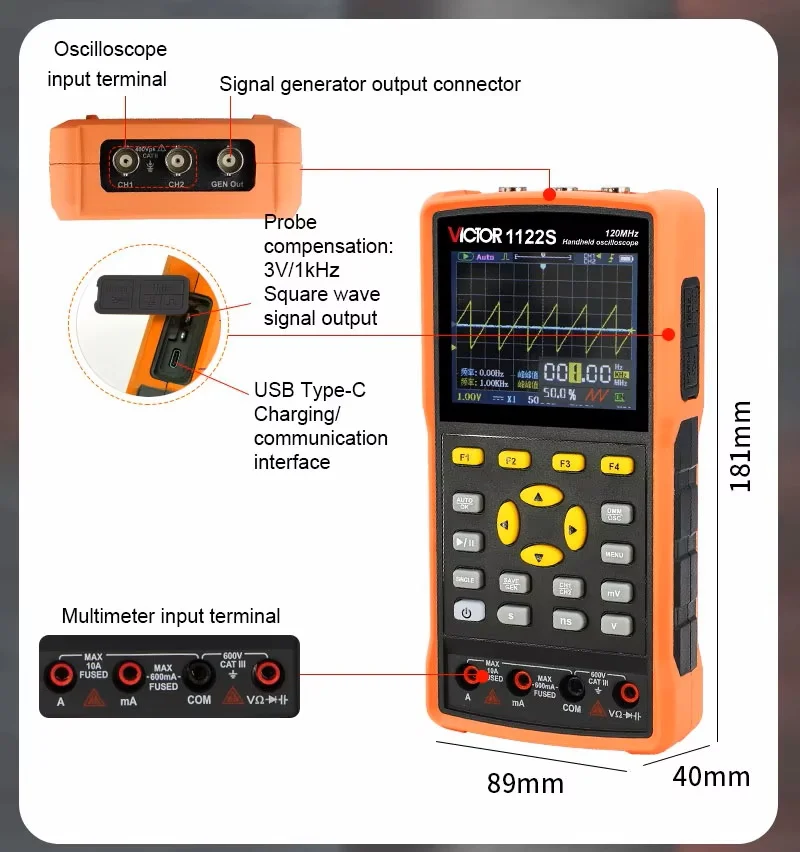

26. Probe Compensator Output
3Vpp, 1kHz square wave – calibrates passive probes for accurate measurements.
27. Compact & Lightweight
181×89×40mm, ~380g – easily fits in a tool bag.
28. Wide Operating Temperature
0°C to 40°C operating; -20°C to 60°C storage – durable for various environments.
