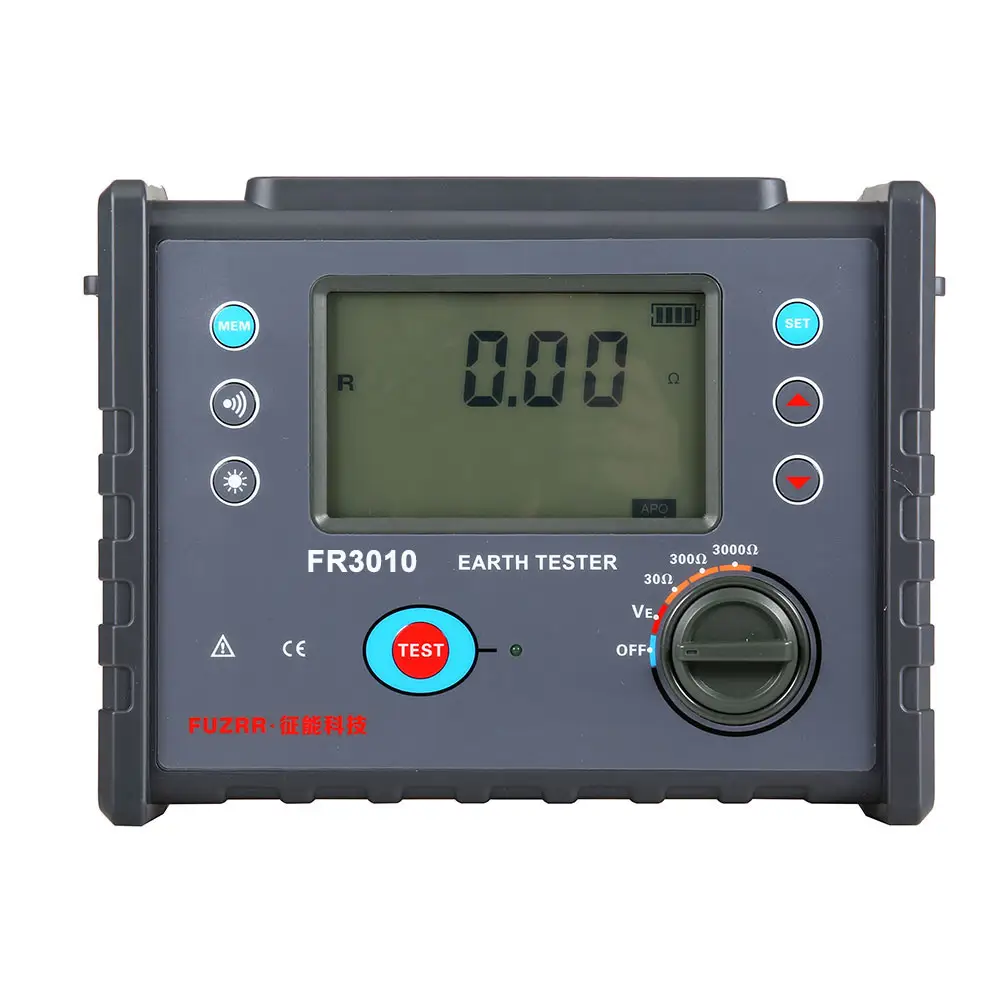

Digital grounding resistance tester, also known as the three-wire grounding resistance tester, grounding resistance meter, etc., is a commonly used meter for measuring grounding resistance. It adopts a large LCD gray-white screen backlight display and microprocessor technology to meet the requirements of two-wire and three-wire test resistance. Suitable for telecommunications, electricity, meteorology, computer rooms, oil fields, power distribution lines, iron tower transmission lines, gas stations, factory grounding networks, lightning rods and so on. Instrument testing is precise, fast, simple, stable and reliable.
The digital grounding resistance tester is controlled by the microprocessor and can automatically detect the connection status of each interface and the interference voltage and interference frequency of the ground network, and has the function of testing the auxiliary grounding resistance value. At the same time store 500 sets of data, resistance measurement range: 0.01Ω ~ 3000Ω, grounding voltage range: 0.01 ~ 600.0V
|
Specifications |
|||
|
Measuring Functions |
Measuring Range |
Accuracy |
Resolution |
|
Earth Resistance |
0.01Ω～30Ω |
±1.5%±5 |
0.01Ω |
|
30.1Ω～300Ω |
0.1Ω |
||
|
301Ω～3000Ω |
1Ω |
||
|
Earth Voltage |
0.01～10.00V AC |
±1.5%±3 |
0.01V |
|
10.1～100.0V |
0.1V |
||
|
101～600V |
1V |
||
|
General Information |
|
|
Model |
FR3010 |
|
Power supply |
DC 6V 1.5V LR14 battery |
|
Product size |
240mm×188mm×85mm |
|
Product weight |
1180g (including battery) |
|

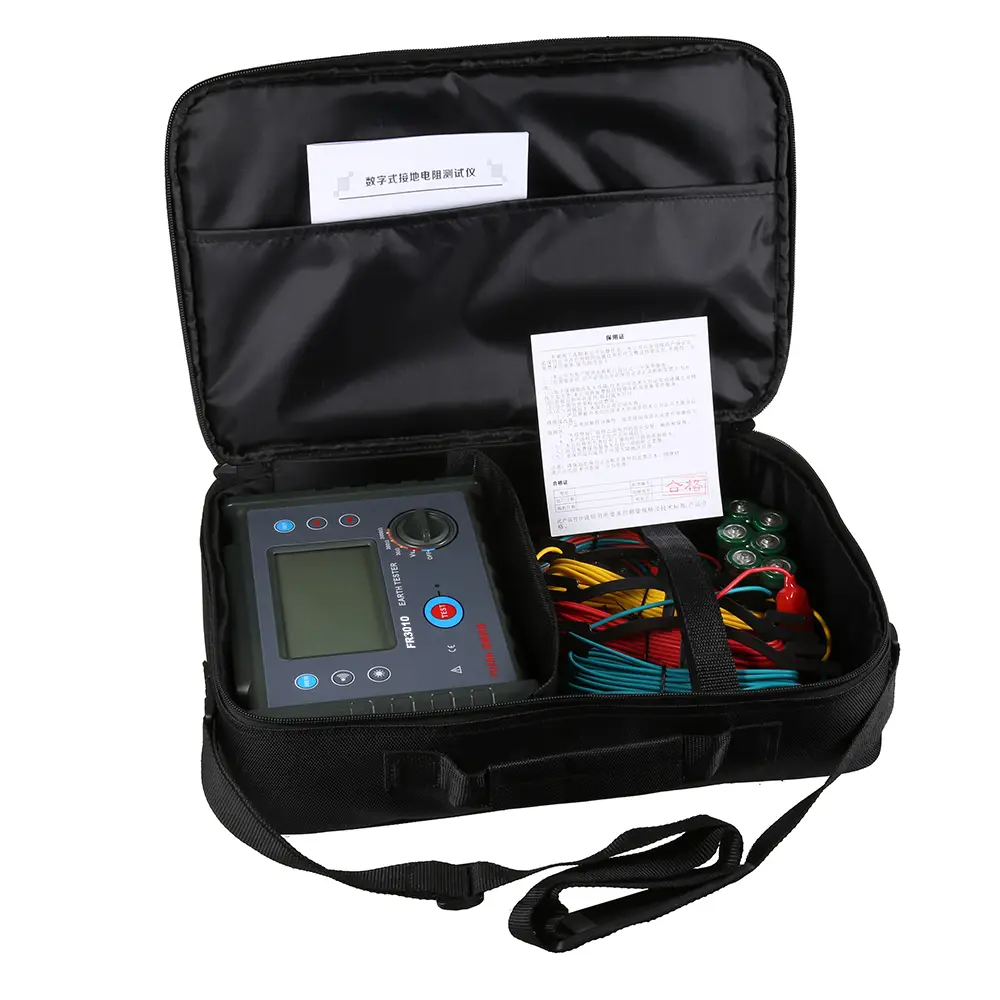

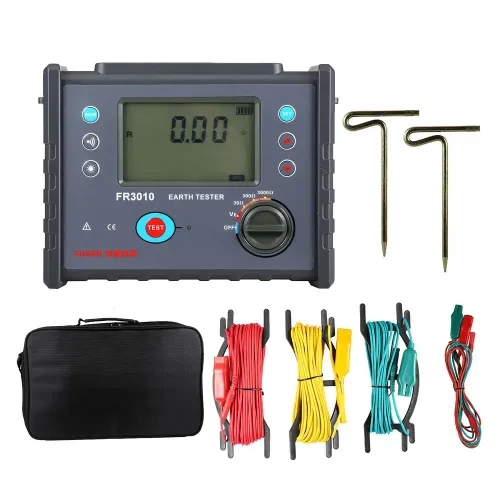

Standard accessories |
Testing wires, batteries, manual, pouch, earthing rod, simple testing wires |
|
Features |
|
|
Model |
FR3010 |
|
Data hold |
√ |
|
Data store |
500 groups |
|
LCD size |
108mm×56mm |
|
Display |
LCD with backlight, 4 digits |
|
Measurement method |
3-pole / 2-pole |
|
Indicators |
LED flashes, LCD count down display |
|
Measuring time |
Over 5000 times |
|
Overflow indication |
“OL” |
|
Sampling time |
Voltage to ground: 2 times/second; Ground resistance: 5 seconds/time |
|
Alarm function |
√ |
|
Battery indication |
√ |
|
Insulation Resistance |
>10MΩ |
|
Withstanding Voltage |
AC 3700V/rms |
|
Storage condition |
-20℃～60℃; below 70%rh |
|
Working condition |
-10℃～40℃; below 80%rh |
