Specifications |
||||
|
Model |
6234P |
6235P |
6236P |
|
|
Type |
Laser Type |
Contact Type |
Laser + Contact Type |
|
|
Range |
Laser |
2.5~99999RPM |
--- |
2.5~99999RPM |
|
Surface Speed |
--- |
1.0~1999.9m/min |
1.0~1999.9m/min |
|
|
Contact |
--- |
1.0~19999RPM |
1.0~19999RPM |
|
|
Resolution |
RPM |
0.1RPM |
0.1RPM |
0.1RPM |
|
Surface Speed |
--- |
0.01m/min |
0.01m/min |
|
|
Accuracy |
±0.05%+1 |
±0.05%+1 |
±0.05%+1 |
|
|
Sampling time |
>60rpm/s |
>60rpm/s |
>60rpm/s |
|
|
Time base |
4MHz quartz crystal |
4MHz quartz crystal |
4MHz quartz crystal |
|
|
Measure distance |
50mm-20mm |
--- |
50mm-20mm |
|
|
Features |
|||
|
Model |
6234P | 6235P | 6236P |
|
LCD display |
5 digits, 47x30mm |
5 digits, 47x30mm |
5 digits, 47x30mm |
|
Backlight |
√ |
√ |
√ |
|
Low battery indication |
√ |
√ |
√ |
|
Data store |
√ |
√ |
√ |
|
Auto range |
√ |
√ |
√ |
|
Auto power off |
√ |
√ |
√ |
|
Max./Min./ Last value |
√ |
√ |
√ |
|
General Information |
|||
|
Model |
6234P |
6235P |
6236P |
|
Power supply |
9V 6F22 battery |
||
|
Product size |
150×65×30mm |
||
|
Product weight |
100g |
115g |
130g |
|

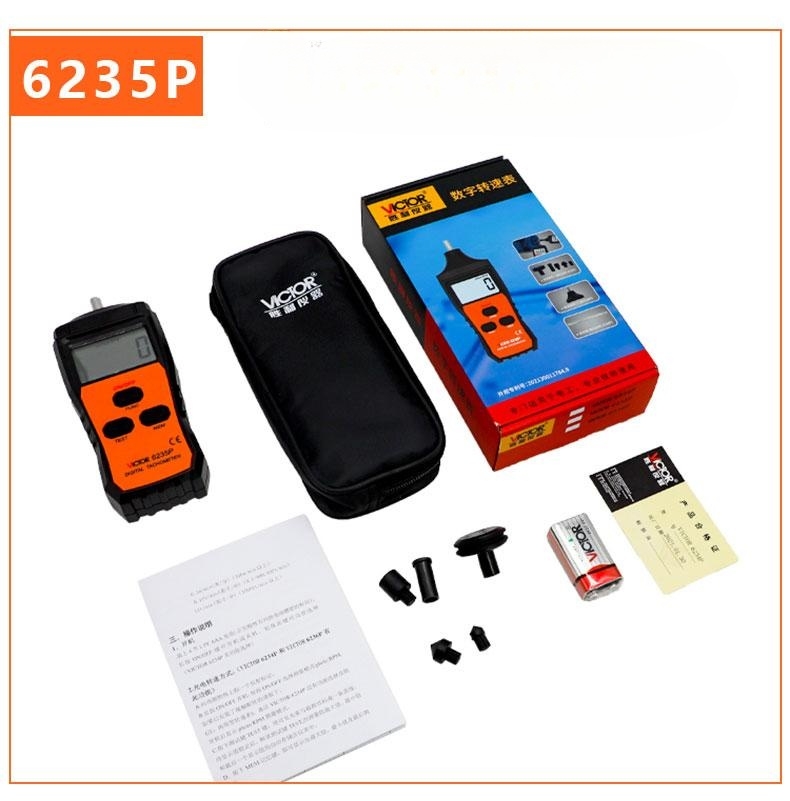

Standard accessories |
Manual, batteries, reflective tape |
Manual, batteries, contact wheel touch tips |
Manual, batteries reflective tape, contact wheel touch tips |
