Main Features
1. Multifunction:The multimeter can measure AC/DC voltage,AC/DCcurrent,resistance,capacitance,diode,continuity and temperature.
2. Portable design:There is a back bracket and hanging hole for supporting multimeter,convenient to operate.
3. Wide range of applications:It's a perfect tool for the laboratory,factory and home.
4. Clear to read:With large LCD backlight display and data hold function,convenient to read data.
5. More advantages:Low battery indication,true RMS,auto power off,over range indication and overload protection.
Description:
1. This 89A/ 89B is a handheld digital multimeter(мултиметр),high precision and portability,a perfect tool for the laboratory,factory and home.
2. It can measure AC/DC voltage,AC/DC current,resistance,capacitance,diode,continuity and temperature.
3. Moreover,more advantages such as backlight,data hold,low battery indication,true RMS,auto power off,over range indication and overload protection.
|
Specifications |
||||
| Model | Range |
89A |
89B |
|
|
DCV |
200mV/2V/20V/200V/1000V |
±(0.5%+3) |
±(0.5%+3) |
|
|
ACV |
2V/20V/200V/750V |
±(0.8%+5) |
±(0.8%+5) |
|
|
DCA |
2mA/20mA/200mA/20A |
±(1.2%+8) |
--- |
|
|
20mA/200mA/20A |
--- |
±(1.2%+8) |
||
|
ACA |
20mA/200mA/20A |
±(1.5%+15) |
±(1.5%+15) |
|
|
OHM |
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ |
±(0.8%+3) |
±(0.8%+3) |
|
|
CAP |
20nF/200nF/2uF/20uF/200uF/2000uF |
±(3.5%+20) |
±(3.5%+20) |
|
|
Temperature |
-20℃~1000℃/0 ℉~1832℉ |
--- |
±(1.0%+5) |
|
|
Features |
|||
|
Model |
89A |
89B |
|
|
Diode and continuity Test |
√ |
√ |
|
|
Data hold |
√ |
√ |
|
|
Auto power off |
√ |
√ |
|
|
LCD with backlight |
√ |
√ |
|
|
Temperature test |
--- |
√ |
|
|
Low battery indication |
√ |
√ |
|
|
True RMS |
√ |
√ |
|
|
Max reading |
1999 |
1999 |
|
|
Sampling rate |
3 times/s |
3 times/s |
|
|
Operation way |
Manual |
Manual |
|
|
General Information |
||
|
Model |
89A |
89B |
|
Power supply |
6F22,9V |
|
|
Product color |
Black+ Orange |
|
|
Product weight |
320g |
|
|

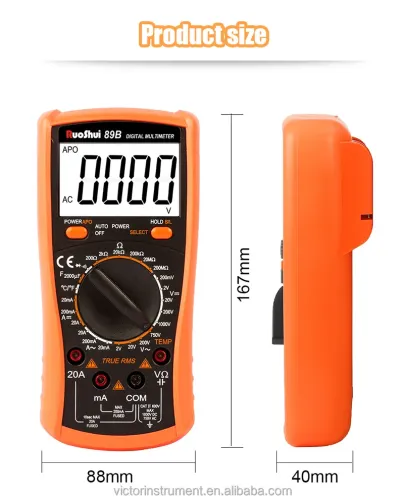

Product size |
190x88.5x27.5mm |
|
|
Standard accessories |
Manual, batteries, testing leads, temperature probe (only for 89B) |
|
