Specifications |
|||
|
Model |
Range |
8045-II |
|
|
DC V |
200mV/2V/20V/200V/1000V |
±（0.05%+3） |
|
|
AC V |
200mV/2V/20V/200V/1000V |
±（0.7%+30） |
|
|
DC A |
200uA/2mA/20mA/200mA/2A/20A |
±（0.35%+10） |
|
|
AC A |
20mA/200mA/2A/20A |
±（0.8%+80） |
|
|
Resistance |
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ |
±（0.5%+40） |
|
|
Frequency |
20Hz/200kHz/2MHz/20MHz |
±（0.1%+3） |
|
|
Capacitance |
20nF/200nF/2uF/20uF/200uF/2mF |
±（3.5%+20） |
|
|
Features |
|
|
Model |
8045-II |
|
Diode & continuity buzzer |
√ |
|
Triode test |
√ |
|
Max./Min. value |
√ |
|
Relative value measurement |
√ |
|
Backlight display |
√ |
|
AC+DC measurement |
√ |
|
Screen lock function |
√ |
|
AC frequency response |
3 times/s |
|
Sampling rate |
40~50kHz |
|
Operation way |
Manual range |
|
Max. Display |
19999 |
|
General Information |
|
|
Model |
8045-II |
|
Power supply |
AC 220V/110V 50Hz/60Hz |
|
Product color |
White |
|
Product weight |
260×220×82mm |
|
Product size |
1Kg |
|

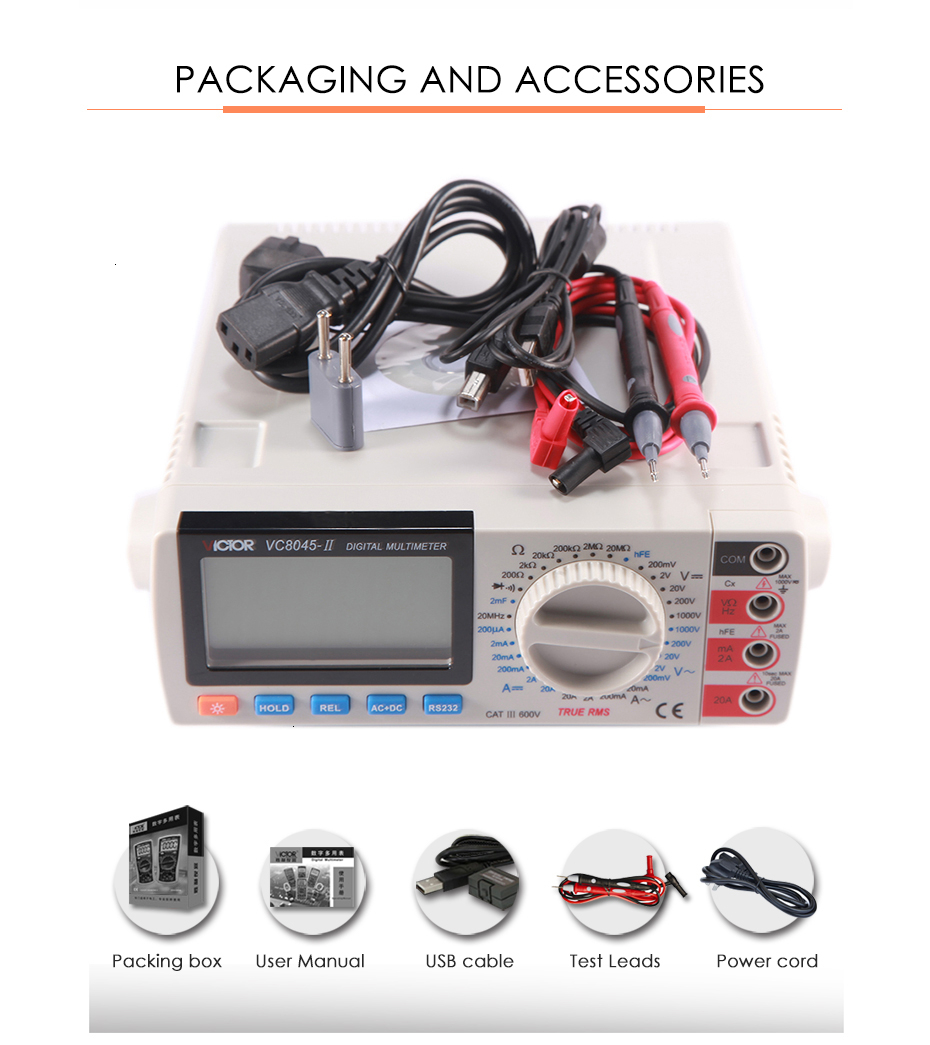

Standard accessories |
Manual, test lead, power cable, adapter |
