Description

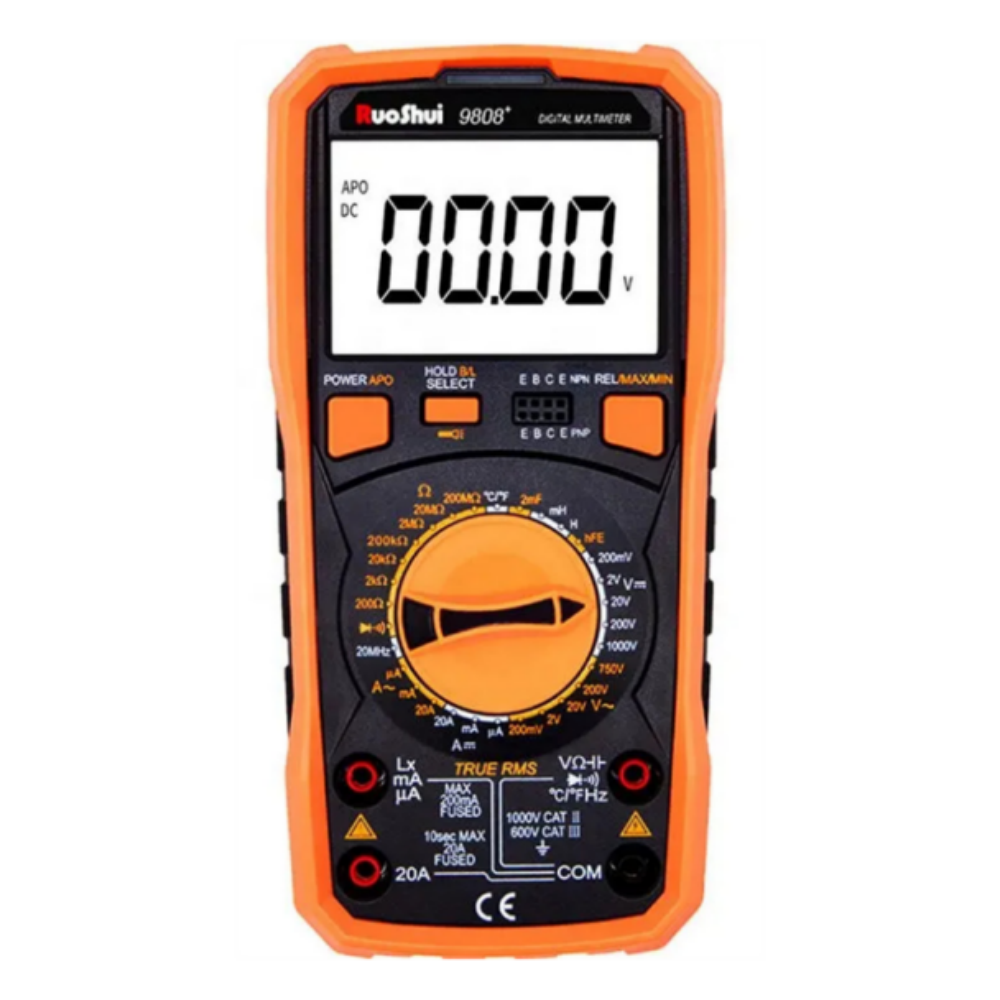

The 4 1/2 digit instrument is a stable and good performance digital multimeter driven by battery. It uses the LCD with 42mm-high LCD to make the reading clear, about 15 seconds delay backlight and load protection function to make the operation more convenient. The instrument has the function of measuring DCV, DCA, AC true RMS measurement, resistance, capacitance, conductance, triode, diode/continuity automatic identification function. The instrument takes dual-integral A/D converter as key point, AC true RMS measurement, it is an excellent tool.
This series meter meets the standard of IEC61010 (the safety standards request issued by IEC or equal GB4793.1 standards).
This series meter meets the standard of IEC61010 (the safety standards request issued by IEC or equal GB4793.1 standards).
Please read below notes carefully before operation.
3-1．Input of limit values beyond range is prohibited.
3-2．The voltagewhich isless than 36V is a safety voltage. When measuring voltage higher than DC 36V, AC 25V, check the connection and insulation of test leads to avoid electric shock.
3-3．Be sure to keep the test leads off the testing point when converting function and range.
3-4．Select correct function and range to avoid fault operation.
3-5.When the battery is not installed and the back cover is not tightened,please do not use this table for testing;
3-6.When you measuring resistance, capacitor, diode,continuity test, do not input voltagesignal;
3-7.Before replacing the battery or fuse, remove the testleadsfrom the test point and turn off the power switch;
3-8.Complywith local and national safety regulations, wear personal protectiveequipment (approved rubber gloves, masks and flame retardant clothing, etc.), to prevent electric shock and arc injury caused by exposure of dangerouselectricconductor.
3-9.Make measurements using only the correct measurement standard class (CAT), voltage and current rated probe, test conductor and adapter.
3-1．Input of limit values beyond range is prohibited.
3-2．The voltagewhich isless than 36V is a safety voltage. When measuring voltage higher than DC 36V, AC 25V, check the connection and insulation of test leads to avoid electric shock.
3-3．Be sure to keep the test leads off the testing point when converting function and range.
3-4．Select correct function and range to avoid fault operation.
3-5.When the battery is not installed and the back cover is not tightened,please do not use this table for testing;
3-6.When you measuring resistance, capacitor, diode,continuity test, do not input voltagesignal;
3-7.Before replacing the battery or fuse, remove the testleadsfrom the test point and turn off the power switch;
3-8.Complywith local and national safety regulations, wear personal protectiveequipment (approved rubber gloves, masks and flame retardant clothing, etc.), to prevent electric shock and arc injury caused by exposure of dangerouselectricconductor.
3-9.Make measurements using only the correct measurement standard class (CAT), voltage and current rated probe, test conductor and adapter.
Specifications
|
Specifications
|
|||||||||
|
Model
|
Range
|
9801A+
|
9804A+
|
9806+
|
9807A+
|
9808+
|
980+
|
||
|
DC V
|
200mV/2V/20V/200V/1000V
|
±(0.5%+3)
|
±(0.5%+3)
|
±(0.05%+5)
|
±(0.1%+5)
|
±(0.5%+3)
|
±(0.05%+5)
|
||
|
AC V
|
2V/20V/200V/1000V
|
±(0.8%+5)
|
±(0.8%+5)
|
--- | --- | --- | --- | ||
|
200mV/2V/20V/200V/750V
|
--- | --- |
±(0.8%+25)
|
±(0.8%+2)
|
±(0.8%+5)
|
±(0.8%+25)
|
|||
|
DC A
|
200uA/2mA/20mA/200mA/2A/20A
|
±(1.2%+8)
|
--- | --- | --- | --- | --- | ||
|
200uA/2mA/20mA/200mA/20A
|
--- |
±(1.2%+8)
|
--- | --- |
±(1.2%+8)
|
--- | |||
|
200uA/2000uA/20mA/200mA/20A
|
--- | --- |
±(0.5%+4)
|
±(0.5%+4) | --- | --- | |||
|
200uA/2000uA/20mA/200mA/2A/20A
|
--- | --- | --- | --- | --- |
±(0.5%+4)
|
|||
|
AC A
|
200mA/2A/20A
|
±(1.5%+15)
|
--- | --- | --- | --- | --- | ||
|
200mA/20A
|
--- |
±(1.5%+15)
|
--- | --- | --- |
±(1.5%+15)
|
|||
|
20mA/200mA/20A
|
--- | --- |
±(1.5%+15)
|
±(1.5%+15)
|
--- | --- | |||
|
200uA/2mA/20mA/200mA/20A
|
--- | --- | --- |
±(1.5%+15)
|
--- | ||||
|
Resistance
|
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ
|
± (0.8%+3)
|
± (0.8%+3)
|
± (0.4%+5)
|
± (0.4%+5)
|
± (0.8%+3) |
± (0.4%+5)
|
||
|
Capacitance
|
6nF/60nF/600nF/6uF/60uF/600uF/6mF/20mF
|
±(3.5%+20)
|
±(3.5%+20)
|
--- | --- | --- | --- | ||
|
20nF/200nF/2uF/20uF/200uF/2mF
|
--- | --- |
±(4.0%+50)
|
±(4.0%+50)
|
±(3.5%+20)
|
±(4.0%+50)
|
|||
|
Frequency
|
10Hz/100Hz/1KHz/10KHz/100KHz/1MHz/20MHz
|
--- |
±(1.0%+10)
|
--- | --- |
±(1.0%+10)
|
--- | ||
|
200Hz/2KHz/20KHz/200KHz/2MHz
|
--- | --- |
±(0.1%+3)
|
±(0.1%+3)
|
--- |
±(0.1%+3)
|
|||
|
Temperature
|
(-20～1000)°C/(-4~1832) ℉
|
--- |
±(1.0%+5)
|
--- | --- |
±(1.0%+5)
|
--- | ||
|
Inductance
|
2mH/20mH/200mH/2H/20H
|
--- | --- | --- | --- |
±(2.5%+30)
|
--- | ||
|
Conductivity
|
0.1-100ns
|
--- | --- |
±(1.0%+30)
|
±(1.0%+30)
|
--- | --- | ||
|
Features
|
|||||||
|
Model
|
9801A+ | 9804A+ | 9806+ | 9807A+ | 9808+ | 980+ | |
|
Diode/ Continuity buzzer
|
√
|
√
|
√
|
√
|
√
|
√
|
|
|
Transistor test
|
√
|
√
|
√
|
√
|
√
|
√
|
|
|
Live wire test
|
√
|
√ | --- | --- | --- | --- | |
|
Low battery indication
|
√
|
√
|
√
|
√
|
√
|
√
|
|
|
True RMS
|
√
|
√ |
√
|
√ |
√
|
√
|
|
|
Data hold
|
√
|
√ |
√
|
√
|
√
|
√
|
|
|
Auto power off
|
√
|
√ |
√
|
√
|
√
|
√
|
|
|
Backlight display
|
√
|
√ |
√
|
√
|
√
|
√
|
|
|
Max./Min. value
|
--- | --- | --- | --- |
√
|
--- | |
|
Square wave output
|
--- | --- | --- | --- | --- |
√
|
|
|
Er electrode measurement
|
--- | --- |
√
|
√
|
--- | --- | |
|

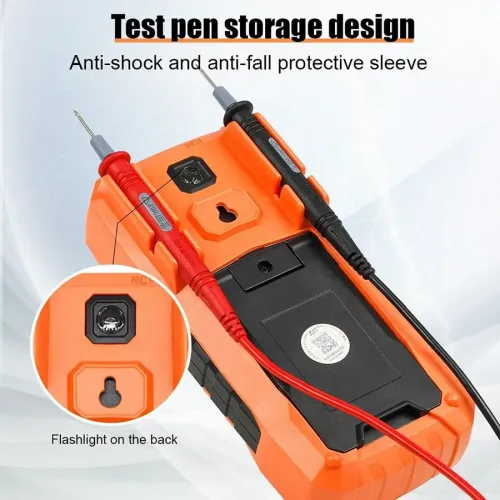

Flashlight light
|
√
|
√
|
√
|
√
|
√
|
√
|
|
|
NCV
|
√
|
√
|
--- | --- | --- | --- | |
|
Relative value measurement
|
√
|
√
|
--- | --- |
√
|
--- | |
|
Input impedance
|
10MΩ
|
10MΩ
|
10MΩ
|
10MΩ
|
10MΩ
|
10MΩ
|
|
|
Sampling rate
|
3 times/s
|
3 times/s
|
3 times/s
|
3 times/s
|
3 times/s
|
3 times/s
|
|
|
AC Frequency response
|
(40~1k)Hz
|
(40~1k)Hz
|
(40~1k)Hz
|
(40~1k)Hz
|
(40~1k)Hz
|
(40~1k)Hz
|
|
|
Operation way
|
Manual range
|
Manual range
|
Manual range
|
Manual range
|
Manual range
|
Manual range
|
|
|
Max. display
|
1999
|
1999
|
19999
|
19999 |
1999
|
19999
|
|
|
LCD Size
|
70*50mm
|
70*50mm
|
70*50mm
|
70*50mm
|
70*50mm
|
70*50mm
|
|
| General Information | |||||||
| Model | 9801A+ | 9804A+ | 9806+ | 9807A+ | 9808+ | 980+ | |
| Power supply |
1.5V, AAA*2 | ||||||
|
Product color
|
Black+ orange |
||||||
| Product weight |
395g |
||||||
| Product size |
186×92×52 mm |
||||||
| Standard accessories |
Test leads, batteries, manual, temperature probe (for 9804A+,9808+) |
||||||
