- The design conforms to the following safety requirements:DL/T 845.1 General specifications for measuring resistance equipment Part 1: electronic insulation resistance meters.JJG 1005 Verification Regulation of Electronic Insulation Resistance Meters.

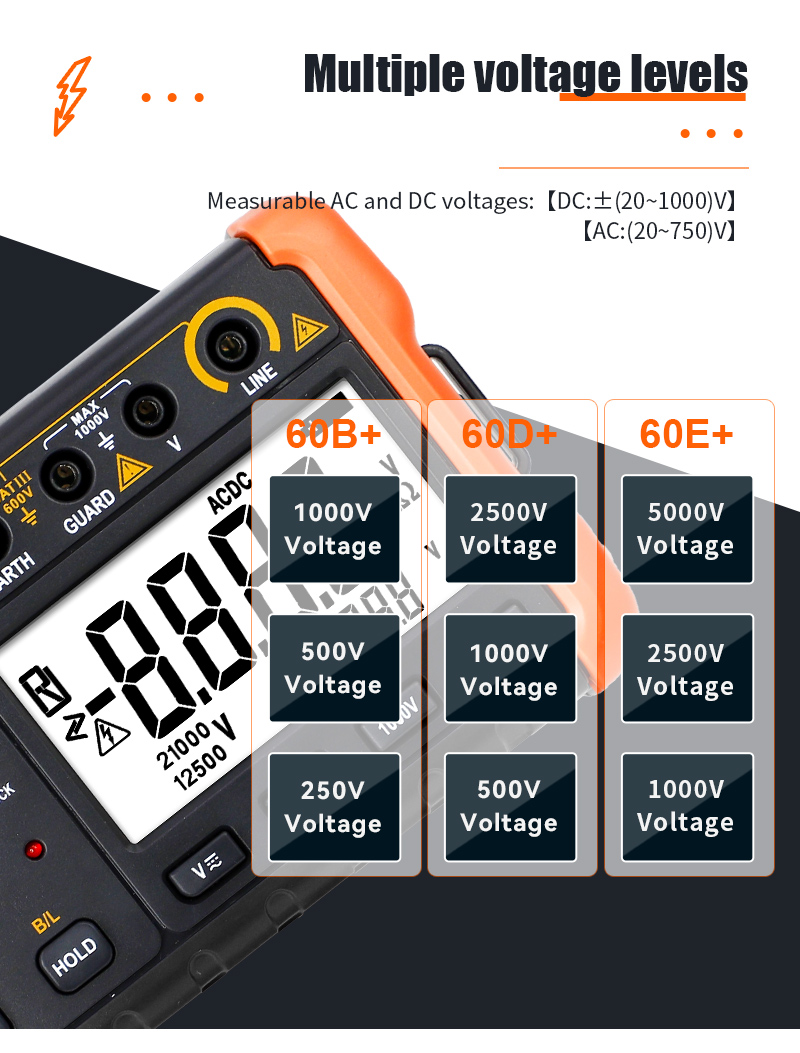

- Insulation measurement voltage in large ranges: 250V, 500V, 1000V.

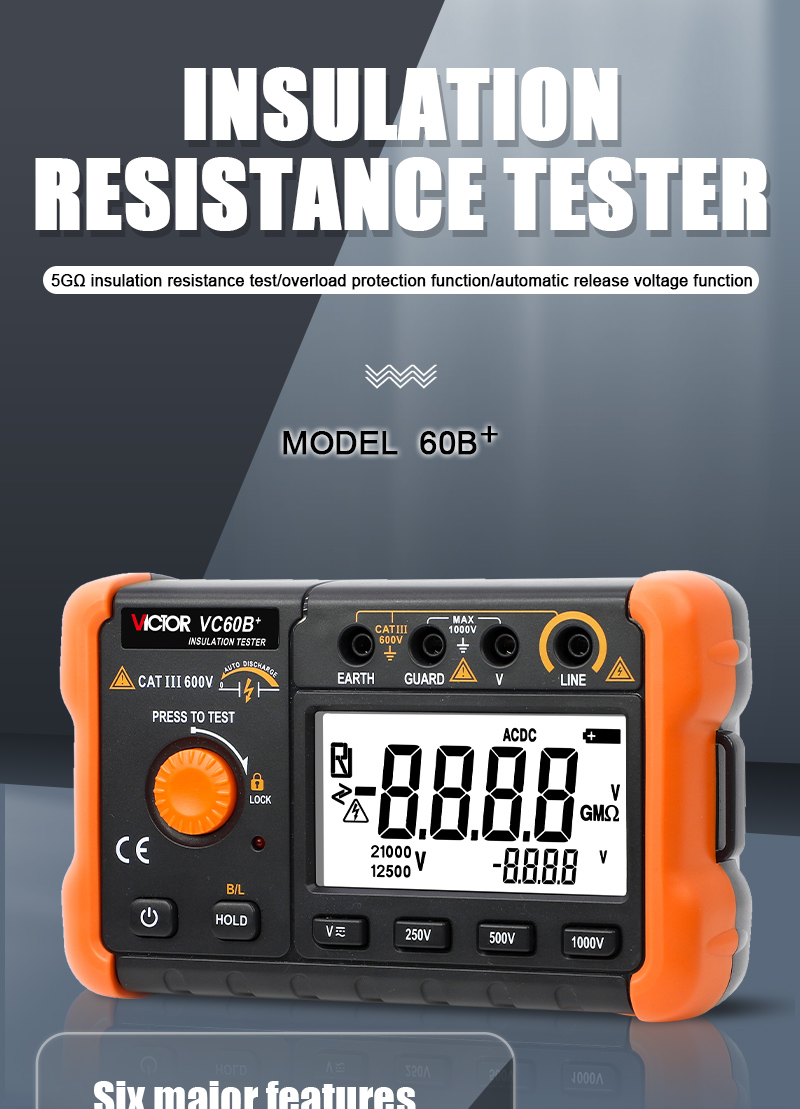

- Insulation resistance measurement as high as 5GΩ.

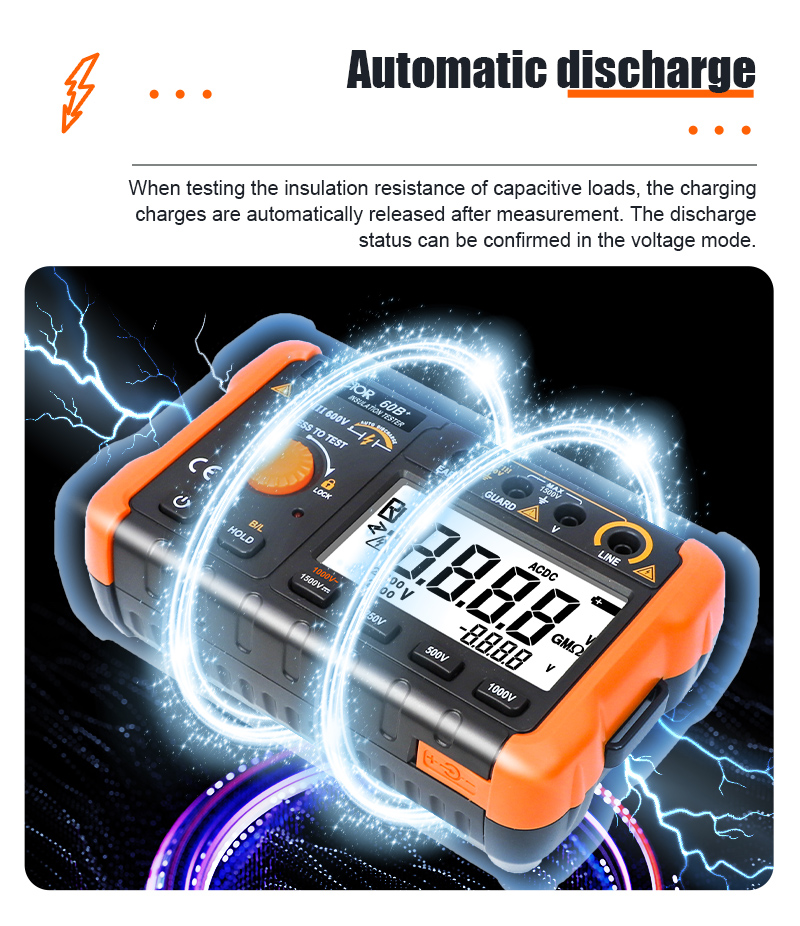

- Automatic voltage release function.

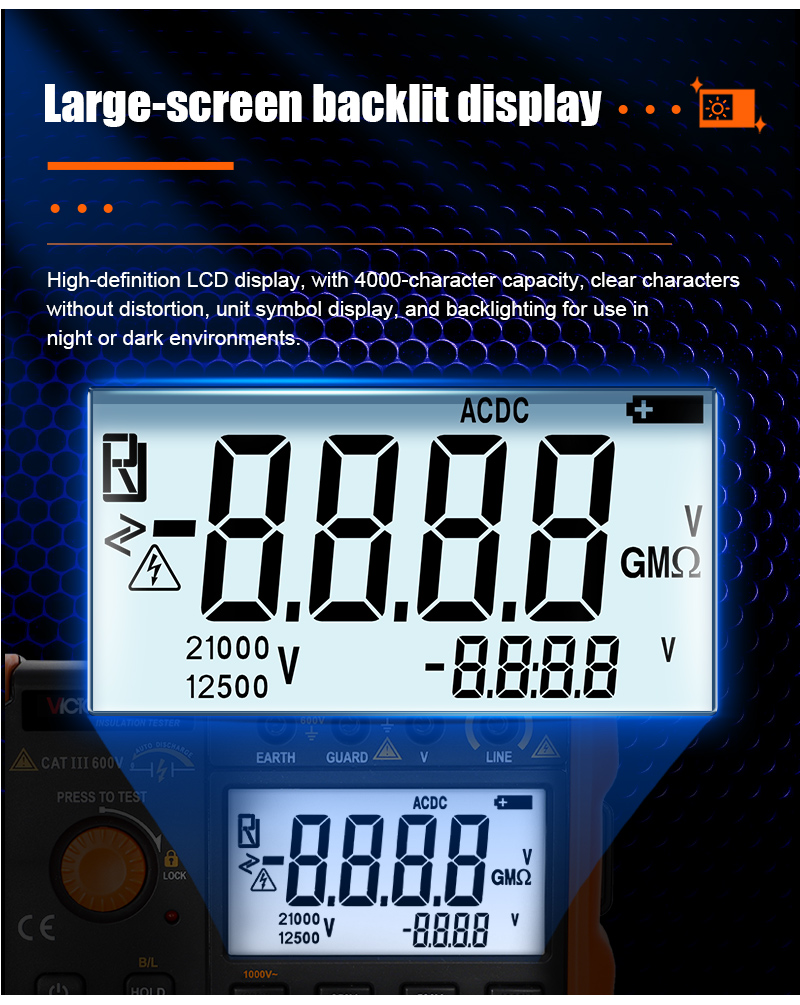

- White backlight function to view the test results in dimly areas.
- The actual output voltage value and the measured insulation resistance value are displayed at the same time.
- The test switch has a locking function.
- Voltage test and alarm function of the tested object.
- The instrument employs panel calibration technology, by which the instrument connects to standard device, undertakes the panel calibration in accordance with the procedure, stores the relevant calibrated data and finish stipulated periodical calibration to ensure the instrument reaching its accuracy and features.
- It is suitable for on-site use with a hand rope for and easy man-machine operation.

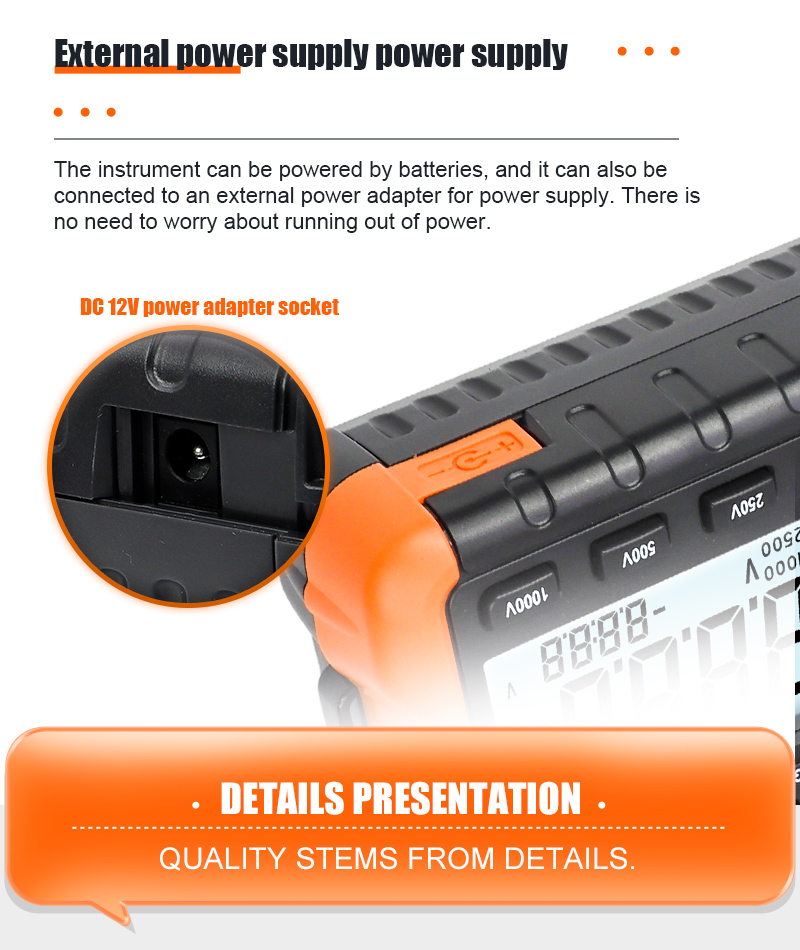

- It can be powered by AC power adapter without taking out the battery.
|

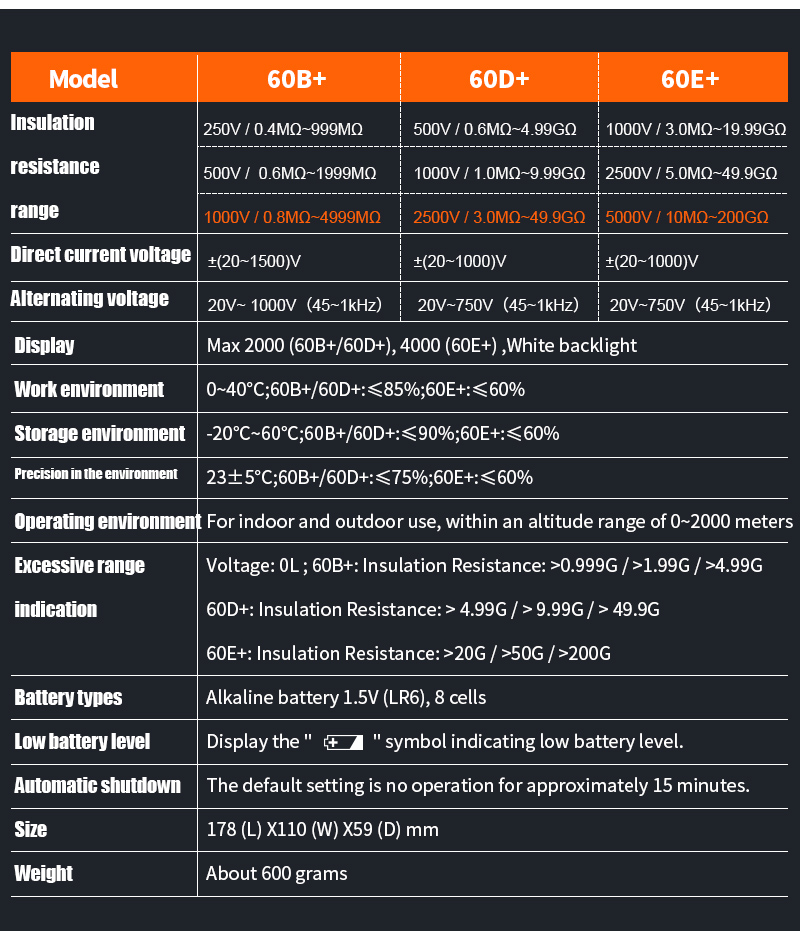

Specifications |
||
|
Rated voltage |
60B+ |
60D+ |
|
250V |
0.400MΩ—1.999MΩ |
--- |
|
2.00MΩ—19.99MΩ |
||
|
20.0MΩ—199.9MΩ |
||
|
0.200GΩ—0.999GΩ |
||
|
500V |
0.600MΩ—1.999MΩ |
0.600MΩ—1.999MΩ |
|
2.00MΩ—19.99MΩ |
2.00MΩ—19.99MΩ |
|
|
20.0MΩ—199.9MΩ |
20.0MΩ—199.9MΩ |
|
|
0.200GΩ—1.99GΩ |
0.200GΩ—1.99GΩ |
|
| --- |
2.00GΩ～4.99GΩ |
|
|
1000V |
0.800MΩ—1.999MΩ |
1.000MΩ—1.999MΩ |
|
2.00MΩ—19.99MΩ |
2.00MΩ—19.99MΩ |
|
|
20.0MΩ—199.9MΩ |
20.0MΩ—199.9MΩ |
|
|
0.200GΩ—4.99GΩ |
0.200GΩ—1.999GΩ |
|
| --- |
2.00GΩ—9.99GΩ |
|
|
2500V |
--- |
3.00MΩ-19.99MΩ |
|
20.0MΩ-199.9MΩ |
||
|
0.200GΩ-1.999GΩ |
||
|
2.00GΩ-19.90GΩ |
||
|
20.0GΩ-49.9GΩ |
||
|
Resistance accuracy |
5％+5 |
5％+5 |
|
ACV：20-1000V |
± (2%+3) |
± (2%+3) |
|
DCV:±(20～1500)V |
± (2%+3) |
± (2%+3) |
|
Features |
||
|
Model |
60B+ |
60D+ |
|
Low Battery Indication |
√ |
√ |
|
Backlight display |
√ |
√ |
|
Alarm function |
√ |
√ |
|
Over load indication |
√ |
√ |
|
Unit symbol display |
√ |
√ |
|
Auto power off |
√ |
√ |
|
Max. display |
5000 |
2000 |
|
LCD size |
85x60mm |
|
|
Operation condition |
(0~40)℃, 30%RH~85%RH |
|
|
Input Impedance |
1MΩ |
|
|
Frequency Response |
(50-200) Hz |
|
|
General Information |
||
|
Model |
60B+ |
60D+ |
|
Power Supply |
8x1.5V AA batteries |
|
|
Product color |
Black + orange |
|
|
Product weight |
178×110×59mm |
|
|
Product size |
600g |
|
|
Standard accessories |
Test leads / batteries / manual/ shoulder strap/ alligator clips |
|
60B+ User's Manual(2022 version)
