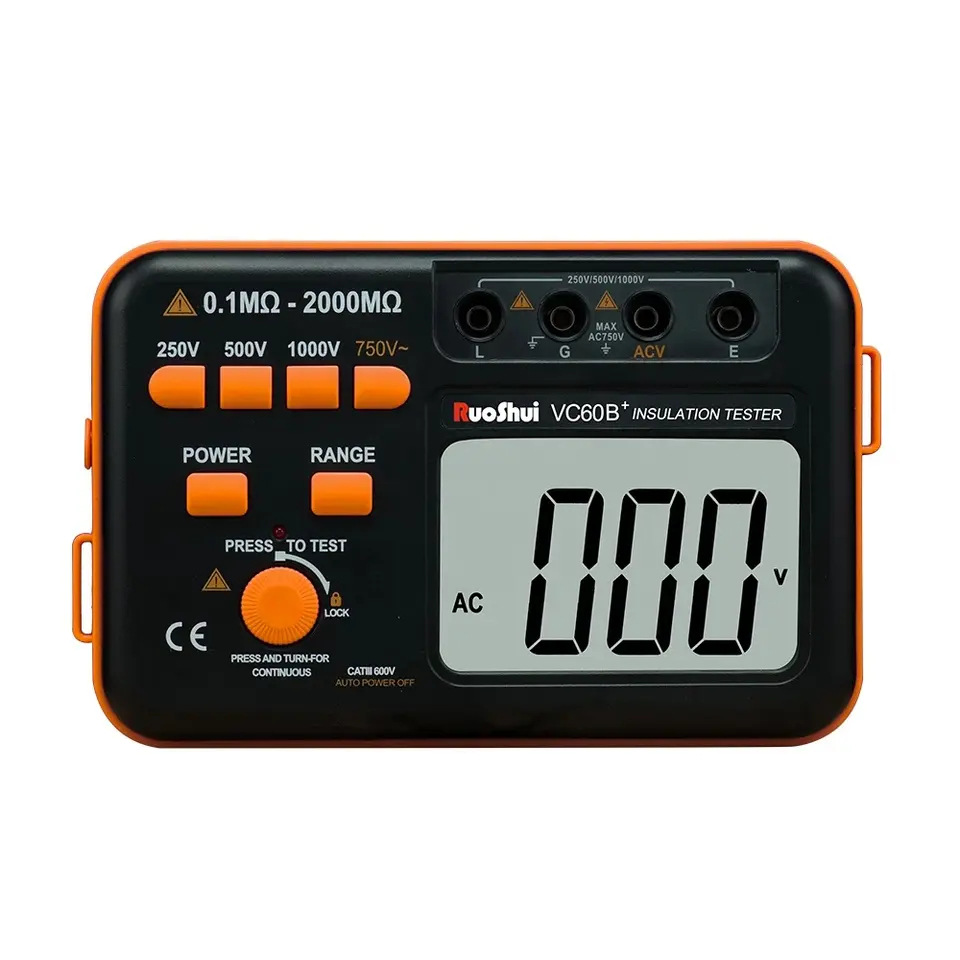

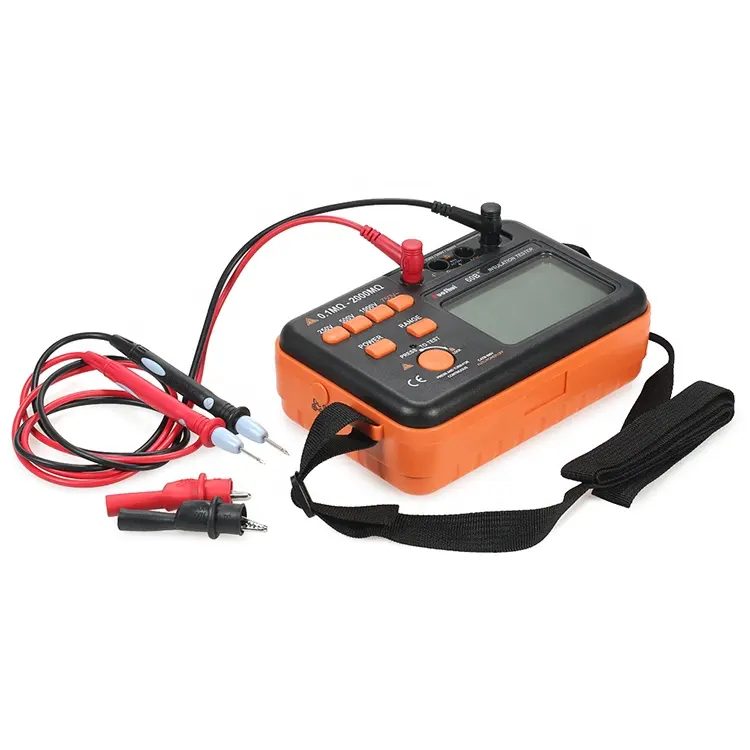

This instrument adopts the DC Voltage convertor of low consumption and high converter ratio inductance energy storage, to change the 9V Voltage to 250V/500V/1000V DC Voltage. It uses digital bridge to make the insulation resistance measurement had the features of user-friendly, high extent range, backlight display, data hold and auto power off. The whole instrument is stylish and superior grade in appearance and high stable in performance, it can be operated by both hands through using a shoulder strap. It is most suitable for the needs of insulation resistance check, such as electric, cable, electrical and mechanical equipment, telecommunication equipment and electrical facilities.
|
Specifications |
||||
|
Function |
Range |
60B+ |
60D+ |
|
|
Measuring voltage |
250V/500V/1000V |
±10% |
--- |
|
|
1000V/2500V |
--- |
±20% |
||
|
Resistance |
250V |
0.1MΩ—20MΩ |
± (4%+2) |
--- |
|
20MΩ—500MΩ |
||||
|
500V |
0.1MΩ—50MΩ |
|||
|
50MΩ—1000MΩ |
||||
|
1000V |
0.1MΩ—100MΩ |
|||
|
100MΩ—2000MΩ |
||||
|
Resistance |
1000V |
6.0MΩ-199.9MΩ |
--- |
± (5%+5) |
|
0.06GΩ-1.999GΩ |
||||
|
0.6GΩ-19.99GΩ |
||||
|
2500V |
5MΩ-199.9MΩ |
|||
|
0.05GΩ-1.999GΩ |
||||
|
Current of short circuit |
--- |
1.8mA |
<4mA |
|
|
AC V |
750V |
± (1%+6) |
± (1%+6) |
|
|
Features |
||
|
Model |
60B+ |
60D+ |
|
Low Battery Indication |
√ |
√ |
|
Backlight display |
√ |
√ |
|
Alarm function |
√ |
√ |
|
Over load indication |
√ |
√ |
|
Unit symbol display |
√ |
√ |
|
Auto power off |
√ |
√ |
|
Max. display |
1999 |
|
|
LCD size |
85x60mm |
|
|
Operation condition |
(0~40)℃, 30%RH~85%RH |
|
|
Input Impedance |
1MΩ |
|
|
Frequency Response |
(50-200) Hz |
|
|
Over Range Display |
“1” |
|
|
General Informaton |
||
|
Model |
60B+ |
60D+ |
|
Power Supply |
6x1.5V AA batteries AC adapter (not included) |
8x1.5V AA Batteries AC adapter (not included) |
|
Product color |
Black + orange |
|
|
Product weight |
175×110×70mm |
|
|
Product size |
630g |
|
|

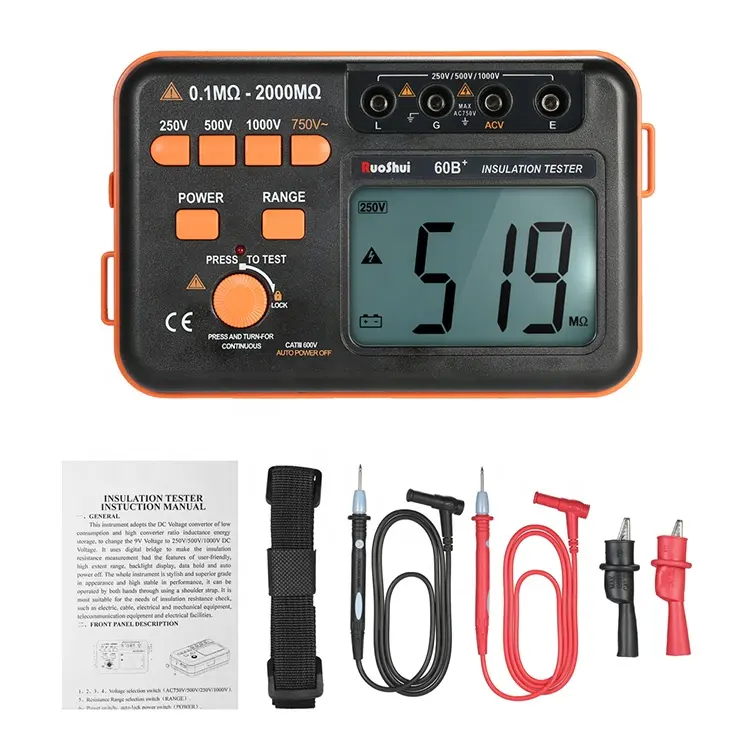

Standard accessories |
Test leads, batteries, manual, shoulder strap |
|
