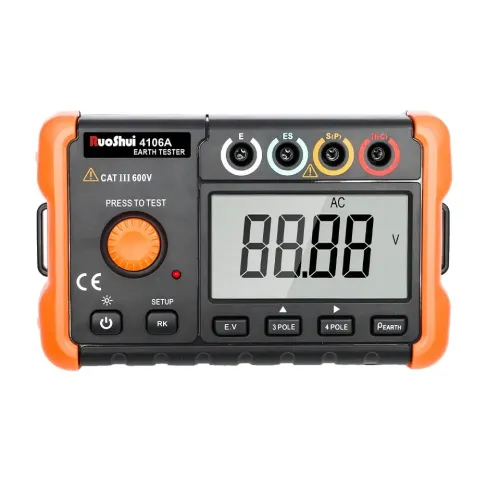

The instrument is a multifunctional earth resistance/earth resistivity tester equipped with a microcomputer.
The instrument employs digital signal settlement technology, which can draw earth measurement signals, possess features of high frequency, high accuracy and high resistance, and measure earth resistance/ earth resistivity accurately. The instrument can execute standard 3POLE and 4POLE earth resistance measurements and has 2POLE earth resistance measurement and earth resistivity calculation functions as well.
|
Specifications |
||||
|
Function |
Rang |
Resolution |
4106 |
4106A |
|
Ground Resistance (Re) |
20Ω |
0.01Ω |
± (2%+15) |
± (2%+3) |
|
200Ω |
0.1Ω |
± (2%+5) |
± (2%+3) |
|
|
2000Ω |
1Ω |
± (3%+5) |
± (2%+3) |
|
|
20kΩ |
0.01kΩ |
± (3%+5) |
--- | |
|
Ground voltage (E.V) |
0.00-50.00V |
0.01V |
--- |
± (2.0%+5) |
|
Series interference voltage (UST) |
0.0V～20.0V |
0.1V |
± (2.0%+5) |
--- |
|
Earth Resistivity (ρ) |
0Ω·m~2000KΩ·m |
0Ω·m~2000KΩ·m |
||
|
Short circuit current |
≤20mA |
≤3mA | ||
|
Features |
||
|
Model |
4106 |
4106A |
|
Release the residual resistance (Rk) on the test leads |
√ |
√ |
|
Comparison test |
√ |
√ |
|
Auxiliary earth resistance alarm |
√ |
√ |
|
Low battery indication |
√ |
√ |
|
Backlight display |
√ |
√ |
|
Unit symbol display |
√ |
√ |
|
Auto power off |
√ |
√ |
|
Testing method |
2-pole, 3-pole, 4-pole |
3-pole, 4-pole |
|
Data store |
100 group |
--- |
|
4 test frequency for Re |
94Hz、105Hz、111Hz、128Hz |
--- |
|
Max. display |
1999 |
|
|
Operation condition |
(0~40) ℃, 30%RH~85%RH |
|
|
Over Range Display |
“OL” |
|
|
General Information |
||
|
Model |
4106 |
4106A |
|
Power supply |
1.5V AA x 8 ，DC12V power adapter |
|
|
Product color |
Black + orange |
|
|
Product size |
175×110×70mm |
|
|
Product weight |
500g |
|
|

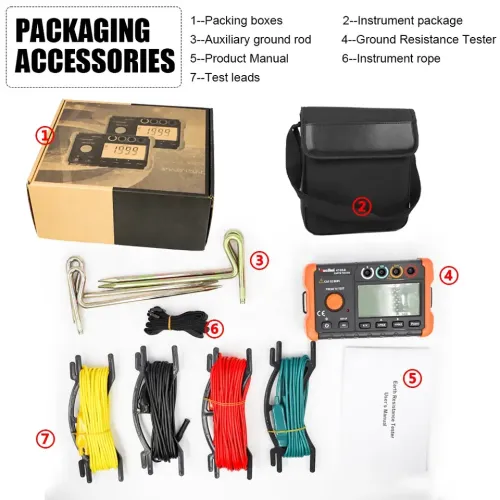

Standard accessories |
Pouch, earthing rod x4, auxiliary testing wire x1set (15M red wire/10M yellow wire/5M green wire/5M black), batteries, manual, shoulder strap |
|
