Specifications |
|||
Function |
Range |
6410+ |
6412A |
Resistance range |
0.010Ω~0.199Ω |
±1.0%+0.02 |
±1.0%+0.02 |
0.20Ω~1.99Ω |
±1.0%+0.05 |
±1.0%+0.05 |
|
2.0Ω~49.9Ω |
±1%+0.5 |
±1%+0.5 |
|
50.0Ω~99.5Ω |
±1.5%+1 |
±1.5%+1 |
|
100Ω~199Ω |
±2.0%+2 |
±2.0%+2 |
|
200Ω~395Ω |
±5.0%+5 |
±5.0%+5 |
|
400Ω~590Ω |
±10.0%+10 |
±10.0%+10 |
|
600Ω~880Ω |
±20.0%+20 |
±20.0%+20 |
|
900Ω~1200Ω |
±25.0%+30 |
±25.0%+30 |
|
AC current range |
1.00mA-9.99mA |
--- |
±2.5%+1 |
10.0mA-99.9mA |
±2.5%+5 |
||
100mA-999mA |
±2.5%+10 |
||
1.00A-9.99A |
±2.5%+0.2 |
||
10.0A-20.0A |
±2.5%+0.5 |
||
Single measurement time |
1s |
1s |
|
Current measure frequency |
--- |
50/60Hz Auto |
Features |
|||
Model |
6410+ |
6412A |
|
Alarm beeping |
√ |
√ |
|
Clock display |
√ |
√ |
|
Date hold |
√ |
√ |
|
Auto power off |
√ |
√ |
|
Double insulation |
√ |
√ |
|
Range |
Auto range |
Auto range |
|
Display resistance + current at the same time |
--- |
√ |
|
Bluetooth connect to APP, for remote control |
--- |
√ |
|
USB interface for data transfer |
--- |
√ |
|
Data storage |
500 groups |
||
Clamp size |
55mmx32mm |
||
Display |
4 digits VA screen ,46x36mm |
||
Working Condition |
‘(-10~40)℃; <80%Rh |
General Information |
||
Model |
6410+ |
6412A |
Power supply |
1.5V AA*4, or DC6 V adapter |
|
Product color |
Black + orange |
|
Product size |
293mm(L) X 90mm(W) X 66mm(H) |
|
Product weight |
1320g |
|

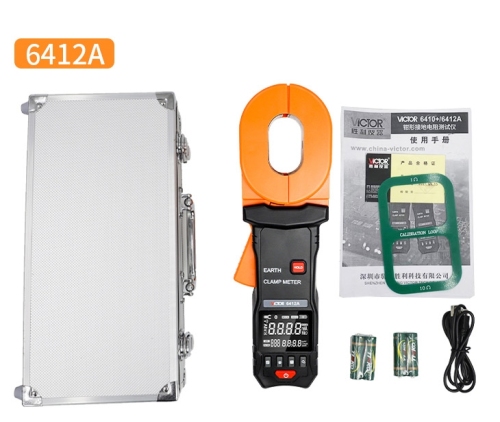

Standard accessories |
verification resistor, batteries, manual, tool case, USB cable (only for 6412A) |
