Description
This series digital clamp meter are portable digital clamp meter, can be used for measuring ACA, ACV, DCV, resistance, diode, continuity buzzer, etc. The meter is easy to use, and convenient to be taken, and is ideal for electricity measurement. It is especially suitable for the measurement of refrigerating equipment, electricity maintenance and large current application.
Specifications
| Specifications | |||||
| Function | Range | 6016B+ | 6056D |
3218+ |
|
| DC V |
200mV/2V/20V/200V/600V | ±（0.5%+4） | --- |
±（0.5%+7） |
|
| 6V/60V/600V/1000V | --- | ±（0.5%+4） | --- | ||
| AC V |
2V/20V/200V/600V | ±（0.8%+10） | --- |
±（0.8%+10） |
|
| 6V/60V/600V/750V | --- | ±（0.8%+10） | --- | ||
| AC A |
2A/20A/200A/600A | ±（3%+5） | --- | --- | |
| 400A/600A | --- | ±（3%+5） | --- | ||
|
200uA/2000uA/20mA/200mA/2A/20A/200A/600A |
--- |
±（2%+3） |
|||
| DC A |
400A/600A |
--- | ±（3%+5） | --- | |
|
200uA/2000uA/20mA/200mA |
--- |
±（1.5%+3） |
|||
| Resistance |
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±（0.8%+5） |
±（1.0%+5） |
||
| 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | --- | ±（0.8%+5） | --- | ||
| Capacitance |
600nF/6uF/60uF/600uF/6000uF | --- | ±（3%+5） | --- | |
| Frequency |
100Hz/1kHz/10kHz/100kHz/1MHz/10MHz/60MHz | --- | ±（0.5%+3） | --- | |
| Temperature |
-50°C~1000°C / -58°F~1832°F | --- | ±（1.0%+4） | --- | |
| Features | |||
| Model | 6016B+ | 6056D |
3218+ |
| Diode & continuity test | √ | √ | √ |
| True RMS | √ | √ | √ |
| Low battery indication | √ | √ | √ |
| Data Hold | √ | √ | √ |
|
Live wire detection |
--- |
--- |
√ |
|
Max./Min. value |
√ |
--- |
√ |
| Sampling Rate | 3 times/s | 3 times/s | 3 times/s |
| Operation Way | Manual range | Auto range | Auto range |
| Max. Display | 1999 | 5999 | 1999 |
| Clamp Size | 30mm | 30mm | 30mm |
| General Information | |||
| Model | 6016B+ | 6056D+ | 3218+ |
|
Power Supply |
AAA,1.5Vx2 | ||
|
Product color |
Black+ Orange |
||
|
Product weight |
140g |
||
|

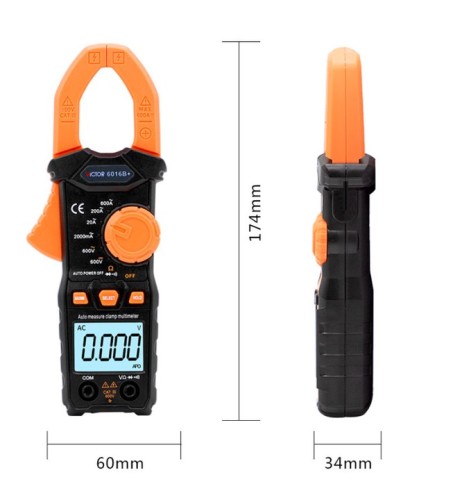

Product size |
174mmx60mmx34mm |
||
|
Standard accessories |
Test leads, batteries, manual, temperature probe (only for 6056D) | ||
