2. Before measurement, check that the function switch is at the proper position, check if the test probe touches the measured item reliably, if there is proper connection, good insulation etc, in order to avoid electric shock.
3. The clamp multimeter cannot conform to the requirements of the related safety standards until it is used together with the attached test probe. If the test probe cable is broken, it must be replaced with the cable of the same type or the same electric specifications.
4. Replace the battery with only the battery of the same type and the same voltage specification. Before replacing the test probe, keep it away from the measured point and make sure there are no signals on the input end.
5.During voltage measurements, never directly touch the ground or bare metal terminals, output ports, lead clamps, etc that may have ground potential.
6. Do NOT store or use the meter in high temperature environments, high humidity, high flammability, high explosion potential or strong magnetic field.
7. Measuring the voltage above the allowed limit voltage will damage the meter and endanger the operator. The allowed limit voltage is marked on the panel of the meter.
8. Do not attempt to calibrate or repair this meter. Calibration and repair must be conducted only by specially trained personnel or qualified professional technician.
9. During measurement, the function/range selection switch must be placed at the correct range function. When converting the function/range selection switch, be sure to disconnect the test probe cable from the tested item and make sure there are no signals input in the input end. Never convert the function/range selection switch during measurement!
10. When the LCD display shows “”, please replace the battery in order to ensure testing accuracy.
11. Do not change any circuit parts in the meter without permission from the manufacturer in order to prevent damage to this unit.

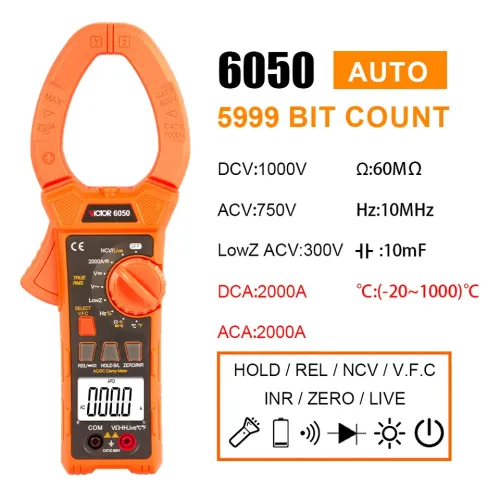

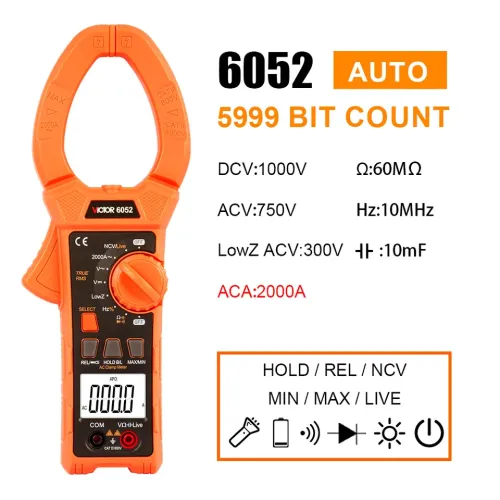

Specifications |
|||||
Function |
Range |
6050 |
6052 |
||
DC V |
600mV/6V/60V/600V/1000V |
±(0.5%+7) |
±(0.5%+7) |
||
AC V |
6V/60V/600V/750V |
±(1.0%+10) |
±(1.0%+10) |
||
Low-V |
6V/60/V/300V |
±(1.0%+10) |
±(1.0%+10) |
||
DC A |
600A/2000A |
±(4.0%+10) |
--- | ||
AC A |
600A/2000A |
±(4.0%+10) |
±(4.0%+10) |
||
Resistance |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/20MΩ/60MΩ |
±(1.0%+5) |
±(1.0%+5) |
||
Capacitance |
1nF/10nF/100nF/1μF/10μF/100μF/1mF/10mF |
±(5.0%+10) |
±(5.0%+10) |
||
Frequency |
10Hz-10MHz |
±(0.3%+3) |
±(0.3%+3) |
||
Duty cycle |
10.0%-90.0% |
0.1% |
0.1% |
||
Temperature |
-20°C~1000°C / -4°F~1832°F |
±(2.0%+5) |
--- |
Features |
|||
Model |
6050 |
6052 |
|
Diode & continuity Test |
√ |
√ |
|
Relative value measurement |
√ |
√ |
|
Low battery indication |
√ |
√ |
|
Data Hold |
√ |
√ |
|
NCV non-contact voltage detection |
√ |
√ |
|
Auto power off |
√ |
√ |
|
Live wire test |
√ |
√ |
|
Flash light |
√ |
√ |
|
Max./Min value |
--- |
√ |
|
Low-Z measurement |
√ |
√ |
|
V.F.C (low pass filter) |
√ |
--- |
|
Inrush current measurement |
√ |
--- |
|
DC current zeroing |
√ |
--- |
|
Operation way |
Auto range |
Auto range |
|
Max. Display |
5999 |
5999 |
|
Jaw Size |
58mm |
58mm |
General Information |
||
Model |
6050 |
6052 |
Power Supply |
AAA,1.5Vx2 |
|
Product color |
Black+ Orange |
|
Product weight |
420g |
|

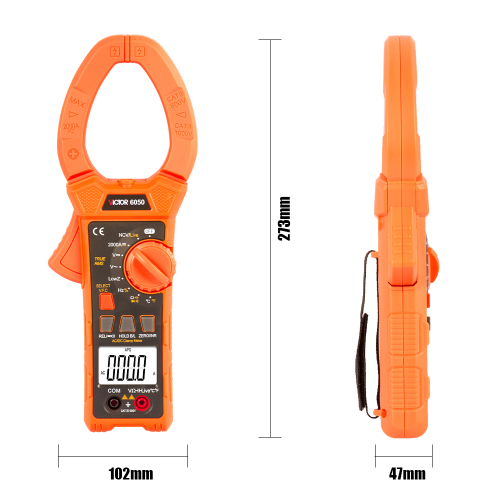

Product size |
273x102x47mm |
|

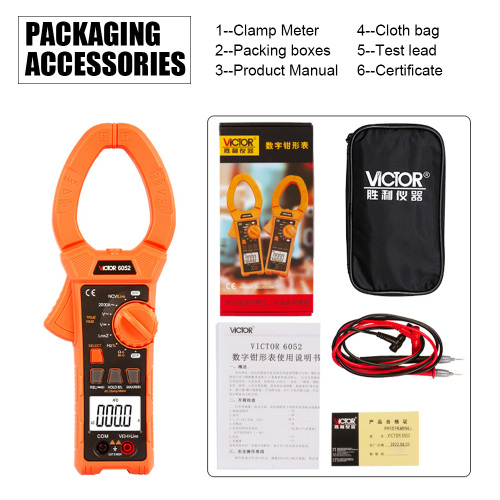

Standard accessories |
Test leads, batteries, manual, pouch, temperature probe (only for 6050) |
