lt can measure AC/DC voltage,AC/DC current, frequency,duty, resistance, capacitance, temperature, diode,NCV, VFD,inrush current, etc.
High Input lmpedance Voltage Measurement:
When measuring in a circuit, it has little effect on circuitperformance. This is the desired effect for most voltagemeasurement applications and is especially important forsensitive electronic or control circuits.
Low Input lmpedance Voltage Measurement( Lozv):

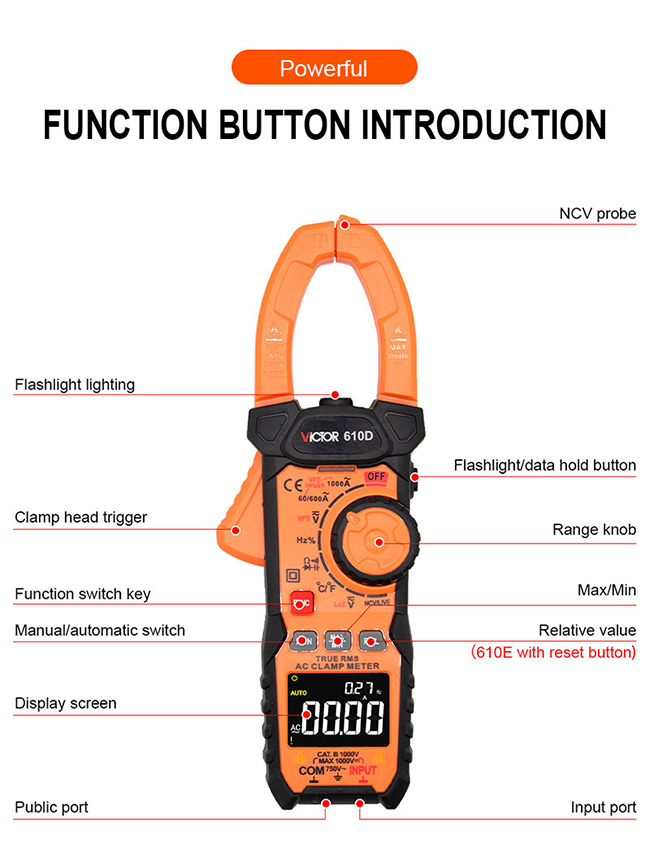

lt can safely troubleshoot sensitive electronic or controlcircuits and circuits that may contain false voltages, and canmore reliably determine whether there is a voltage on the circuit.Panel description
|
Specifications |
|||||
|
Function |
Range |
610D |

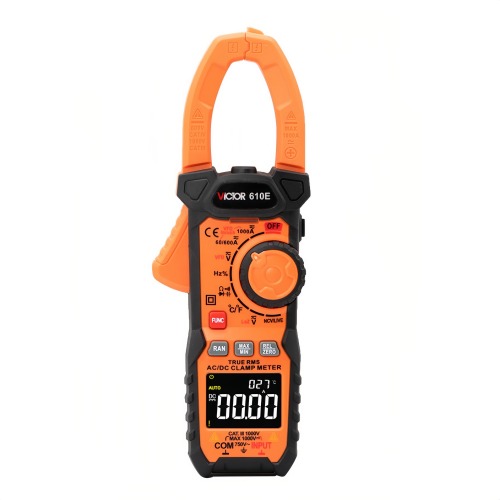

610E |
||
|
DC V |
600mV/6V/60V/600V/1000V |
± (0.5%+5) |
± (0.5%+5) |
||
|
AC V |
600mV/6V/60V/600V/750V |
± (0.8%+5) |
± (0.8%+5) |
||
|
(VFD)750V |
± (2.0%+5) |
± (2.0%+5) |
|||
|
AC A |
60A/600A/1000A |
± (2.5%+8) |
± (2.5%+8) |
||
|
DC A |
60A/600A/1000A |
--- |
± (2.5%+8) |
||
|
Resistance |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
± (1.0%+5) |
± (1.0%+5) |
||
|
Capacitance |
10nF/100nF/1000nF/10uF/100uF/1000uF/10mF/100mF |
± (4.0%+5) |
± (4.0%+5) |
||
|
Frequency |
10Hz/100Hz/1000Hz/10kHz/100kHz/1000kHz/10MHz |
± (1.0%+3) |
± (1.0%+3) |
||
|
Temperature |
(-20~1000) ℃ / (-4~1832) ℉ |
± (1.0%+3) |
± (1.0%+2) |
||
|
Duty cycle |
1% -990% |
± (3.0%+3) |
± (3.0%+3) |
||
|
Features |
|||
|
Models |
610D |
610E |
|
|
Diode &Continuity Test |
√ |
√ |
|
|
Data hold |
√ |
√ |
|
|
NCV Measurement |
√ |
√ |
|
|
True RMS |
√ |
√ |
|
|
Relative value measurement |
√ |
√ |
|
|
Inrush current measurement |
√ |
√ |
|
|
VFD current & voltage measurement |
√ |
√ |
|
|
Loz |
√ |
√ |
|
|
Auto power off |
√ |
√ |
|
|
Max./Min. value display |
√ |
√ |
|
|
Backlight |
√ |
√ |
|
|
Flash light |
√ |
√ |
|
|
DCA zeroing |
--- |
√ |
|
|
Live wire test |
√ |
√ |
|
|
Jaw Size |
40mm | 40mm | |
|
Max Display |
5999 | 5999 | |
|
General Informatio |
||
|
Model |
610D |
610E |
|
Power Supply |
AAA,1.5Vx2 |
|
|
Product color |
Black+ Orange |
|
|
Product weight |
300g |
|
|
Product size |
175x66x30mm |
|
|
Standard accessories |
Test leads, battery, manual, pouch, temperature probe |
|
