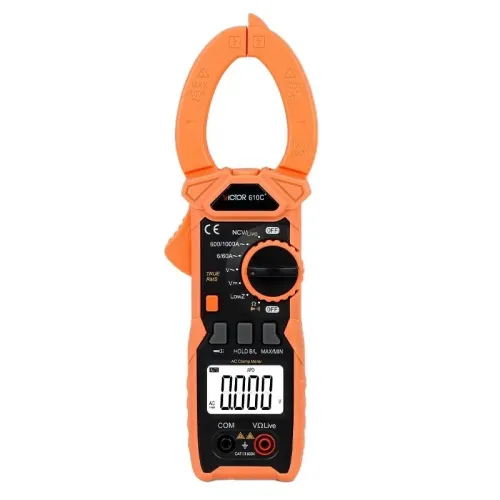

This meter is a handheld automatic range digital multiemter which driven by battery. It can be used to measure such parameters as DCV, ACV, ACA and DCA(610B+ only), Resistance, Continuity Buzzer, Diode, Frequency etc.
GENERAL FEATURE
Displaying:Max. displaying:5999,
Sampling rate: approx. 3 times/second.
Polarity indication:Automatic negative polarity indication
Over range indication:” OL” shown on the LCD
Low battery indication:“ ” appears
Operation environment:0℃～40℃,R.H.< 75%.
Storage environment:-10℃～50℃,R.H.<80%.
Power supply:(Size AAA battery)1.5V×2
Size:230×75×40mm
Weight:about 313g.
Accessories:user’s manual,battery, probes.
|
Specifications |
||||
|
Function |
Range |
610B+ |
610C+ |
|
|
AC V |
6V/60V/600V/750V |
± (1.0%+10) |
± (1.0%+10) |
|
|
Low Z (AC V) |
6V/60V/300V |
± (1.0%+10) |
± (1.0%+10) |
|
|
DC V |
600mV/6V/60V/600V/1000V |
± (0.5%+7) |
± (0.5%+7) |
|
|
AC A |
60A/600A/1000A |
± (4%+10) |
--- |
|
|
6A/60A/600A/1000A |
--- |
± (4%+10) |
||
|
DC A |
60A/600A/1000A |
± (4%+10) |
--- |
|
|
Resistance |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/20MΩ/60MΩ |
± (1.0%+5) |
± (1.0%+5) |
|
|
Capacitance |
1nF/10nF/100nF/1uF/10uF/100uF/1mF/10mF |
± (5.0%+10) |
--- |
|
|
Frequency |
10Hz-10MHz |
± (0.3%+3) |
--- |
|
|
Temperature |
(-20~1000) ℃ / (-4~1832) ℉ |
± (1.5%+15) |
--- |
|
|
Duty cycle |
10.0% -90.0% |
± (0.3%+3) |
--- |
|
|

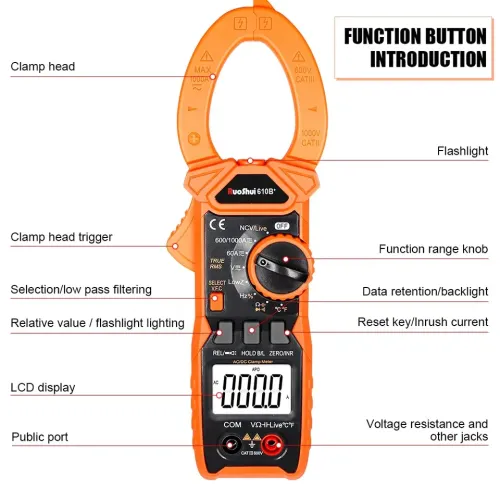

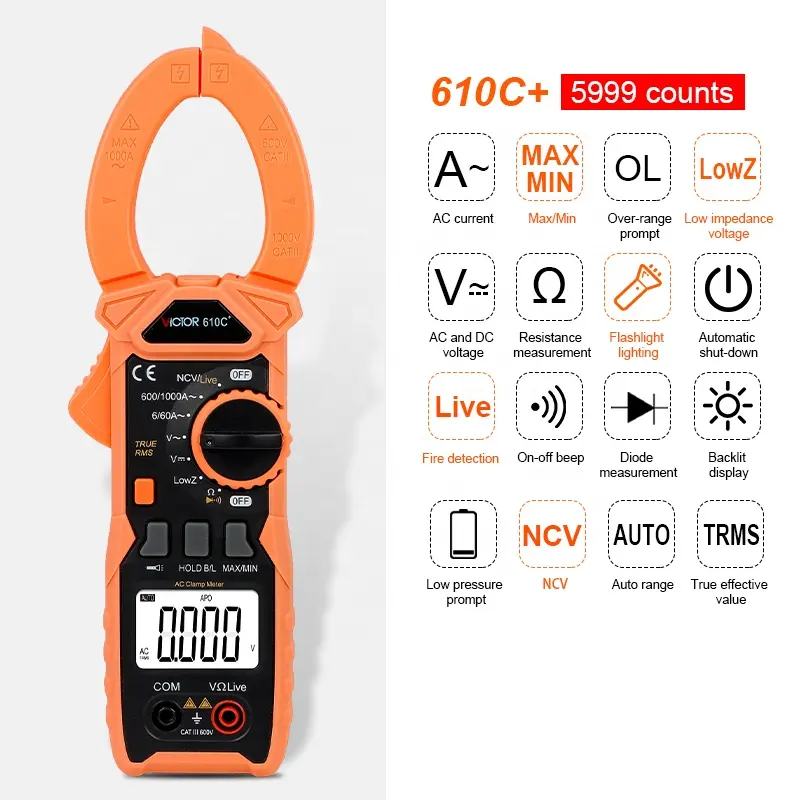

Features |
||||
|
Model |
610B+ |
610C+ |
||
|
Diode &Continuity Test |
√ |
√ |
||
|
Data hold |
√ |
√ |
||
|
Live Wire test |
√ |
√ |
||
|
NCV Measurement |
√ |
√ |
||
|
True RMS |
√ |
√ |
||
|
Low battery indication |
√ |
√ |
||
|
Auto power off |
√ |
√ |
||
|
Overload protection |
√ |
√ |
||
|
Backlight |
√ |
√ |
||
|
Torch light |
√ |
√ |
||
|
Low Z (low impedance AC voltage) |
√ |
√ |
||
|
Relative measurement |
√ |
√ |
||
|
Live Wire test |
√ |
√ |
||
|
Inrush (Surge current test) |
√ |
--- |
||
|
VFC (low-pass filter voltage V. F. C measurement) |
√ |
--- |
||
|
Max Display |
5999 |
5999 |
||
|
Max./Min. |
--- |
Max./ Min. |
||
|
Sampling Rate |
3 times/second |
3 times/second |
||
|
Jaw Size |
40mm |
40mm |
||
|
General Information |
||
|
Model |
610B+ |
610C+ |
|
Power Supply |
AAA,1.5Vx2 |
|
|
Product color |
Black+ Orange |
|
|
Product weight |
313g |
|
|
Product size |
230x75x40mm |
|
|
Standard accessories |
Test leads, battery, instruction manual, pouch, temperature probe (for 610B+) |
|
