1. Overview

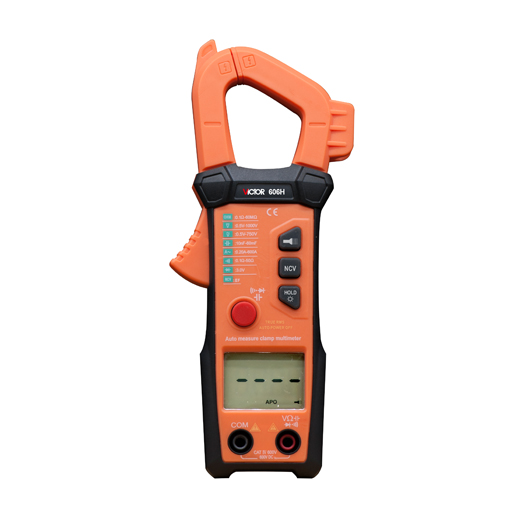

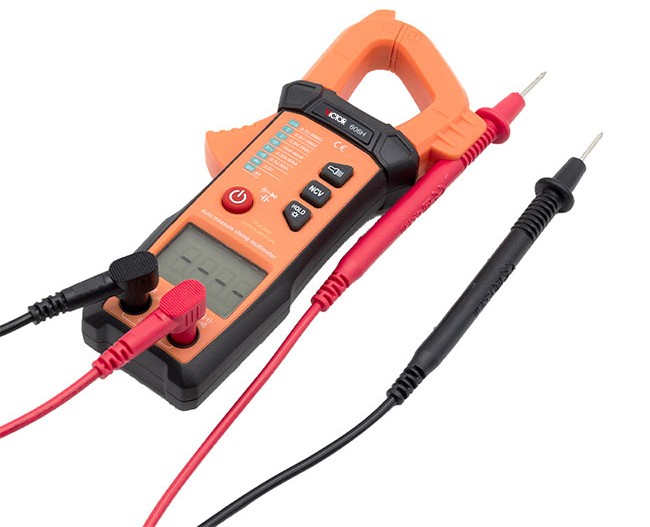

The 6000counts is a pocket-sized 3 5/6-digit RMS auto-scanning digital meter that does not require a dial to select a function. The meter will automatically recognize and measure based on the input voltage/current/resistance/current. It has stable performance, high precision, high reliability, clear reading and overload protection. Driven by AAA 1.5V battery, the instrument adopts large screen LCD display and adopts boost power supply. Even at the edge of 2.3V low battery, it can ensure the high brightness of backlight and flashlight. The meter is easy to carry and is very popular among users. The instrument's backlight can be turned on and off automatically after 15 seconds. This series of instruments can be used to measure DC voltage and AC voltage, AC current 600A, resistance, capacitance, diode, temperature, continuity test, square wave output, frequency measurement and true RMS. It is a superior tool and an ideal tool for laboratories, factories, radio enthusiasts and families.
2. Safety Precautions
This series of instruments is designed in accordance with IEC1010 (Safety Standards promulgated by the International Electrotechnical Commission), please read the safety precautions before use.
1. When measuring voltage, please do not input the limit voltage exceeding the effective value of DC 700V or AC 500V;
2. The voltage below 36V of the current file is a safe voltage;
3.When changing functions and ranges, the test pen should leave the test point;
4. Select the proper function and range, beware of wrong operation, although the series of instruments with a full-range protection, but for safety reasons, you still pay more attention;
3, Characteristics
1. General Characteristics
1-1. Display: liquid crystal display (LCD);
1-2. Maximum display: 5999 (5 5/6) bit automatic polarity display;
1-3. Measurement method: double integral A/D conversion;
1-4. Sampling rate: about 3 times per second;
1-5. Over range display: The highest position shows “OL”;
1-6. Low voltage display
1-7. Working environment:(0~40)℃,relative humidity<80%;

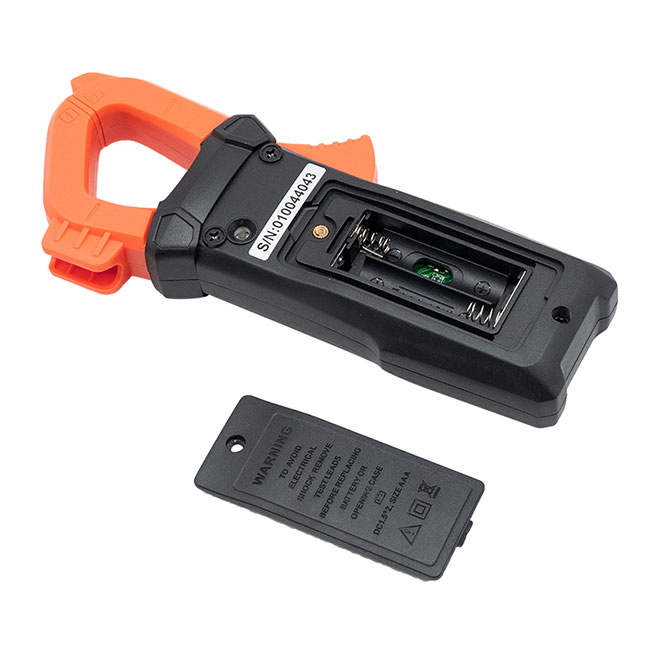

1-8. Power: AAA 2* 1.5V battery;
1-9. Volume (size): 176×67×33mm (L×W×H);
1-10. Weight:about 300g(including 1.5V battery);

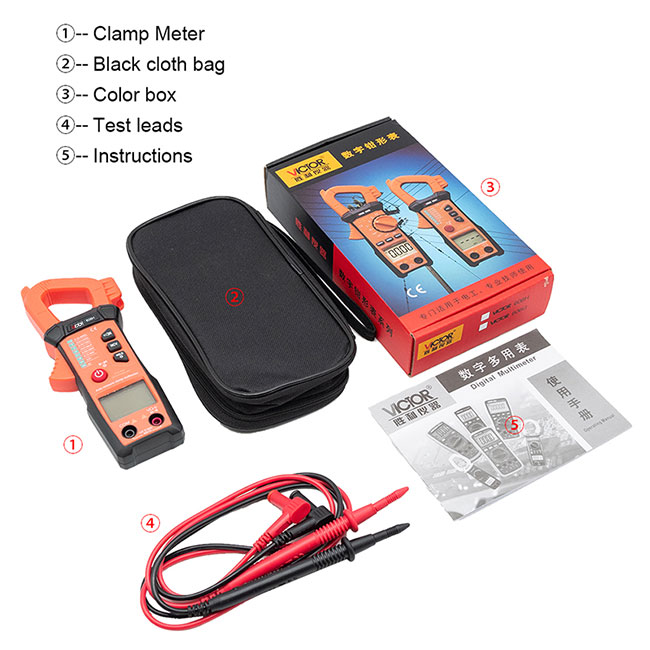

1-11. Attachment: One instruction manual, one certificate, one outer packaging box, one pair of test leads, two AAA1.5V batteries.
2. Technical characteristics
2-1. Accuracy: ±(a% of reading + least significant digit), to ensure accuracy Ambient temperature: (23±5)℃, relative humidity <75%, calibration guarantee period from the date of manufacture for one year.
2-2. Performance (Note "▲" indicates that the meter has this function)
Specifications |
||||
Function |
Range |
606G |
606H |
|
DC V |
6V/60V/600V/1000V |
±(0.5%+3) |
--- |
|
6V/60V/600V/700V |
--- |
±(0.5%+3) |
||
AC V |
6V/60V/600V/700V |
±(0.8+3) |
--- |
|
6V/60V/500V |
--- |
±(0.8+3) |
||
AC A |
6A/60A/600A |
±(2%+30) |
--- |
|
60A/600A |
--- |
±(2%+30) |
||
Resistance |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/40MΩ |
±(0.8%+3) |
--- |
|
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
--- |
±(0.8%+3) |
||
Capacitance |
60nF/600nF/6uF/60uF/600uF/6mF/30mF |
±(3.5%+20) |
--- |
|
10nF/100nF/1uF/10uF/100uF/1mF/10mF/60mF |
--- |
±(3.5%+20) |
||
Frequency |
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
±(0.1%+3) |
--- |
|
Temperature |
-20℃~1000℃ / 0℉~ 1832℉ |
±(0.1%+3) |
--- |
Features |
|||
Model |
606G |
606H |
|
Diode & continuity test |
√ |
√ |
|
True RMS |
√ |
√ |
|
NCV (non-contact voltage detection) |
√ |
√ |
|
Flashlight |
√ |
√ |
|
Data hold |
√ |
√ |
|
Auto power off |
√ |
√ |
|
LCD with backlight |
√ |
√ |
|
Automatically recognize and measure based on the input voltage/current/resistance/current |
--- |
√ | |
Square wave output |
√ |
--- |
|
Operation way |
auto range |
auto range |
|
Max. display |
5999 |
5999 |
|
Jaw open size |
27mm |
27mm |
General Information |
||
Model |
606G |
606H |
Power Supply |
AAA,1.5Vx2 |
|
Product color |
Black+ Orange |
|
Product weight |
300g |
|
Product size |
176x67x32mm |
|
Standard accessories |
Test leads, batteries, manual, temperature probe (only for 606G) |
