Name: Digital Anemometer
Brand: VICTOR & RuoShui
SKU: 816B 816BL
Availability: InStock
Rating: 5 (1 reviews)

Home > Environmental Testers > Wind Speed Meters

Description Specifications Video DOWNLOAD Review

Description

1)Wind speed & temperature measurement 2)Maximum/minimum/average/current wind speed 3)Temperature display in ℃/℉ 4)Wind speed measurement unit: M/s, Km/h, Ft/min, Knots, Mph 5)Data hold 6) LCD backlight 7) Auto/Manual power off 8) Beaufort scale Level display 9) Wind-chill Indication 10) Low battery indication

1) Preparation:Input a 9V battery and connect the fan to the top of the device.

2) Open:Press“”to open the device, after 1 second,LCD shows the current wind speed and the temperature, the backlight on at the same time.

3) Setting the wind speed measurement unit:Press“”after turn on the device, and the“m/s” symbol starts to blink, then press“SEL” can choose the unit fromM/s,Km/h,Ft/min, Knots,Mph, when you get the correct unit, just press“UNIT” to choose it.

4) Setting the Temperature unit:Press the℃/℉ to select the desired temperature unit

5) Data hold:When during the testing, press“HOLD” key can lock the testing value at once, and press“HOLD” key again can return to normal mode.

6) Backlight:When during the testing, press“LED” for 2 seconds, the LCD backlight off, press it again for 2 seconds, the backlight on.

7) Maximum/minimum/average/current wind speed test:After open the device, the fan moves, and the value on the screen is the current wind speed, press“” to choose the maximum/minimum/average/current wind speed.

8) Close the device:Press“” to close the device, or it will auto power off in 1 minute if there’s no any operation.

Specifications

Specifications
Model			816B	816BL
Version			Basic version	Basic version
Air Velocity Range
Unit	Range	Resolution	Accuracy
M/s	0~45	0.1	±3%
Ft/min	0~8800	19
Knots	0~88	0.2
Km/h	0~140	0.3
Mph	0~100	0.2
Temperature Range
Unit	Range	Resolution	Resolution
℃	0℃~45℃	0.2	±2℃
℉	32℉~113℉	0.36	±3.6℉

Features
Model	816B	816BL
Bluetooth interface	---	√
View data on APP	---	√
Wind chill indication	√
Beaufort wind scale display	√
℃/℉ switchable	√
Data hold	√
Max./Min./Ave. Value	√
Backlight	√
Auto/Manual switch off	√
USB connection for the vane and the display	√
Thermometer sensor	NTC Temperature sensor
Operation Condition	-10℃~50℃(14℉~122℉) /≤90%RH

General Information
Model	816B	816BL
Power Supply	9V 6F22 battery
Product Size	Main Unit:145mmx72mmx35mm Vane:172mmx65mmx29mm
Product Weight	270g

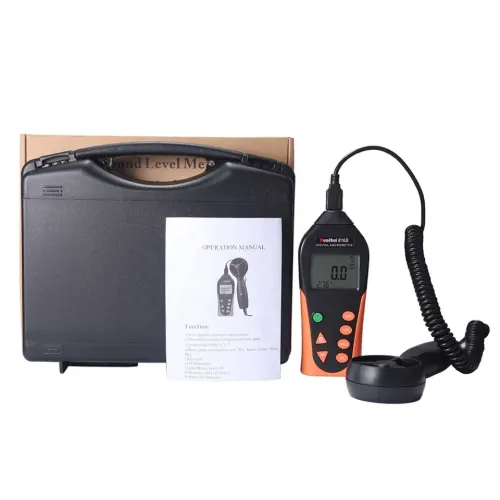

Standard Accessories	Manual, battery, tool case
