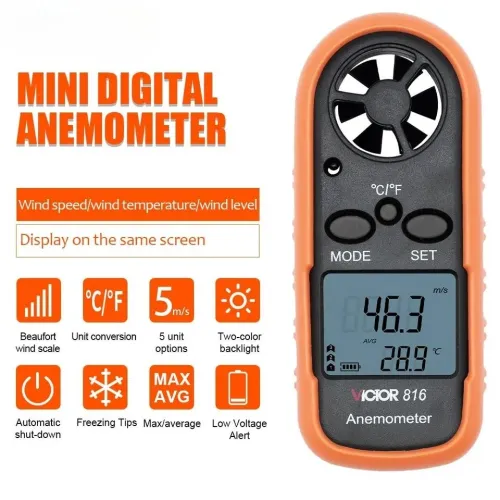

Digital Anemometer

Function:

1) Wind speed & temperature measurement

2) Maximum/average/current wind speed

3) Temperature display in ℃/℉

4) Wind speed measurement unit: M/s, Km/h, Ft/min, Knots, Mph

5) Beaufort scale Level display

6) LCD backlight

7) Auto/Manual power off

8) Wind-chill Indication

9) Low battery indication

Operation:

1) Starting up: press ”MODE” for 2 seconds to turn on the device. LCD will display wind speed, temperature, battery icon. Meanwhile, LCD backlight will be turned on for 8 seconds.

2) Setting different wind speed measurement unit: press “MODE” for 3 seconds until “m/s” starts to blink, temperature & wind speed vanishes. Press “SET” to select desired measurement unit. To confirm the desired measurement device by pressing “MODE”. After powering off, the above settings

will be saved unless replacement battery.

Wind speed measurement unit: M/s, Km/h, Ft/min, Knots, Mph

Measure wind speed in: Current/Max/Average

3) Temperature Unit: (℃/℉)

Press the ℃/℉ to select the desired temperature unit

4) Backlight: press any key will activate LCD backlight for 8 seconds

5) Measurement: when the wind vane (impeller) runs, LCD will display instant wind speed, temperature and level. When temperature below 0 ℃, wind chill symbol will shown on the LCD.

7) Power off: long press ‘’SET” to turn off the unit.

8) Auto power off: Being Power off automatically in 5 minutes without any operations

9) Replacement battery: LCD display, you need to replace battery promptly.
