Description
Coating Thickness Gauge is a highly intelligent and precise instrument used to quickly and accurately measure thickness of coating or plating on almost all kinds of metal surface. It not only indicates thickness of coating or plating but also automatically identifies the base material. It is applicable to measurenon-magnetic painting,ceramic, enamel, plastic, rubber coating on magnetic base materials such as iron and steel , non- ferrous metal plating such as nickel & chromium, anticorrosive coating, non- conductive painting, plastic coating and anodic oxide film on non-magnetic conductive devices.
Specifications
|
Specifications |
|
|
Model |
852E |
|
Sensor type |
Separate Fe/NFe 2 in 1 Type |
|
Range |
0~50mil; 0~1250μm |
|
Resolution |
1um, 0.1mils |
|
Accuracy |
± (3%H+2μm) |
|
Response Time |
0.5s |
|
Features |
|
|
Model |
852E |
|
Flip Display |
√ |
|
Um/Micron selectable |
√ |
|
zero adjustment |
√ |
|
Auto detect substrate material |
√ |
|
Single/Continuous Measurement |
√ |
|
Max/Min/Ave/Deviation |
√ |
|
Auto power on & off |
√ |
|
Backlight |
√ |
|
Low Battery Indication |
√ |
|
Single/Continuous Measurement |
√ |
|
LCD screen |
TFT 160* 128 |
|
Multi-points calibration |
5 points |
|
Data store |
99 groups |
|
Language |
English |
|
General Information |
|
|
Model |
852E |
|
Power Supply |
1.5V, AAA x2pcs |
|
Product Size |
100*52*29mm |
|
Product weight |
68g |
|

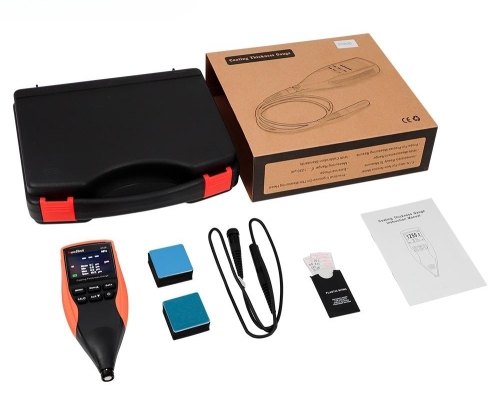

Standard Accessories |
Calibration foils, substrate blocks, manual, tool case, Fe/ NFe probe |
Video
DOWNLOAD
852E User's Manual
