This meter is a handheld automatic range digital multiemter which driven by battery. It can be used to measure such parameters as DCV, ACV, DCA and ACA, Resistance, Continuity Buzzer, Diode, Frequency etc.
2. SAFETY OPERATION RULE
The meter’s design is in accordance with the CE certification, meets the standard of IEC61010. Read the following before operation.
2-1. Input over range is prohibited in each range during the test.
2-2. Place the function knob to the proper range before measurement, in case damage the meter, do not switch the range during measurement.
2-3. Voltage less than 36V is safety voltage. To avoid electric shock, be careful when measuring voltage higher than 36V DC, 25V AC.
2-4. Don’t input voltage under the resistance, capacitance, diode, continuity test, frequency measurement.
|
Specification |
|||||||
|
Function |
Range |
606+ |
606A+ |
606B+ |
606C+ |
||
|
DC V |
200mV/2V/20V/200V/600V |
± (0.5%+7) |
--- |
--- |
--- |
||
|
600mV/6V/60V/600V |
--- |
± (0.5%+7) |
± (0.5%+7) |
± (0.5%+7) |
|||
|
AC V |
2V/20V/200V/600V |
± (0.8%+10) |
--- |
--- |
--- |
||
|
6V/60V/600V |
--- |
± (0.8%+10) |
± (0.8%+10) |
± (0.8%+10) |
|||
|
LOW INPEDANCE ACV |
2V/20V/200V/300V |
± (0.8%+10) |
--- |
--- |
--- |
||
|
6V/60V/300V |
--- |
± (0.8%+10) |
± (0.8%+10) |
± (1.0%+10) |
|||
|
DC A |
60A/600A |
--- |
--- |
--- |
±(4.0%+10) |
||
|
AC A
|
2A/20A/200A/600A |
±(4.0%+15) |
--- |
--- |
--- |
||
|
6A/60A/600A |
--- |
±(4.0%+15) |
±(4.0%+15) |
--- |
|||
|
60A/600A |
--- |
--- |
--- |
±(4.0%+10) |
|||
|
Resistance |
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ |
± (1.0%+5) |
--- |
--- |
--- |
||
|
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/20MΩ/60MΩ |
--- |
± (1.0%+5) |
± (1.0%+5) |
± (1.0%+5) |
|||
|
CAP |
6nF/60nF/6uF/60uF/100uF/600uF/6mF |
--- |
± (5.0%+10) |
± (5.0%+10) |
± (5.0%+10) |
||
|
Frequency |
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
--- |
± (5.0%+10) |
± (0.3%+3) |
± (0.3%+3) |
||
|
Temperature |
-20℃~1000℃/ -4℉~1832℉ |
--- |
--- |
±(1.5%+15) |
±(1.5%+15) |
||
|

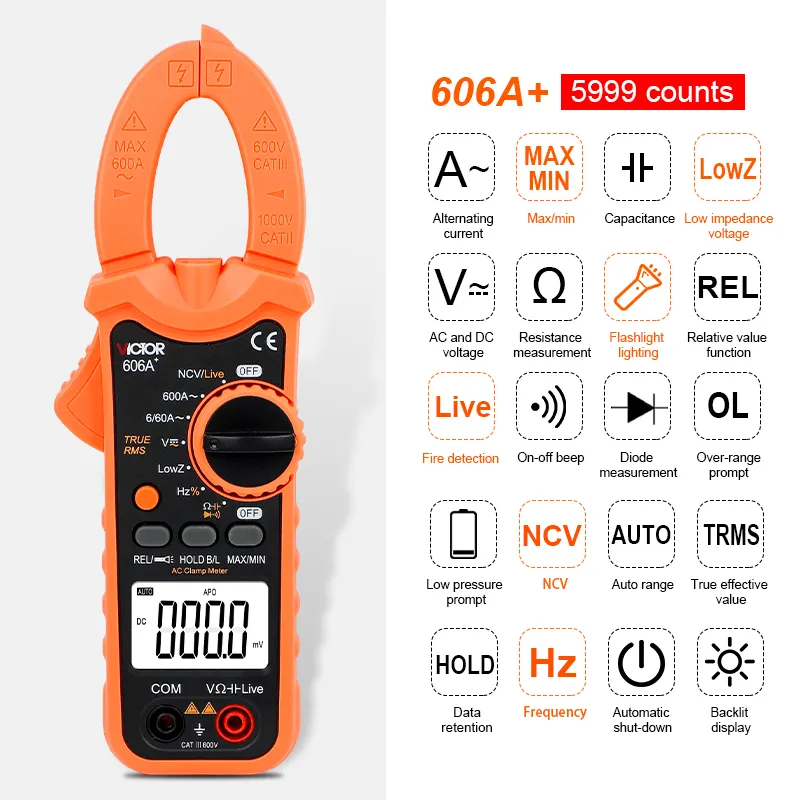

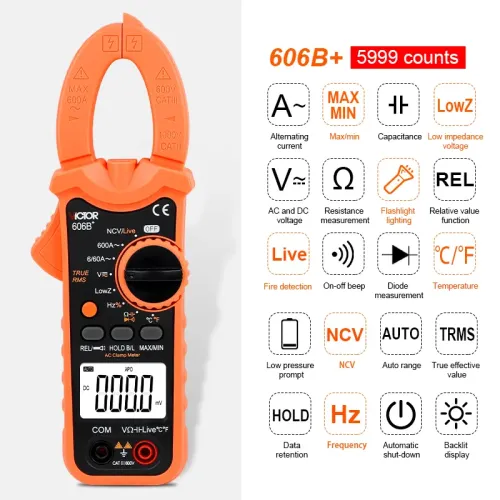

Features |
||||
|
Model |
606+ |
606A+ |
606B+ | 606C+ |
|
Diode & Continuity Test |
√ |
√ |
√ |
√ |
|
Data hold |
√ |
√ |
√ |
√ |
|
NCV |
√ |
√ |
√ |
√ |
|
Flash light |
√ |
√ |
√ |
√ |
|
Live wire test |
√ |
√ |
√ |
√ |
|
Low battery indication |
√ |
√ |
√ |
√ |
|
True RMS |
√ |
√ |
√ |
√ |
|
Low Z |
√ |
√ |
√ |
√ |
|
Auto power off |
√ |
√ |
√ |
√ |
|
Unit symbol |
√ | √ |
√ |
√ |
|
INRUSH current |
--- |
--- |
--- |
√ |
|
VFC |
--- |
--- |
--- |
√ |
|
Relative measurement |
--- |
√ |
√ |
√ |
|
Temperature test |
--- |
--- |
√ |
√ |
|
Over-range indication |
√ |
√ |
√ |
√ |
|
Max/Min |
Max. |
Max./Min |
Max./Min |
--- |
|

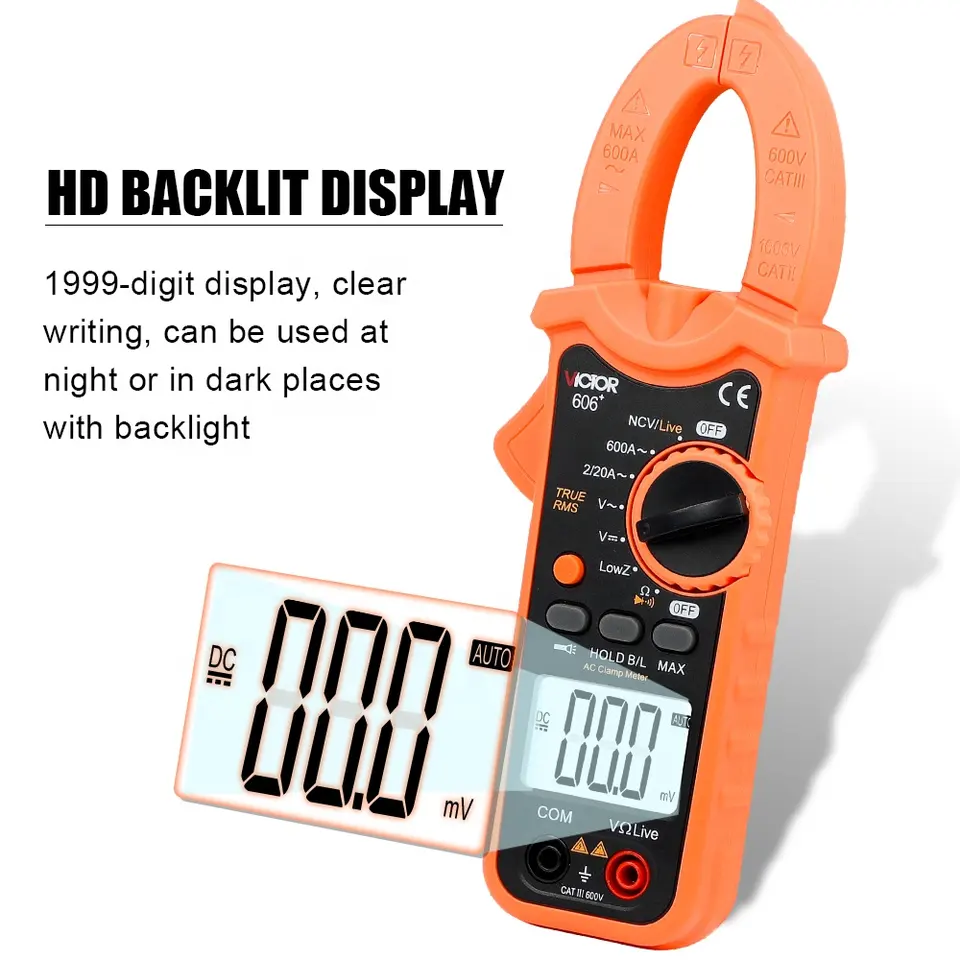

Max display |
1999 |
5999 |
5999 |
5999 |
|
Clamp open size |
35mm |
35mm |
35mm |
35mm |
|
Sampling rate |
10MΩ |
10MΩ |
10MΩ |
10MΩ |
|
General Information |
||||
| Model | 606+ | 606A+ |
606B+ | 606C+ |
| Power Supply |
AAA,1.5Vx2 |
|||
|
Product color |
Black+ Orange |
|||
|
Product weight |
236g |
|||
|
Product size |
207×72×39mm |
|||
|
Standard accessories |
Manual, batteries, testing leads, temperature probe (606B+,606C+) ,pouch |
|||
606+ User's Manual
