Description

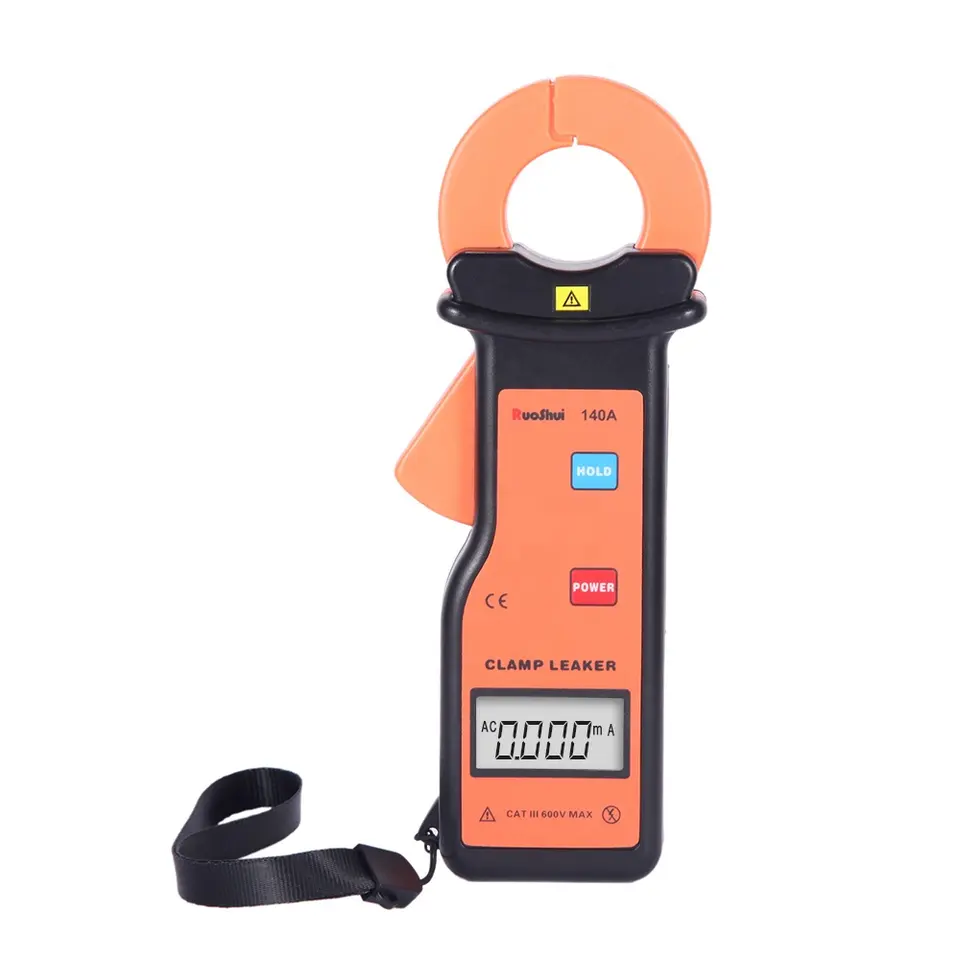

High Accuracy Clamp Leaker is specially designed for measurement of AC leakage current; by adopting up-to-date CT technology and digital integration technology, it is a product with relatively small size, high accuracy and perfect function compared with similar leakers in the world. The leaker could be widely applied in those fields as electricity, communications, meteorology, railroad, oilfield, construction, measurement, scientific & research teaching institutes, industrial and mining establishments.Clamp core of this High Accuracy Clamp Leaker adopts special alloy; in addition, with utilization of magnetic shielding technology, it is almost free from influences of external magnetic field so as to ensure high precision, high stability and high reliability of perennial continuous measurement.

This High Accuracy Clamp Leaker obtains one RS232 interface. With the help of the software that we provide, many functions are available. Forexample, on-line monitoring, historical data inquiry，active curve drawing,indication of max, min and average value, alarm setting and indication. Thereare also functions like saving to documents and printing when connected to PC.

This High Accuracy Clamp Leaker could be used for AC Line current measurement and on-line current measurement with voltage lower thanAC600V;it also have those functions as peaking holding, data holding and data storage; with convenient use, it is an essential tool for electrician safety testing.

Specifications

Specifications
Model	140A
Function	AC leakage current
	AC current
	On-line measurement
Range	0.001mA~60.00A(50/60Hz)
Resolution	0.001mA
Accuracy	±1.5% reading ±5, (at 23℃±3℃, <70%RH)
Line voltage	Line Voltage< AC600V
Sampling Rate	2 times/s

Features
Model	140A
LCD size	32mmx15mm
Clamp size	25mmx30mm
Data Hold	√
Peak Hold	√
Data Storage	99 groups
Interface	RS232
Over range indication	√
Auto Off	Idle for 5 minutes
Low Battery Indication	√
Rated Power	5mW
Working Condition	-0～40℃, below 80%RH
Storage Condition	-10～60℃, below 70%RH
Insulations	AC2kV/rms (between core and box)
Safety	IEC1010-1, IEC1010-2-032, pollution 2, CATIII (600V)

General Information
Model	140A
Power Supply	9V battery
Product Size	70mmx175mmx38mm
Product Weight	210g
Standard Accessories	manual, pouch, battery, software CD, RS232 cable
