It can be used both in the laboratory in network operation, and in the mobile service in battery mode.
In this way, the device offers a variety of applications.
The useful additional features such as True RMS measurement (True RMS), relative value measurement, MIN/MAX/AVG and DATA hold function round off the versatility of this device.
With the optical USB interface and computer software the unit can display, draw record all test processes on a computer, the graphic software has an exclusive dynamic scale, which can describe very small changes of electric parameters.
|
Specifications |
|||
|
Model |
Range |
8145C |
|
|
DC V |
200mV/2V/20V/200V/1000V |
±(0.05%+4) |
|
|
AC V |
200mV/2V/20V/200V/750V |
±(0.5%+40) |
|
|
DC A |
0.2mA/2mA/20mA/200mA/10A |
±(0.2%+10) |
|
|
AC A |
0.2mA/2mA/20mA/200mA/10A |
±(0.8%+30) |
|
|
Resistance |
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/60MΩ |
±(0.2%+5) |
|
|
Capacitance |
10nF/100nF/1000nF/10uF/100uF/1000uF |
±(5%+5) |
|
|
Frequency |
10Hz/100Hz/1000Hz/10KHz/100KHz/1000KHz/10MHz |
±(0.02%+4) |
|
|
Thermocouple |
（-200.0～1372.0）°C/（-328.0～2501.6）°F |
±(0.5%+5°C) |
|
|
Features |
|
|
Model |
8145C |
|
True RMS |
√ |
|
Diode &Continuity |
√ |
|
MAX/MIN/AVG |
√ |
|
Relative value measurement |
√ |
|
Data Hold |
√ |
|
The reference junction compensation |
√ |
|
°C/°F selectable |
√ |
|
SCPI (Remote Control) |
√ |
|
Sample Rate |
Fast/Slow |
|
Operation Way |
Auto / Manual Range |
|
Bandwidth |
1kHz |
|
The duty ratio |
10%～90% |
|
Online communication |
USB |
|
Max display |
22000 |
|
Input impedance |
10MΩ |
|
Display |
LCD with Backlight |
|
General Information |
||
|
Model |
8145C |
|
|

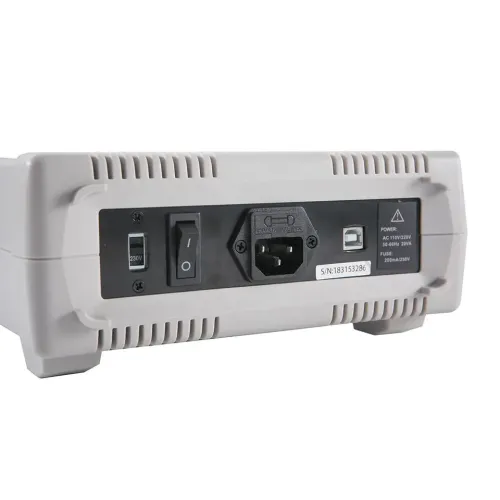

Power supply |
220V±10%ACor110V±10%AC,50Hzor60Hz,About3W |
|
|
Product color |
White |
|
|
Product weight |
2000g |
|
|
Product size |
245×220×82mm |
|
|
Standard accessories |
Manual, test leads, power cable, software CD, USB cable |
|
