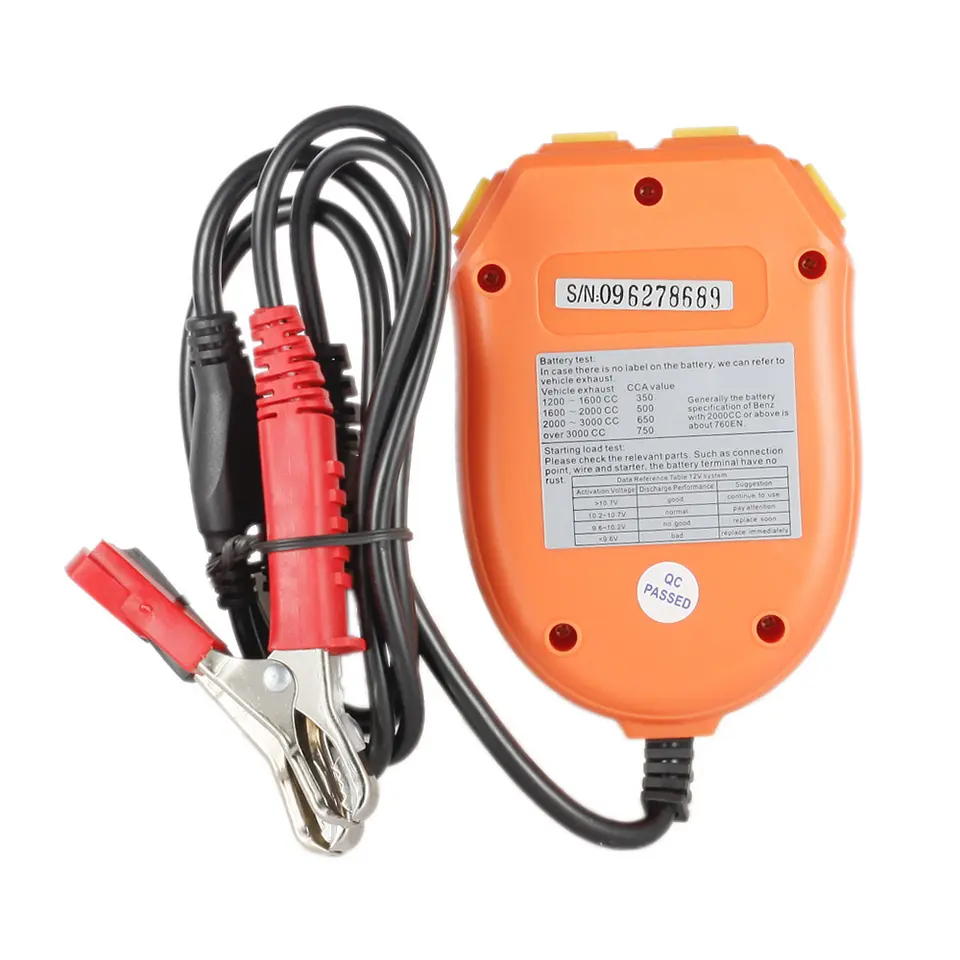

Description
This battery storage tester is used for activated style lead-acid storage battery, along with checking the following conditions of the battery, starting up, charging, and electrical loading. With great design, easy operation, precise reading,complete functions, this tester supply the readings by a large LCD and hints by sound and light when testing. Precise circuit and strong digital processing unit make it complete collection of a series of complicated data and figure out every test data, which availably by 4-wire Kelvin test connection. Besides it strengthens input protection inside , in order to prevent suchsituations as polar reversal connection , over-high voltage input, poor contact of the test clamps and so on. That makes sure safer and more convenient when testing.
This tester is the best tool for battery sales, vehicle repair and condition check of all kinds of lead-acid batteries that used in equipment system associated with lead-acid battery.
Specifications
Specifications |
|
Model |
3012/3013 |
Battery type |
12V storage battery |
CCA (Cold Cranking Amps) |
100~1700 |
IEC |
100~1000 |
EN |
100~1700 |
DIN |
100~1000 |
Working voltage |
9V ~ 18V |
Internal resistance |
0.00~99.99mΩ |
Storage battery test |
√ |
Features |
||
Model |
3012 |
3013 |
Indication |
--- |
3-Color LED lights |
Display |
LCD |
LCD |
Test leads length |
850mm |
850mm |
Overvoltage protection |
√ |
√ |
Polarity re verse protection |
√ |
√ |
General Information |
|
Model |
3012/3013 |
Product Size |
140mm*80mm*30mm |
Product Weight |
300g |
Standard Accessories |
Manual |
