Description
- High-Precision DC Voltage Measurement – Accuracy up to ±(0.05%+5) with 0.01mV resolution for sensitive applications.

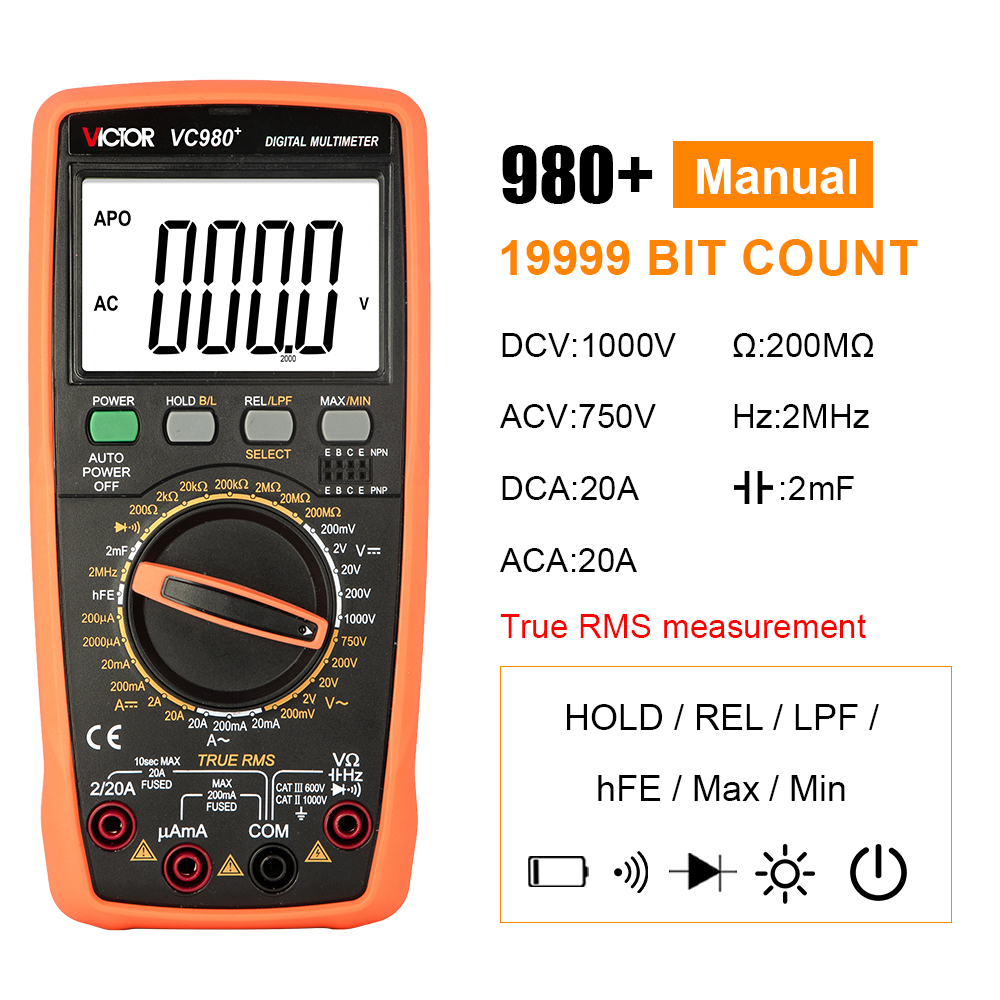

- True RMS AC Measurements – Accurately measures distorted or non-sinusoidal waveforms (VC980+).
- Wide Frequency Response – Up to 20kHz for AC voltage and current, ensuring reliable readings across varied signals.

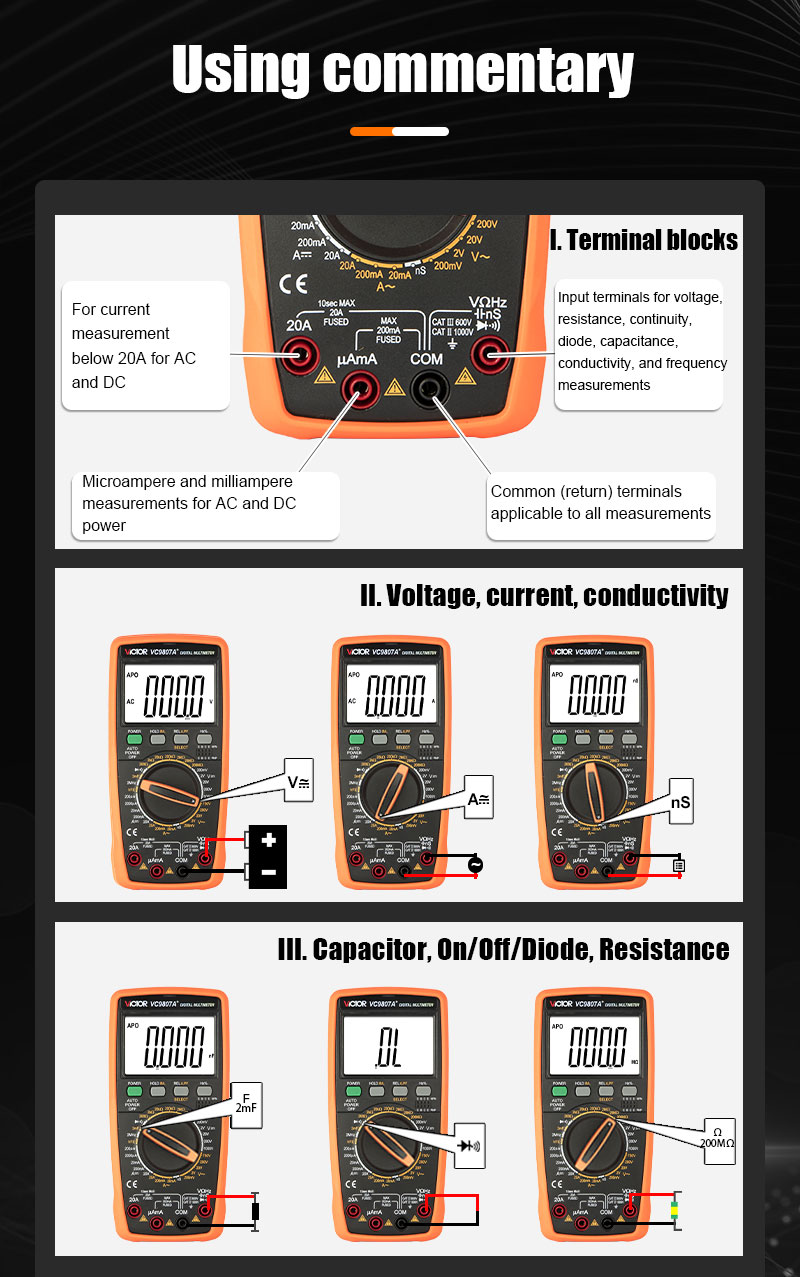

- Comprehensive Measurement Functions – Supports DC/AC voltage and current, resistance, capacitance, frequency, duty cycle, and continuity.
- High Resolution for Capacitance – Measures down to 0.001nF resolution, ideal for precision capacitor testing.

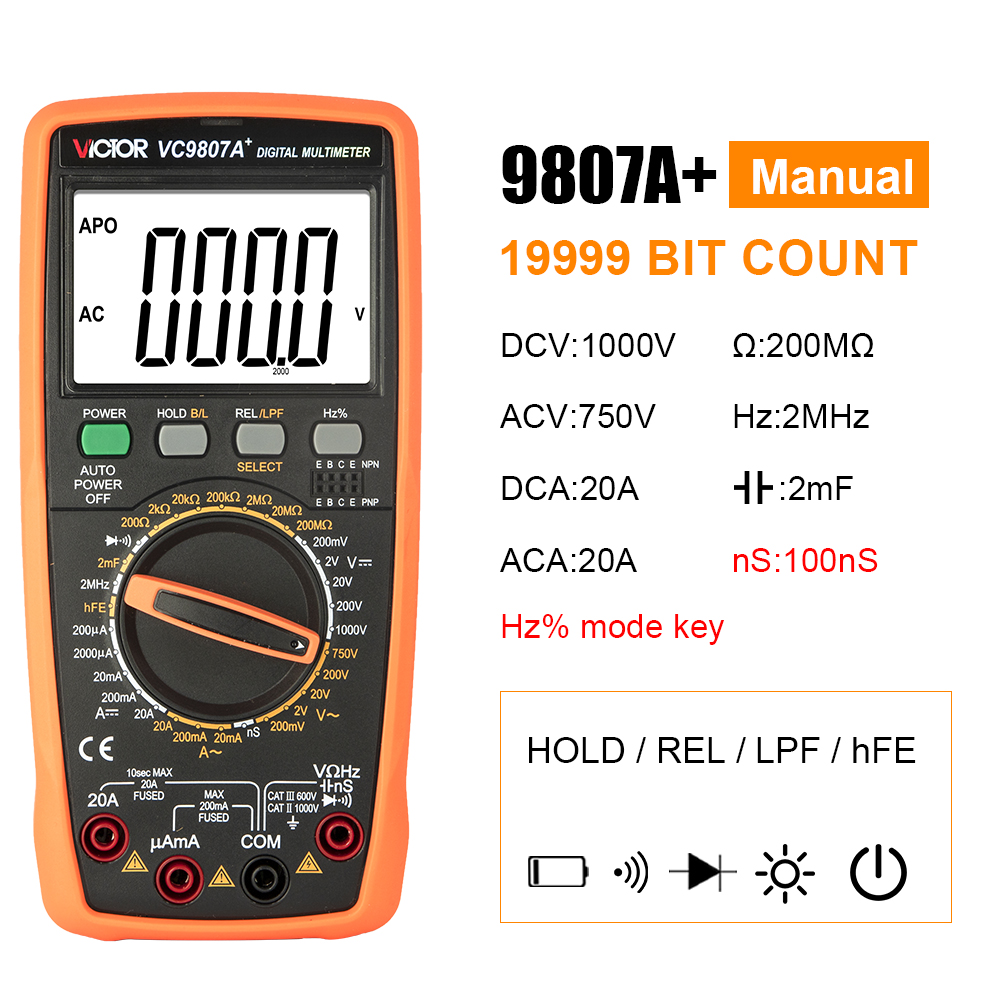

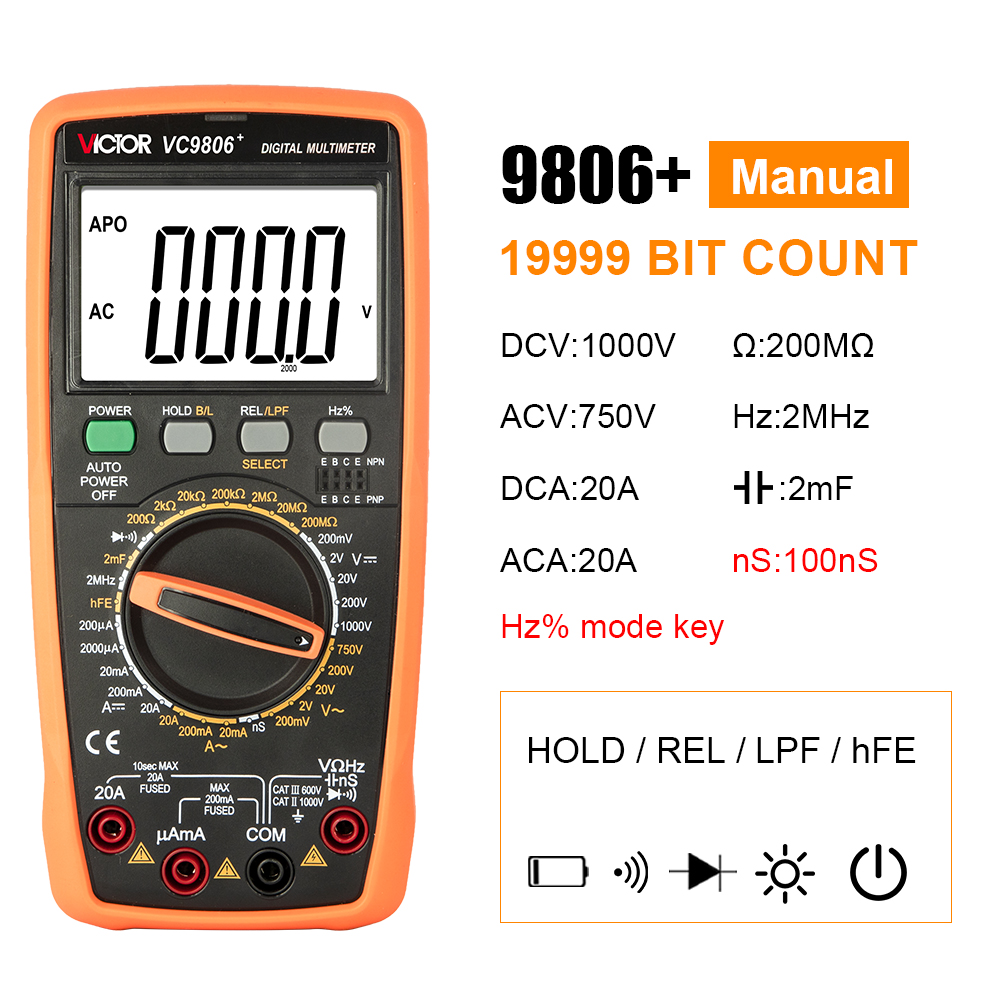

- Conductivity Measurement – Available on VC9806+/9807A+ models.
- Wide Range for Current & Resistance – Handles up to 20A current and up to 200MΩ resistance.
- Duty Cycle Function – Measures 5.0%~95.0% duty cycle for troubleshooting PWM signals.
- Reliable & Versatile – Suitable for professional engineers, technicians, and hobbyists demanding accuracy and durability.

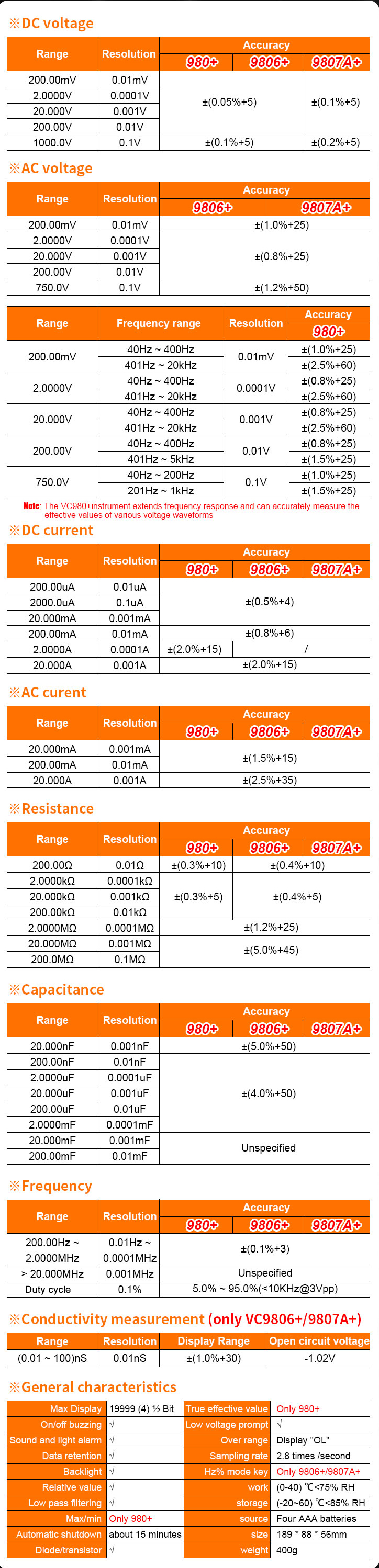

Specifications
Video
DOWNLOAD
9806+ User's Manual
